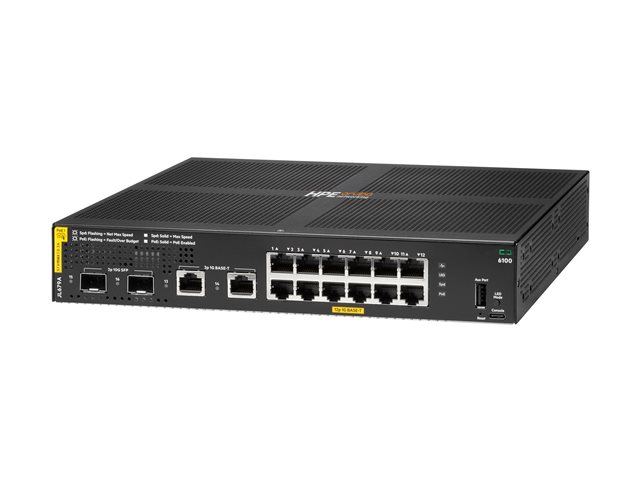

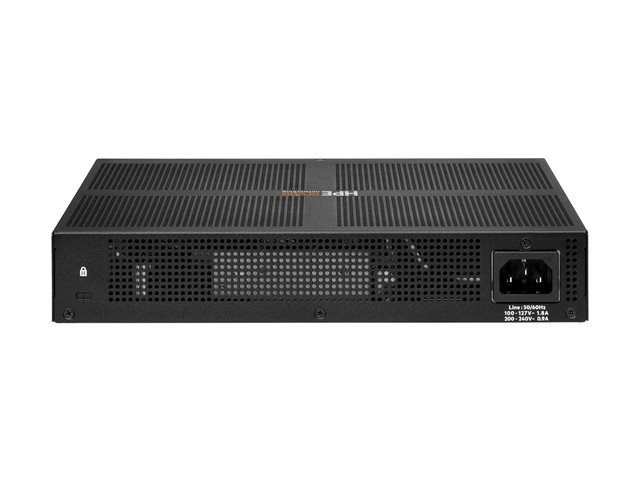

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch

Name: HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch
Brand: HPE
SKU: WCEJL679A
Price: 1115.38 EUR
Availability: InStock

View all HPE Network Switches - Visit the HPE Store (JL679A) - (WCEJL679A)

Model: HPE Aruba

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch - switch - 16 ports - Managed - rack-mountable

Entry Level Aruba CX Access Layer Switches
Performance and Power
Simplified Configuration and Management

FREE Delivery on orders over €250

23 Available to Ship
Order within 7Hrs 49Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€1508.96~~

€1115.38 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.

Features Summary

Entry Level Aruba CX Access Layer Switches
The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
Using Aruba AOS-CX operating system across HPE Aruba Networking CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Software-defined ready with REST APIs for fine-grained programmability of network tasks.

Specification Summary

Product Description

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch - switch - 16 ports - Managed - rack-mountable

Device Type

Switch - 16 ports - Managed

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T

Power Over Ethernet (PoE)

PoE+

PoE Budget

139 W

Performance

Switching capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs

Capacity

Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256

MAC Address Table Size

8192 entries

Routing Protocol

IGMPv2, IGMPv3

Features

DNS client, VLAN support, MSTP support, Rapid Reconfiguration of Spanning Tree (RSTP), LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support, fanless

Compliant Standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

25.4 cm x 25.5 cm x 4.39 cm

Weight

2.78 kg

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0190017348933

General

Device Type

Switch - 16 ports - Managed

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T

Power Over Ethernet (PoE)

PoE+

PoE Budget

139 W

Performance

Switching capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs

Capacity

MAC Address Table Size

8192 entries

Routing Protocol

IGMPv2, IGMPv3

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS

Features

Compliant Standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

Processor

1 x ARM A9: 1.016 GHz

RAM

4 GB DDR3 SDRAM

Flash Memory

16 GB

Expansion / Connectivity

Interfaces

12 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A ¦ 2 x Gigabit LAN

Power

Power Device

Internal power supply

Power Provided

165 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

16 Watt

Miscellaneous

Compliant Standards

IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674

Dimensions & Weight

Width

25.4 cm

Depth

25.5 cm

Height

4.39 cm

Weight

2.78 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

15 - 95% (non-condensing)

Humidity Range Storage

15 - 90% (non-condensing)
