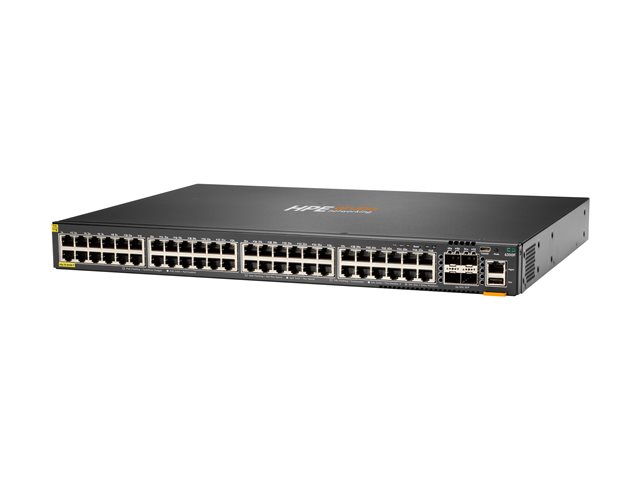

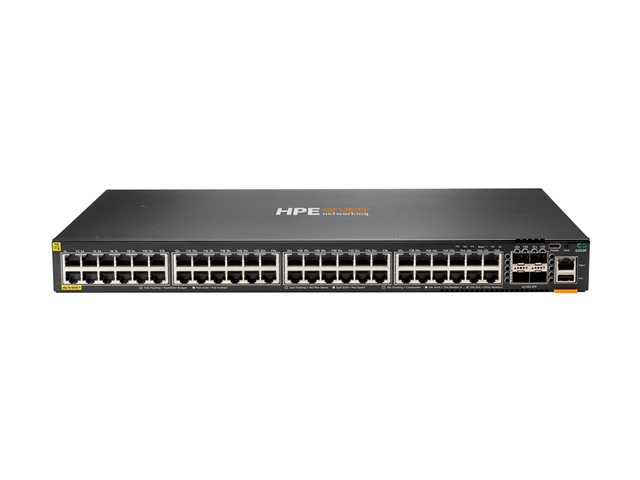

Device Type
Switch - 48 ports - L3 - Managed - stackable

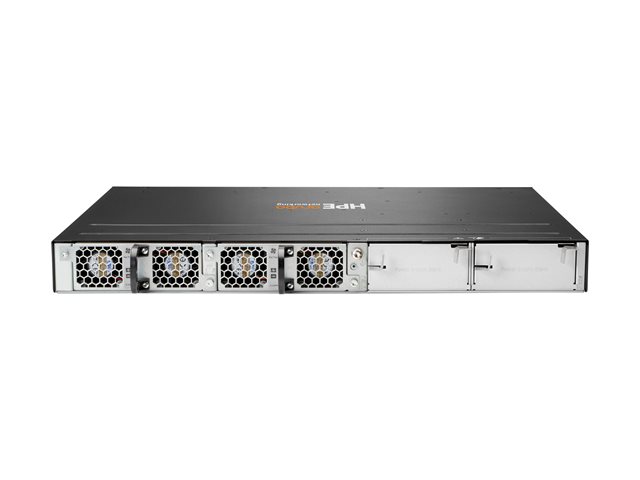

Enclosure Type
Front to back airflow rack-mountable 1U
Ports
48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 496 Gbps ¦ Switching throughput: 369 Mpps ¦ 1 Gbps average latency (64-byte packets): 2.28 µs ¦ 10 Gbps average latency (64-byte packets): 1.46 µs ¦ 25 Gbps average latency (64-byte packets): 1.9 µs ¦ 50 Gbps average latency (64-byte packets): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity
Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, BGP-4, BGP, IGMP, OSPFv2, PIM-DM, IGMPv3, MSDP, MLDv2, MLD, CIDR
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, XRMON, SFTP
Encryption Algorithm
SSL, FIPS 140-2
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, port mirroring, DiffServ support, IPv6 support, sFlow, VRRP support, MSTP support, QoS, MLD snooping, TPM, UDLD, DWRR, LLDP support, fan tray, SNMP trap, MIB, VRF, MVRP, NDP, CoS, SP, tagged VLAN, 8MB packet buffer, 802.1x authentication, ToS, BPDU, ICMP IRDP, VXLAN, Link Aggregation, EVPN, NTP, LLDP-MED, DoS protection, Rapid Reconfiguration of Spanning Tree (RSTP), CDP, BSR Mechanism
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3cc, ITU-T Y.1344, IEEE 802.3cd
Processor
1 x ARM Cortex-A72: 1.8 GHz
Interfaces
48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 50Gbit LAN SFP56 ¦ 1 x console (USB) Type C ¦ 1 x USB Type A
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50 - 60 Hz)
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55024:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, CISPR 35, EN 55024:2010 Class A, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
