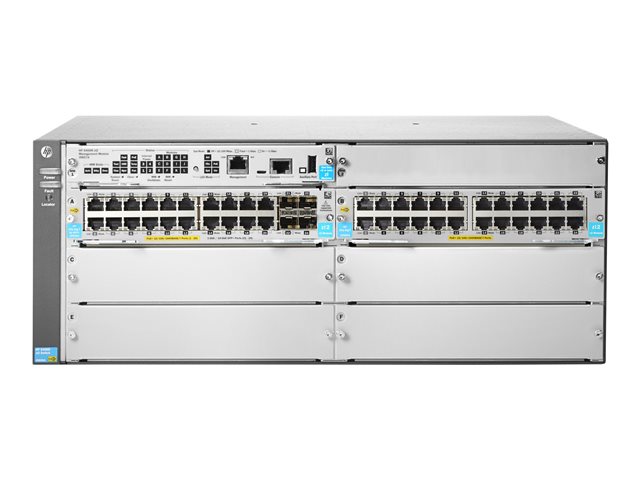

Device Type
Switch - 44 ports - Managed
Enclosure Type
Rack-mountable 4U
Ports
44 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Routing/switching capacity: 960 Gbps ¦ Throughput: up to 571.4 Mpps ¦ Switching fabric bandwidth: 1015 Gbps
Capacity
IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size
64K entries
Routing Protocol
RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Flow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, STP support, RSTP support, MSTP support, tunnelling, ACL support, QoS, MLD snooping, NSR, bandwidth control, STP Root Guard, UDLD, Rapid PVST+, IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, MIB, dynamic ARP protection, DHCP protection, dual firmware images, CoS, sFlow v5, GVRP, ToS, MACsec support
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor
1 x Freescale P2020: 1.2 GHz
Interfaces
44 x 1000Base-T RJ-45 ¦ 8 x Gigabit / 10Gbit LAN SFP+
Expansion Slots
6 (total) / 4 (free) x Expansion Slot ¦ 1 (total) / 0 (free) x SD Memory Card
Installed Modules Qty (Max)
2 (installed) / 6 (max)
Power Device
Internal power supply (not installed)
Included Accessories
Fan tray
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950
Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
