Range/Series Overview

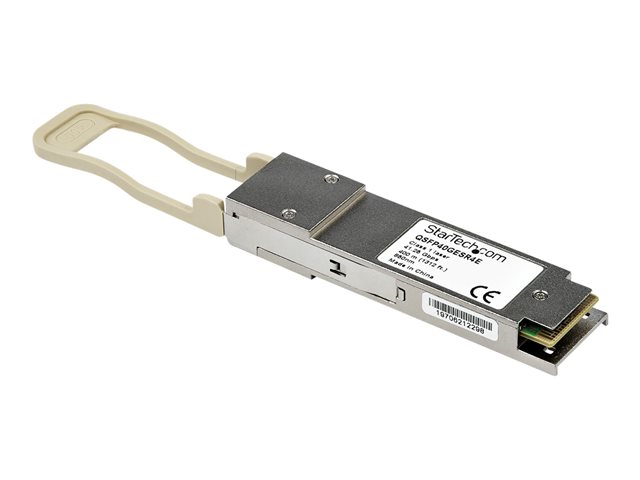

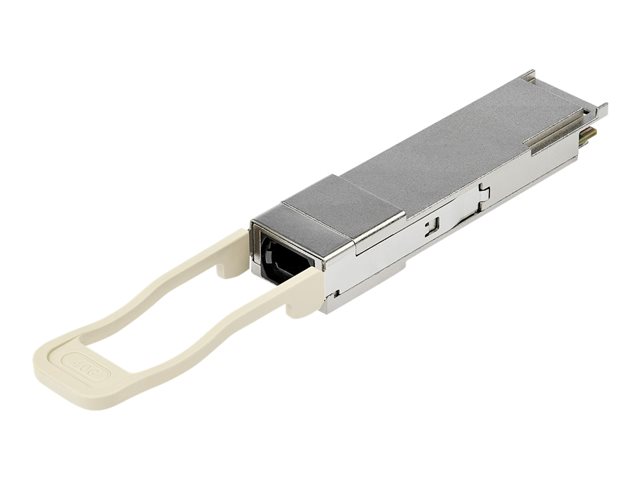

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty. The JG325A-ST is a HP JG325B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 40 Gbps
Type: Multi Mode Fiber

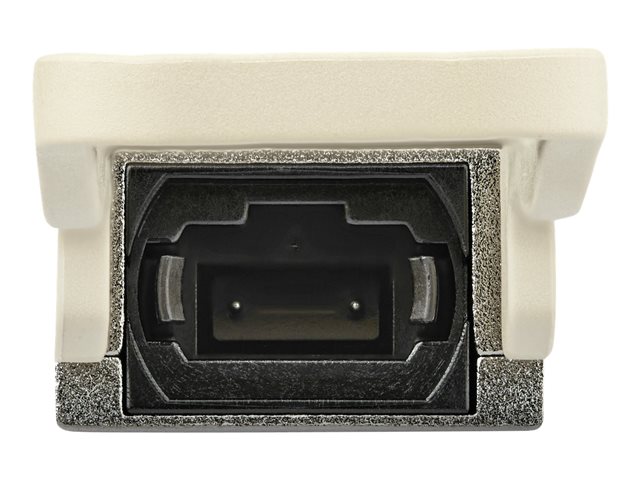

Connection Type: MPO Connector
Maximum Transfer Distance: 150 m (492 ft)
MTBF: 244,610,583 hours
Power Consumption: Low power consumption
Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Features Summary
- Reliable connectivity
The module utilizes an MPO multimode connector, ensuring strong and stable connections for various networking applications. - High data transfer capacity
With a data transfer rate of 40 Gbps, it supports demanding bandwidth requirements for efficient data handling. - Versatile compatibility
Designed in accordance with MSA standards, this transceiver module is easily integrated into different networking environments. - Enhanced monitoring capabilities
Featuring Digital Diagnostics Monitoring (DDM), the module allows users to track metrics and ensure optimal performance. - Reliability
With an MTBF of 244,610,583 hours, this module reduces downtime, providing a dependable networking solution.
Specification Summary
Product Description
Startech HPE JG325A Compatible QSFP+ Module, 40GBASE-SR4, 40GbE Multimode Fiber Optic Transceiver, 40GE Gigabit Ethernet QSFP+, MPO 150m, 850nm, DDM, HPE 5900AF, 11908, FlexFabric - Lifetime Warranty (JG325A-ST) - QSFP+ transceiver module - 40GbE
Device Type
QSFP+ transceiver module - MPO multi-mode
Form Factor
Plug-in module
Data Transfer Rate
40 Gbps
Optical Wave Length
850 nm
Max Transfer Distance
150 m
OEM Manufacturer Equivalent Part Number
HP JG325A
Dimensions (WxDxH)
12.2 cm x 1.86 cm x 0.85 cm
Manufacturer Warranty
Limited lifetime warranty
Designed For
HPE 5900AF-48G-4XG-2QSFP+ Switch, 5900AF-48XG-4QSFP+ Switch, 5900AF-48XGT-4QSFP+ Switch; FlexFabric 1.92 Tbps Type D Fabric Module, 11908-V Switch Chassis
