Startech HPE JD094B-BX-U Compatible SFP+ Module, 1

Images Manuals

Startech HPE JD094B-BX-U Compatible SFP+ Module, 10GBASE-BX, 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+, LC 10km, HPE 5900, 12

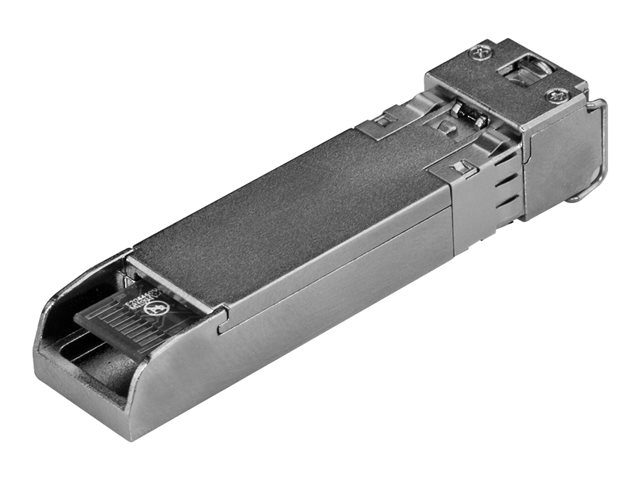

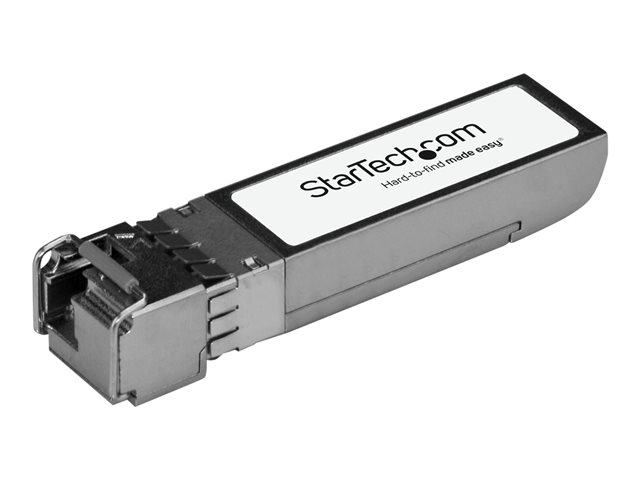

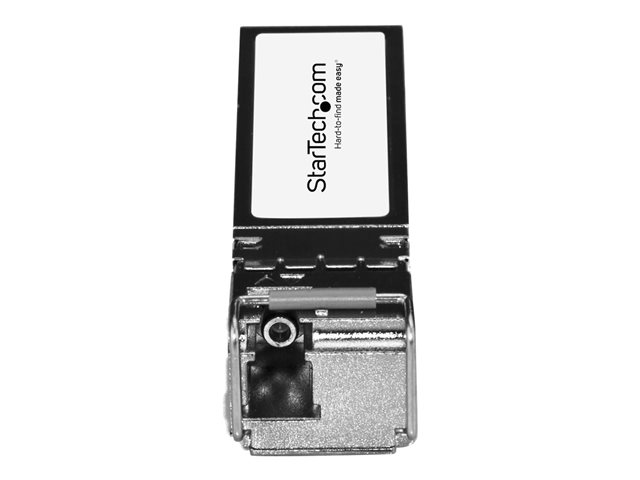

Images for illustrative purposes

Startech HPE JD094B-BX-U Compatible SFP+ Module, 10GBASE-BX, 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+, LC 10km, HPE 5900, 12

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (JD094B-BX-U-ST) - (ECE10309385)

Startech HPE JD094B-BX-U Compatible SFP+ Module, 10GBASE-BX, 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+, LC 10km, HPE 5900, 12500, 5500 Mini GBIC Transceiver - Lifetime Warranty (JD094B-BX-U-ST) - SFP+ transceiver module (equivalen

Reliable connectivity technology
Efficient power consumption
Flexible data link protocol
Digital Diagnostics Monitoring capabilities
Versatile cabling type

FREE Delivery on orders over €250

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€32.08 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The JD094B-BX-U-ST is an HP JD094B-BX-U compatible upstream fiber SFP+ transceiver which pairs with StarTech.com's JD094B-BX-D-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1270nmTx/1330nmRx

Maximum Data Transfer Rate: 10Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

Power Consumption: < 1.3W

DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP+ transceiver module - LC single-mode

Form Factor

Plug-in module

Cabling Type

10GBase-BX

Data Transfer Rate

10 Gbps

Optical Wave Length

1270 nm / 1330 nm

Data Link Protocol

10GbE

Max Transfer Distance

10 km

OEM Manufacturer Equivalent Part Number

HP JD094B-BX-U

Dimensions (WxDxH)

5.84 cm x 1.39 cm x 1.26 cm

Weight

24 g

Manufacturer Warranty

Limited lifetime warranty

Designed For

HP A5830AF-48G; HPE 12504, 5120-48G-PoE+, 5500-24G-PoE+-4SFP, 5500-24G-SFP, 5500-48G-4SFP, 5810-48G, 5900AF-48G-4XG-2QSFP+, 5900AF-48XG-4QSFP+, 5900AF-48XGT-4QSFP+, 5920AF-24XG; FlexFabric 1.92, 11908-V, 12902E; Networking Comware 2150 16p, 2150 24p, 2150 48p, 2150 8p, 5150L 24p

Specifications

EAN / GTIN:

0065030886253

General

Device Type

SFP+ transceiver module

Form Factor

Plug-in module

Networking

Connectivity Technology

Wired

Cabling Type

10GBase-BX

Data Link Protocol

10GbE

Data Transfer Rate

10 Gbps

Optical Wave Length

1270 nm / 1330 nm

Max Transfer Distance

10 km

Features

Full duplex mode, Digital Diagnostics Monitoring (DDM)

Expansion / Connectivity

Interfaces

1 x Ethernet 10GBase-BX - LC single-mode female

Miscellaneous

Compliant Standards

MSA

OEM Manufacturer Equivalent Part Number

HP JD094B-BX-U

Power

Power Consumption Operational

1.3 watt

Dimensions & Weight

Width

5.84 cm

Depth

1.39 cm

Height

1.26 cm

Weight

24 g

Dimensions & Weight (Shipping)

Shipping Width

9 cm

Shipping Depth

11.5 cm

Shipping Height

3.1 cm

Shipping Weight

50 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Compatibility Information

Designed For

HP A5830AF-48G Switch ¦ HPE 12504 AC Switch Chassis, 5120-48G-PoE+ EI Switch with 2 Interface Slots, 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots, 5500-24G-SFP HI Switch with 2 Interface Slots, 5500-48G-4SFP HI Switch with 2 interface Slots, 5810-48G Switch, 5900AF-48G-4XG-2QSFP+ Switch, 5900AF-48XG-4QSFP+ Switch, 5900AF-48XGT-4QSFP+ Switch, 5920AF-24XG Switch ¦ HPE FlexFabric 1.92 Tbps Type D Fabric Module, 11908-V Switch Chassis, 12902E Switch Chassis ¦ HPE Networking Comware 2150 16p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 248W, 2150 24p 10M/100M/1G 4p SFP+ 1G/10G, 2150 48p 10M/100M/1G 4p SFP+ 1G/10G, 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 390W, 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 770W, 2150 8p 10M/100M/1G 2p SFP 1G 2p SFP+ 1G/10G, 2150 8p 10M/100M/1G PoE+ 2p SFP 1G 2p SFP+ 1G/10G 125W, 5150L 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 405W
