Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

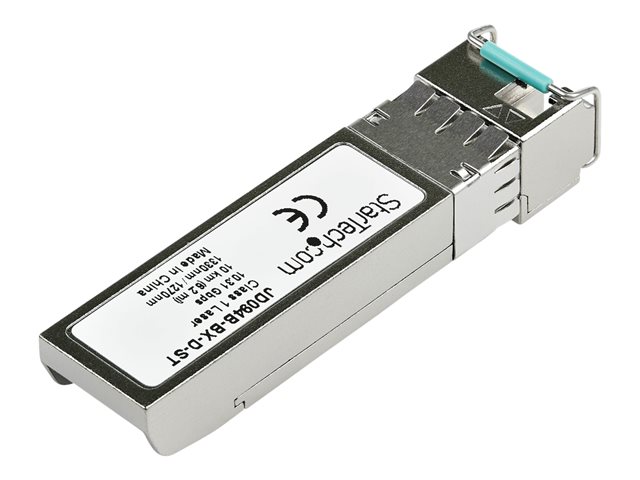

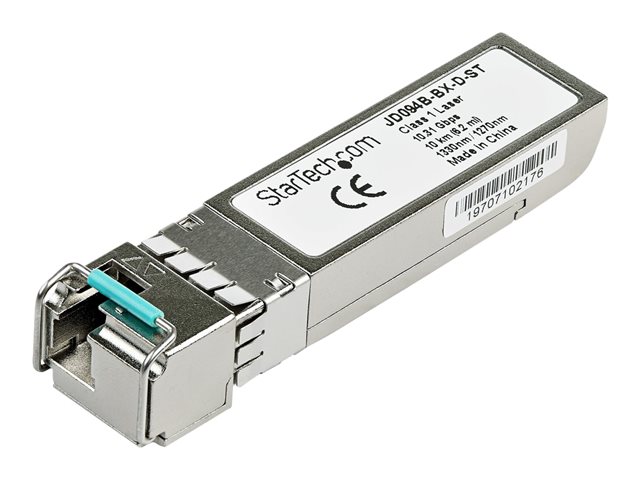

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The JD094B-BX-D-ST is an HP JD094B-BX-D compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's JD094B-BX-U-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1330nmTx/1270nmRx
Maximum Data Transfer Rate: 10Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: < 1.3W
DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specification Summary
Product Description
Startech HPE JD094B-BX-D Compatible SFP+ Module, 10GBASE-BX, 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+, LC 10km, HPE 5900, 12500, 5500 Mini GBIC Transceiver - Lifetime Warranty (JD094B-BX-D-ST) - SFP+ transceiver module - 10GbE
Device Type
SFP+ transceiver module - LC single-mode
Form Factor
Plug-in module
Data Transfer Rate
10 Gbps
Optical Wave Length
1270 nm / 1330 nm
Max Transfer Distance
10 km
OEM Manufacturer Equivalent Part Number
HP JD094B-BX-D
Dimensions (WxDxH)
5.84 cm x 1.39 cm x 1.26 cm
Manufacturer Warranty
Limited lifetime warranty
Designed For
HP A5830AF-48G; HPE 12504, 5120-48G-PoE+, 5500-24G-PoE+-4SFP, 5500-24G-SFP, 5500-48G-4SFP, 5810-48G, 5900AF-48G-4XG-2QSFP+, 5900AF-48XG-4QSFP+, 5900AF-48XGT-4QSFP+, 5920AF-24XG; FlexFabric 1.92, 11908-V, 12902E
