Startech HPE JD089B Compatible SFP Module, 1000BASE-T, SFP to RJ45 Cat6/Cat5e, 1GE Gigabit Ethernet SFP, RJ-45 (Copper) 100m, HPE 5820AF, 12500, 5500,

Images for illustrative purposes

Startech HPE JD089B Compatible SFP Module, 1000BASE-T, SFP to RJ45 Cat6/Cat5e, 1GE Gigabit Ethernet SFP, RJ-45 (Copper) 100m, HPE 5820AF, 12500, 5500,

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (JD089BST) - (ECE4631406)

Startech HPE JD089B Compatible SFP Module, 1000BASE-T, SFP to RJ45 Cat6/Cat5e, 1GE Gigabit Ethernet SFP, RJ-45 (Copper) 100m, HPE 5820AF, 12500, 5500, 1Gbps Mini GBIC Transceiver SFP - Lifetime Warranty (JD089BST) - SFP (mini-GBIC) transceiver module (equ

Reliable connectivity
Efficient data transfer
Versatile environmental operation
Broad standard compliance
Flexible application range

FREE Delivery on orders over €250

8 Available to Ship
Order within 7Hrs 41Mins for: Delivery (8 Jun or 9 Jun)

€53.74 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

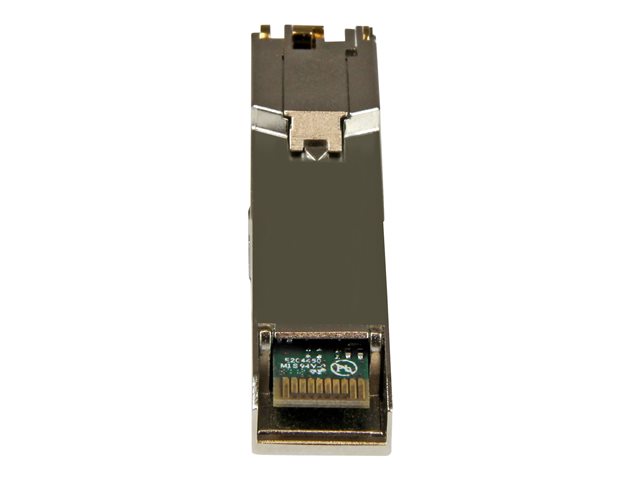

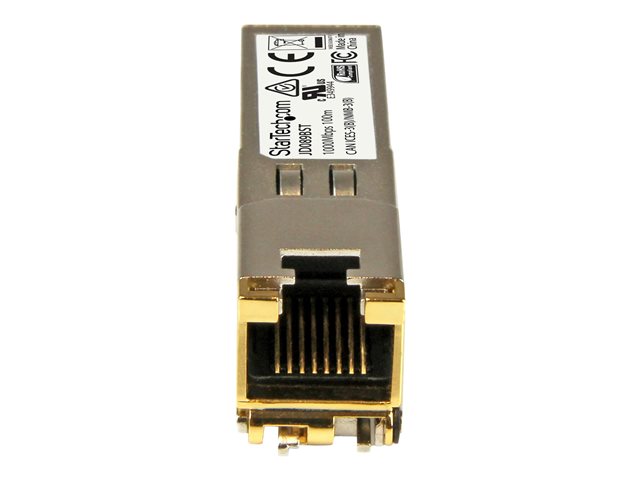

10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty. The JD089BST is an HP JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

Maximum Data Transfer Rate: 1000 Mbps

Type: Copper

Connection Type: RJ45 Connector

Maximum Transfer Distance: 100 m (328 ft)

MTBF: 4,655,371 hours

Power Consumption: Less than 1.3 Watts

Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP (mini-GBIC) transceiver module - RJ-45

Form Factor

Plug-in module

Cabling Type

1000Base-T

Data Transfer Rate

1 Gbps

Data Link Protocol

1GbE

Max Transfer Distance

100 m

OEM Manufacturer Equivalent Part Number

HP JD089B

Dimensions (WxDxH)

1.37 cm x 6.8 cm x 1.38 cm

Weight

35 g

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0065030868556

General

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Colour

Silver

Networking

Connectivity Technology

Wired

Cabling Type

1000Base-T

Data Link Protocol

1GbE

Data Transfer Rate

1 Gbps

Max Transfer Distance

100 m

Features

Auto-negotiation, full duplex mode

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

Interfaces

1 x Ethernet 1000Base-T - RJ-45 female

Miscellaneous

Compliant Standards

UL, FCC, RoHS, MSA

OEM Manufacturer Equivalent Part Number

HP JD089B

Dimensions & Weight

Width

1.37 cm

Depth

6.8 cm

Height

1.38 cm

Weight

35 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5 - 95%
