Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE 4200 vl Switch Series provides cost-effective Layer 2 modular switching for enterprise edge deployments. This flexible modular switch supports 10/100, Gigabit Ethernet and 10GbE connectivity and basic IP routing with up to 16 static routes. An optional redundant power supply can be added for uninterrupted power. The HPE 4200 vl Switch Series can be seamlessly managed with the optional HPE Intelligent Management Center (IMC) Software Platform.


Features Summary

  • Layer 2 Modular Access Switches
    The HPE 4200 vl Switch Series provides cost-effective Layer 2 modular switching for enterprise edge deployments.
    Basic IP routing enables automatic routing to the connected VLANs and up to 16 static routes, including one default route, in IP networks.
    Optional redundant power supply for uninterrupted power.
    10GbE modules for bandwidth demanding applications.
  • Security with Quality of Service
    The HPE 4200 vl Switch Series includes security and quality of services features such as traffic prioritization (IEEE 802.1p) which allows real-time traffic classification into eight priority levels mapped to eight queues.
    Flexible authentication options include 802.1X, MAC and Web Authentication modes for improved security and policy-driven application authentication.
  • Single View of the Network
    The HPE 4200 vl Switch Series can be seamlessly managed with the optional HPE Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
    RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Specification Summary

Product Description

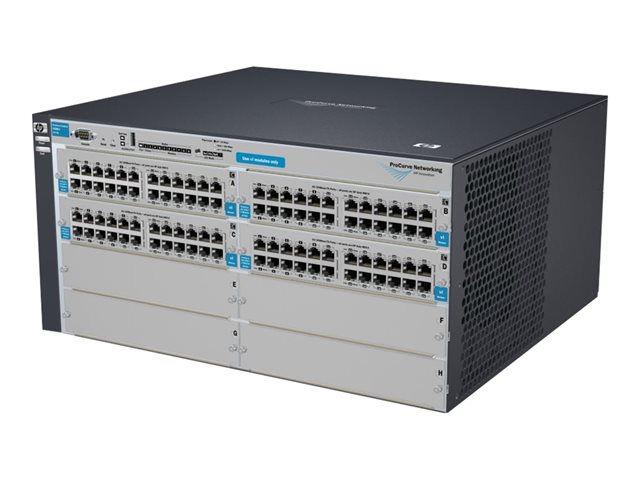

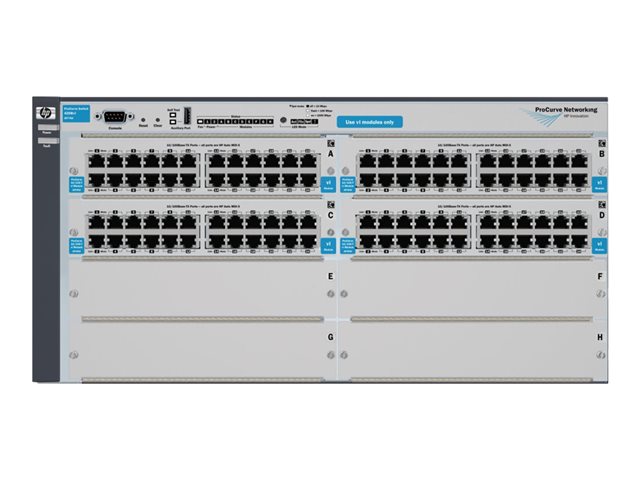

HPE 4208-96 vl Switch - switch - 96 ports - Managed - rack-mountable
Device Type
Switch - 96 ports - Managed
Enclosure Type
Rack-mountable 5U
Subtype
Fast Ethernet
Ports
96 x 10/100
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Features
Routing, VLAN support, auto-uplink (auto MDI/MDI-X), manageable
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
Dimensions (WxDxH)
44.2 cm x 38.9 cm x 22.2 cm
Weight
14.7 kg

Specifications

EAN / GTIN:
884420047711
General
Device Type
Switch - 96 ports - Managed
Enclosure Type
Rack-mountable 5U
Subtype
Fast Ethernet
Ports
96 x 10/100
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Routing, VLAN support, auto-uplink (auto MDI/MDI-X), manageable
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Processor
1 x Motorola MPC8245: 330 MHz
RAM
64 MB SDRAM
Flash Memory
24 MB Flash
Expansion / Connectivity
Interfaces
1 x serial (RS-232) DB-9 management ¦ 96 x 100Base-TX RJ-45
Expansion Slots
8 (total) / 4 (free) x Expansion Slot
Installed Modules Qty (Max)
4 (installed) / 8 (max)
Power
Power Device
Internal power supply
Power Redundancy
Yes
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
630 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, UL 60950
Dimensions & Weight
Width
44.2 cm
Depth
38.9 cm
Height
22.2 cm
Weight
14.7 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
15 - 95%
