ViewSonic ViewBoard IFP8652-2F IFP52-2F Series - 8

Images Manuals

Images for illustrative purposes

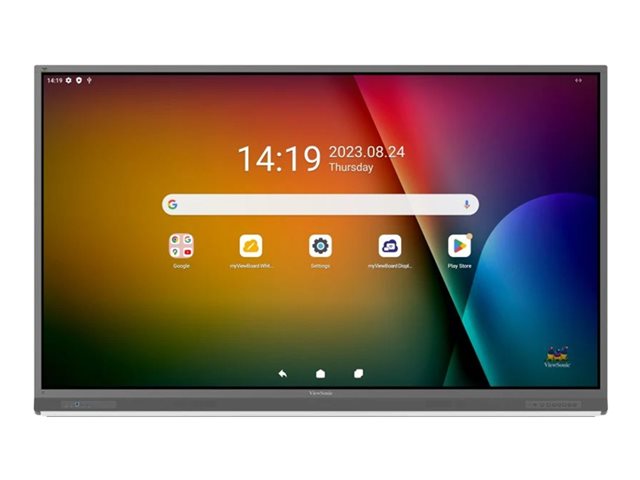

ViewSonic ViewBoard IFP8652-2F IFP52-2F Series

Name: ViewSonic ViewBoard IFP8652-2F IFP52-2F Series
Brand: VIEWSONIC
SKU: MMECI86703
Price: 4919.75 EUR
Availability: InStock

View all VIEWSONIC Digital Signage | Large Displays - Visit the VIEWSONIC Store (IFP8652-2F) - (MMECI86703)

Model: ViewSonic ViewBoard

ViewBoard IFP8652-2F IFP52-2F Series - 86" Class (85.6" viewable) LED-backlit LCD display - 4K - for interactive communication

FREE Delivery on orders over €250

1 Available to Ship
Order within 15Hrs 56Mins for: FREE Delivery (8 Jun or 9 Jun)

€4919.75 Incl Vat

Wishlist Compare

Overview

IFP8652-2F 86IN (3840X2160) EDLA 40 MULTI-POINT TOUCH 7H 400

Specification Summary

Product Description

ViewSonic ViewBoard IFP8652-2F IFP52-2F Series - 86" Class (85.6" viewable) LED-backlit LCD display - 4K - for interactive communication

Product Type

LED-backlit LCD flat panel display with touchscreen (multi touch) / 8-microphone array

Diagonal Class

86"

Diagonal Size

85.6"

Commercial Use

Yes - interactive

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

Video Interface

HDMI

HDMI Ports Qty

3 ports

Connectivity

LAN

PC Interface

VGA (HD-15), DisplayPort, USB-C

Technology

LCD Backlight Technology

Direct LED

Image Aspect Ratio

16:9

TV Tuner

No tuner

Speaker System

2 speakers, subwoofer

Storage Capacity

64 GB

USB

Yes

Included Accessories

Remote control, camera plate, 5 clamps, 8 x screws, RS232 adapter, myViewBoard WhiteBoard software, 2 x touch pen

Voltage

AC 100-240 V

Power Consumption Operational

148.12 watt

Dimensions (WxDxH)

197.116 cm x 12.138 cm x 121.254 cm

Weight

70 kg

Environmental Standards

ENERGY STAR Qualified, EPEAT Silver

Specifications

EAN / GTIN:

0766907023206

General

Product Type

LED-backlit LCD flat panel display

Power Consumption Operational

148.12 watt

Diagonal Class

86"

Diagonal Size

85.6"

Commercial Use

Yes - interactive

Combined With

Touchscreen (multi touch) / 8-microphone array

Series

IFP52-2F Series

Operating System

Android OS 13

TV Tuner

No tuner

TV Tuner Presence

Sensors

Light sensor

Video Interface

HDMI

HDMI Ports Qty

3 ports

PC Interface

VGA (HD-15), DisplayPort, USB-C

Modes

Landscape mode

Width

197.116 cm

Depth

12.138 cm

Height

121.254 cm

Weight

70 kg

Display

LCD Display Technology

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

LCD Backlight Technology

Direct LED

Coating

Anti-glare, 7H Hard

Image Contrast Ratio

4000:1

Dynamic Contrast Ratio

5000:1

Brightness

450 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Touchpoints Qty

Response Time

7 ms

Backlight Life

50,000 hours

Features

Eye Care, Open Pluggable Specification slot, Flicker free technology, Ultra Fine Touch Technology (UFT), USB SmartPort, 1.07 billion colours, CEC Support, ARC Support through HDMI, Pen-On-Paper technology

Stands & Mounts

Flat Panel Mount Interface

800 x 600 mm

VESA Compatibility

Yes

Media Player

USB Port

Yes

Configuration

ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 8 GB - 64 GB

Remote Control

Type

Remote control

Battery Form Factor

AAA type

Battery Included

Yes

Battery Included Qty

Audio System

Speaker System

2 speakers, subwoofer

Output Power / Total

40 watt

Features

Built-in 8-array microphone

Speakers

2 x main channel speaker - 20 watt ¦ 1 x subwoofer - 20 watt

Network & Internet Multimedia

Connectivity

LAN

LAN Protocol

Gigabit Ethernet

Connections

Connector Type

3 x HDMI input ¦ VGA input ¦ DisplayPort input ¦ RS-232 input ¦ Audio input ¦ 2 x LAN ¦ 4 x USB 3.0 ¦ USB 2.0 - rear ¦ Audio output ¦ HDMI output ¦ SPDIF output ¦ 3 x USB 3.0 ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 65W Power Delivery - front ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 100W Power Delivery - rear ¦ USB-C data transfer only - rear

Miscellaneous

Included Accessories

Camera plate, 5 clamps, 8 x screws, RS232 adapter, myViewBoard WhiteBoard software, 2 x touch pen

Cables Included

Touch cable - 3 m ¦ RS-232 adapter ¦ HDMI cable - 3 m

Compliant Standards

FCC Class B certified, CB, RoHS, WEEE, LVD, ERP, CE/EMC, REACH SvHC, DOE, Energy Efficiency Label (EEL), RoHS DoC, Green BOM, US NRTL w/ CA, Google EDLA

Sustainability Information

EPEAT Compliant

EPEAT Silver

ENERGY STAR Certified

Yes

Power

Power Device

Power supply

Input Voltage

AC 100-240 V

Power Consumption (Off Mode)

0.5 watt
