ViewSonic ViewBoard IFP6553 IFP53 Series - 65" LED

Images Manuals

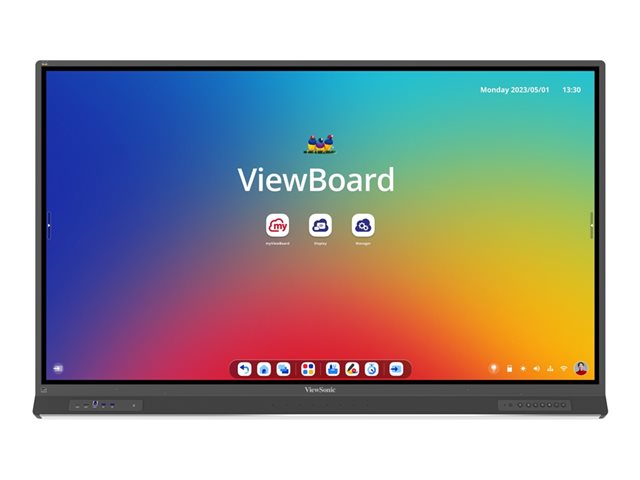

ViewSonic ViewBoard IFP6553 IFP53 Series

Images for illustrative purposes

ViewSonic ViewBoard IFP6553 IFP53 Series

Name: ViewSonic ViewBoard IFP6553 IFP53 Series
Brand: VIEWSONIC
SKU: MMECL40322
Price: 2896.93 EUR
Availability: InStock

View all VIEWSONIC Digital Signage | Large Displays - Visit the VIEWSONIC Store (IFP6553) - (MMECL40322)

Model: ViewSonic ViewBoard

ViewBoard IFP6553 IFP53 Series - 65" LED-backlit LCD display - 4K - for interactive communication

Vibrant display quality
Rich audio experience
Versatile connectivity
Energy-efficient operation
Enhanced touch functionality

FREE Delivery on orders over €250

12 Available to Ship
Order within 15Hrs 18Mins for: FREE Delivery (8 Jun or 9 Jun)

€2896.93 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ViewSonic ViewBoard IFP6553 is designed for innovative interactive communication. This 65-inch 4K UHD display features a resolution of 3840 x 2160, providing sharp images and vibrant colors with a maximum brightness of 450 cd/m2. With Direct LED backlight technology and an anti-glare coating, it ensures users can view content without distortion, making it suitable for various commercial settings.

Equipped with an audio system, it includes two main channel speakers and a subwoofer, delivering a total output power of 36 watts that enhances the overall experience. The built-in 8-array microphone facilitates clear voice capture, making it suitable for presentations and collaborative work. Additionally, the display supports multiple connections, including HDMI, USB-C, and LAN, ensuring compatibility with various devices, maximizing versatility for presentations, video conferencing, and content sharing.

Specification Summary

Product Description

ViewSonic ViewBoard IFP6553 IFP53 Series - 65" LED-backlit LCD display - 4K - for interactive communication

Product Type

LED-backlit LCD flat panel display with touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/2078780

Diagonal Class

65"

Commercial Use

Yes - interactive

Platform

Android

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Video Interface

HDMI

HDMI Ports Qty

4 ports

Connectivity

LAN

PC Interface

VGA (HD-15), DisplayPort, USB-C

LCD Backlight Technology

Direct LED

Image Aspect Ratio

16:9

TV Tuner

No tuner

Speaker System

2 speakers, subwoofer

Storage Capacity

128 GB

USB

Yes, 11 ports

Included Accessories

Remote control, remote control, camera plate, 5 clamps, 8 x screws, RS232 adapter, 2 x touch pen

Voltage

AC 100-240 V

Energy Class

Class F

Power Consumption Operational

85.68 watt

Power Consumption Stand by

0.5 watt

Dimensions (WxDxH)

148.57 cm x 11.8 cm x 93.46 cm

Weight

39 kg

Environmental Standards

ENERGY STAR Qualified, EPEAT Silver

Specifications

EAN / GTIN:

0766907026764

General

Product Type

LED-backlit LCD flat panel display

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/2078780

Energy Class

Class F

Power Consumption Operational

85.68 watt

Power Consumption SDR (On mode)

90 kWh/1000h

Diagonal Class

65"

Commercial Use

Yes - interactive

Combined With

Touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability

Series

IFP53 Series

Platform

Android

Operating System

Android OS 14

TV Tuner

No tuner

TV Tuner Presence

Sensors

Light sensor

Video Interface

HDMI

HDMI Ports Qty

4 ports

PC Interface

VGA (HD-15), DisplayPort, USB-C

Modes

Landscape mode

Width

148.57 cm

Depth

11.8 cm

Height

93.46 cm

Weight

39 kg

Display

Colour Support

1070000000 colours

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

LCD Backlight Technology

Direct LED

Coating

Anti-glare, 7H Hard

Image Contrast Ratio

5000:1

Brightness

450 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Touchpoints Qty

Response Time

6.5 ms

Backlight Life

50,000 hours

Features

Eye Care, Open Pluggable Specification slot, Flicker free technology, Ultra Fine Touch Technology (UFT), USB SmartPort, CEC Support, ARC Support through HDMI

Stands & Mounts

Flat Panel Mount Interface

600 x 400 mm

VESA Compatibility

Yes

Media Player

USB Port

Yes

USB Ports Qty

Configuration

ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 16 GB - 128 GB

Remote Control

Type

Remote control

Battery Form Factor

AAA type

Battery Included Qty

Battery Required Qty

Audio System

Speaker System

2 speakers, subwoofer

Output Power / Total

36 watt

Features

Built-in 8-array microphone

Speakers

2 x main channel speaker - 16 watt ¦ 1 x subwoofer - 20 watt

Network & Internet Multimedia

Connectivity

LAN

LAN Protocol

Fast Ethernet

Connections

Connector Type

4 x HDMI input ¦ VGA input ¦ DisplayPort input ¦ RS-232 input ¦ Audio input ¦ 2 x LAN ¦ 4 x USB 3.0 ¦ USB 2.0 ¦ Audio output ¦ HDMI output ¦ SPDIF output ¦ 3 x USB 3.0 ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 100W Power Delivery - front ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 65W Power Delivery - rear ¦ USB-C with 15W Power Delivery - rear

Miscellaneous

Included Accessories

Remote control, camera plate, 5 clamps, 8 x screws, RS232 adapter, 2 x touch pen

Cables Included

Touch cable - 3 m ¦ HDMI cable - 3 m ¦ USB-C cable - 1.8 m

Compliant Standards

BSMI, CB, DOC, USB-IF, WEEE, Green Mark, LVD, ERP, EEI, REACH SvHC, RoHS DoC, Green BOM

Sustainability Information

EPEAT Compliant

EPEAT Silver

ENERGY STAR Certified

Yes

Power

Power Device

Power supply

Input Voltage

AC 100-240 V

Power Consumption Stand by

0.5 watt

Dimensions & Weight (Shipping)

Width (Shipping)

166 cm

Depth (Shipping)

22 cm

Height (Shipping)

104.5 cm

Weight (Shipping)

48.75 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 80% RH (non-condensing)
