EAN / GTIN:
0065030889582
Device Type
Switch - 6 ports
Enclosure Type
DIN rail mountable
Ports
1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP
Power Over Ethernet (PoE)
PoE+
Performance
Switching fabric speed: 12 Gbps
Features
Flow control, full duplex mode, 1MB packet buffer, 2KV ESD Protector, MDI-X
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Status Indicators
Power, PoE, SFP, link
Interfaces

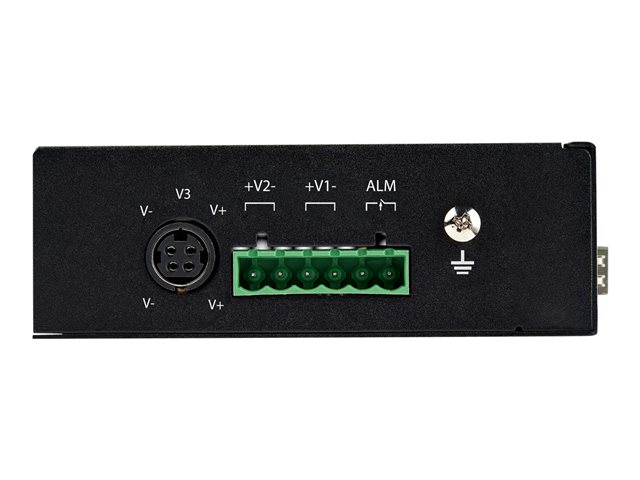

1 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x SFP ¦ 1 x terminal block
Voltage Required
DC 48 - 56 V
Power Consumption Operational
126 Watt

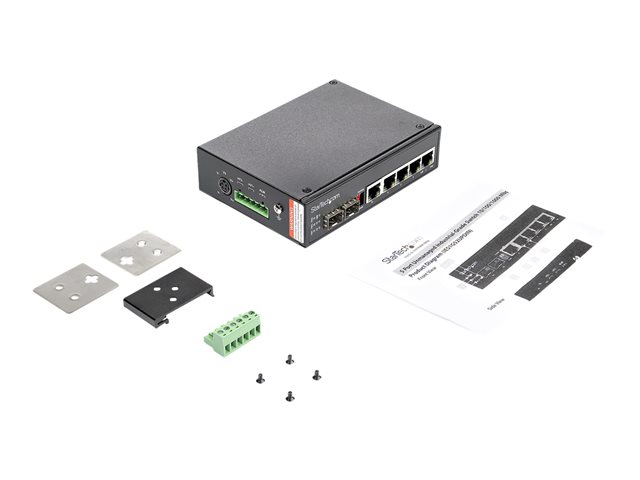

Included Accessories
Terminal block connector, mounting kit
Compliant Standards
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, UL 60950-1, EN 60950-1, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
Dimensions & Weight (Shipping)
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
80 °C
