Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Cisco Industrial Ethernet (IE) 2000 IP67 Series is Cisco's first ruggedized switching platform that complies with the most demanding IP67 industrial standards. It also provides everything you've come to expect from the global leader in Internet Protocol (IP) networking: easy integration with the rest of your network, reliability, rock‑solid performance, and world-class support. Now, those advantages and Cisco IOS Software features extend all the way to the factory floor, rail yard, or other industrial site, even in the harshest environments. So you can finally fulfill the promise of network convergence-across both information technology (IT) and operations technology (OT) environments-with one supplier.


Features Summary

  • Certified IP67 rating
    The solution is IP67-rated to protect against dust and submersion in water. It meets the most rigorous industrial and safety standards for extreme temperature and vibration, humidity, electromagnetic emissions, and other factors.
  • Compliant with industrial automation standards
    The rugged switch supports Common Industrial Protocol (CIP) and the PROFINET v2 standard, so you can easily integrate it with any Ethernet-based industrial equipment and management system. It also supports Precision Timing Protocol (PTP) v2 for demanding synchronized applications.
  • Easy deployment
    With zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and sub-60-second boot-up times, you can easily migrate to all-IP-over-Ethernet networking environment.
  • Resiliency
    Cisco brings recovery mechanisms such as flex links and Cisco Resilient Ethernet Protocol (REP) to the factory floor or other industrial site.
  • Manageability
    The solution is easy for operations staff to configure and manage. Cisco Auto Smart Port lets you configure the right quality of service (QoS) settings for any port in seconds. It also allows for secure web-based administration and easy integration with your network management system.
  • Network address translation (NAT)
    The switches provide line-rate, hardware-enabled static address translation to easily connect complex Layer‑2/machine node networks.
  • Industrial power-over-Ethernet (PoE)
    Select switch models let you connect and power endpoints with a single cable in compliance with PoE and PoE+ standards.
  • Removable SD Flash memory
    With tightly secured swappable hard drives, you can quickly replace switches in the field with minimal disruption.

Specification Summary

Product Description

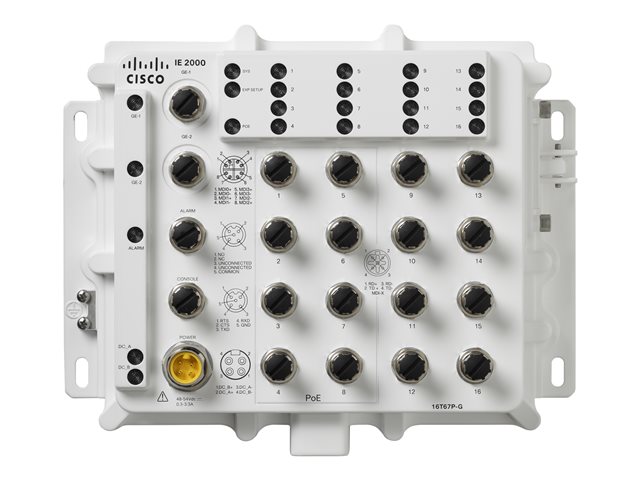

Cisco Industrial Ethernet 2000 IP67 Series - switch - 16 ports - Managed
Device Type
Switch - 16 ports - Managed
Subtype
Fast Ethernet
Ports
16 x 10/100 (PoE+) + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
Performance
Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
IGMP groups: 255 ¦ VLANs supported: 1005
MAC Address Table Size
8K entries
Routing Protocol
OSPF, RIP, BGP, static IPv4 routing, static IPv6 routing
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH
Features
NAT support, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, QoS, DHCP server, VRF-Lite, DAI, UDLD, LLDP support, DHCP relay, Port Security, MAC Address Notification, RSPAN, CoS, PTP, IGMP filtering, PROFINET v2
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
Dimensions (WxDxH)
30.07 cm x 8.15 cm x 24.17 cm
Weight
3.3 kg
Manufacturer Warranty
5-year warranty

Specifications

EAN / GTIN:
882658623448
General
Device Type
Switch - 16 ports - Managed
Enclosure Type
Wall-mountable
Subtype
Fast Ethernet
Ports
16 x 10/100 (PoE+) + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
Performance
Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
IGMP groups: 255 ¦ VLANs supported: 1005
MAC Address Table Size
8K entries
Routing Protocol
OSPF, RIP, BGP, static IPv4 routing, static IPv6 routing
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
NAT support, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, QoS, DHCP server, VRF-Lite, DAI, UDLD, LLDP support, DHCP relay, Port Security, MAC Address Notification, RSPAN, CoS, PTP, IGMP filtering, PROFINET v2
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
RAM
256 MB
Flash Memory
64 MB
Expansion / Connectivity
Interfaces
16 x 100Base-TX M12 PoE+ ¦ 2 x 1000Base-T M12 uplink ¦ 1 x console M12
Expansion Slots
1 (total) / 1 (free) x SD Memory Card
Power
Power Consumption Operational
137 watt
Miscellaneous
MTBF
374,052 hours
Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, NEMA Type 4, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, EN 55011, IP67, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-31, IEC 60068-2-52, EN 50121-4, VCCI Class A, NEMA TS-2, EN 50121-3-2, EN 61326, CISPR 11 class A, EN 61000-4-10, IEC 61850-3, EN 60945, EN 55022 Class A, EN 50155
Software / System Requirements
Software Included
Cisco IOS LAN Enhanced
Dimensions & Weight
Width
30.07 cm
Depth
8.15 cm
Height
24.17 cm
Weight
3.3 kg
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
