Startech Motherboard Serial Port - Internal - 2 Po

Images Manuals

Images for illustrative purposes

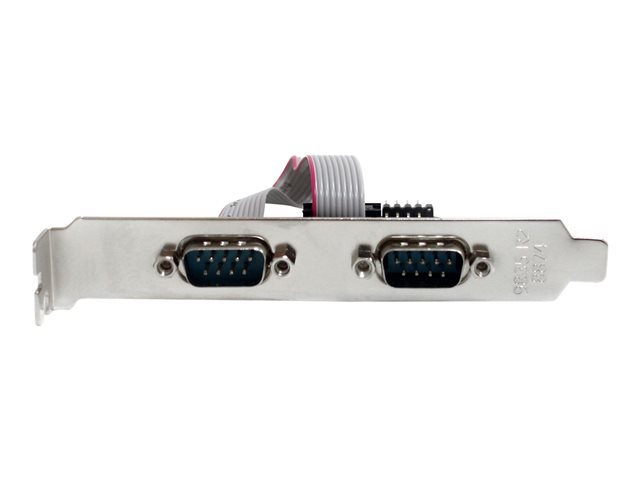

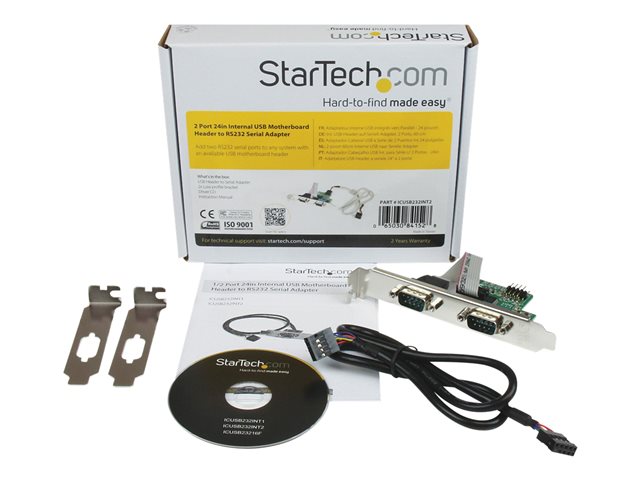

Startech Motherboard Serial Port

Name: Startech Motherboard Serial Port
Brand: STARTECH.COM
SKU: MMEV931434
Price: 68.57 EUR
Availability: InStock

View all STARTECH.COM USB Cards/Adapters - Visit the STARTECH.COM Store (ICUSB232INT2) - (MMEV931434)

Startech Motherboard Serial Port - Internal - 2 Port - Bus Powered - FTDI USB to Serial Adapter - USB to RS232 Adapter (ICUSB232INT2) - serial adapter - USB - RS-232 x 2

FREE Delivery on orders over €250

5 Available to Ship
Order within 6Hrs 22Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€93.92~~

€68.57 Incl Vat

Bulk Pricing from €64.02

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Internal USB Motherboard Header to 2 Port Serial Adapter (ICUSB232INT2).

Specification Summary

Product Description

Startech Motherboard Serial Port - Internal - 2 Port - Bus Powered - FTDI USB to Serial Adapter - USB to RS232 Adapter (ICUSB232INT2) - serial adapter - USB - RS-232 x 2

Device Type

Serial adapter

Form Factor

Internal

Interface (Bus) Type

USB

Ports

RS-232 x 2

Dimensions (WxDxH)

12 cm x 6.8 cm x 1.9 cm

Weight

63 g

Data Link Protocol

RS-232

Data Transfer Rate

115.2 Kbps

System Requirements

Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030841528

General

Device Type

Serial adapter

Form Factor

Internal

Interface (Bus) Type

USB

Networking

Ports

RS-232 x 2

Connectivity Technology

Wired

Data Link Protocol

RS-232

Data Transfer Rate

115.2 Kbps

Expansion / Connectivity

Interfaces

2 x RS-232 - 9 pin D-Sub (DB-9)

Connections

1 x USB

Miscellaneous

Cables Included

1 x USB cable - 61 cm

Compliant Standards

WHQL, RoHS

Software / System Requirements

OS Required

Dimensions & Weight

Width

12 cm

Depth

6.8 cm

Height

1.9 cm

Weight

63 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

85 °C
