Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

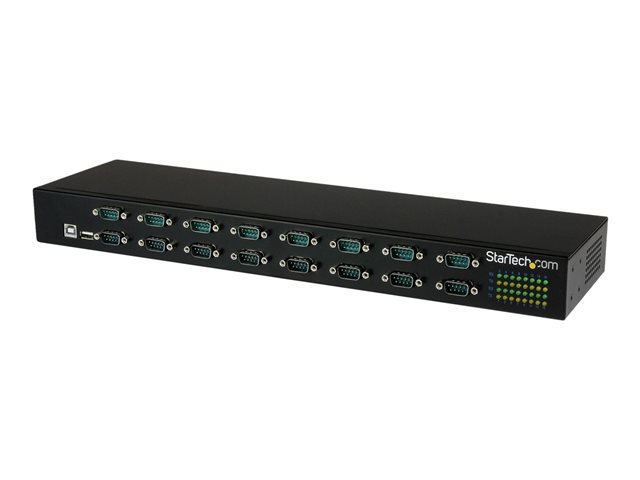

Here's an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.


Specification Summary

Product Description
Startech USB to Serial Hub - 16 Port - COM Port Retention - Rack Mount and Daisy Chainable - FTDI USB to RS232 Hub (ICUSB23216FD) - serial adapter - USB 2.0 - RS-232 x 16
Device Type
Serial adapter
Form Factor
Rack-mountable
Interface (Bus) Type
USB 2.0
Ports
RS-232 x 16
Dimensions (WxDxH)
12 cm x 43 cm x 4.5 cm
Weight
1.52 kg
Localisation
Australia, North America, United Kingdom, Europe
Data Link Protocol
RS-232
Data Transfer Rate
480 Mbps
Processor
FTDI FT232RL
Colour
Black
Power
AC 120/230 V / DC 12 V
System Requirements
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
0065030864763
General
Device Type
Serial adapter
Form Factor
Rack-mountable
Interface (Bus) Type
USB 2.0
Localisation
Australia, North America, United Kingdom, Europe
Networking
Ports
RS-232 x 16
Connectivity Technology
Wired
Data Link Protocol
RS-232
Data Transfer Rate
480 Mbps
Status Indicators
Transmit, receive
Features
128-byte FIFO
Processor / Memory
Processor
FTDI FT232RL
Expansion / Connectivity
Interfaces

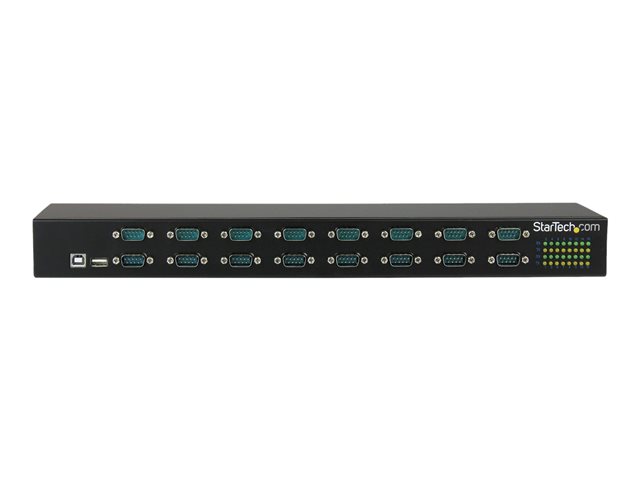

16 x RS-232 - 9 pin D-Sub (DB-9) (front) ¦ 1 x USB 2.0 - 4 pin USB Type B (front)
Miscellaneous

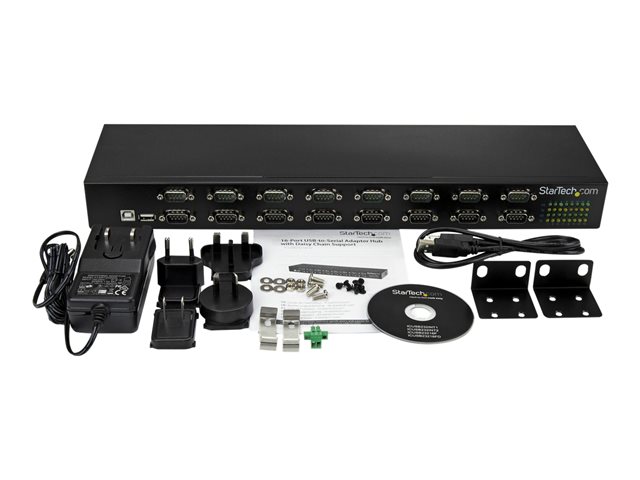

Included Accessories
2 rack mount brackets, rack mounting screws, DIN rail mounting screws, DIN rail mounting brackets
Cables Included
1 x USB cable ¦ 1 x power adapter
Compliant Standards
FCC, RoHS, WEEE, RCM
Colour
Black
Power
Voltage Required
AC 120/230 V / DC 12 V
Software / System Requirements
Software Included
Drivers & Utilities
OS Required
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Dimensions & Weight
Width
12 cm
Depth
43 cm
Height
4.5 cm
Weight
1.52 kg
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
80 °C
Humidity Range Operating
5 - 85%
