Startech 4-Bay Mobile Rack Backplane

View all STARTECH.COM Hard Disks Other Options - Visit the STARTECH.COM Store (HSB4SATSASBA) - (MMEV933298)

Startech 4-Bay Mobile Rack Backplane - Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD (HSB4SATSASBA) - storage mobile rack

Efficient hot-swap design
Real-time indicators
Robust cooling system
High-speed connectivity
Versatile compatibility

FREE Delivery on orders over €250

2 Available to Ship
Order within 13Hrs 36Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€138.06~~

€116.62 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

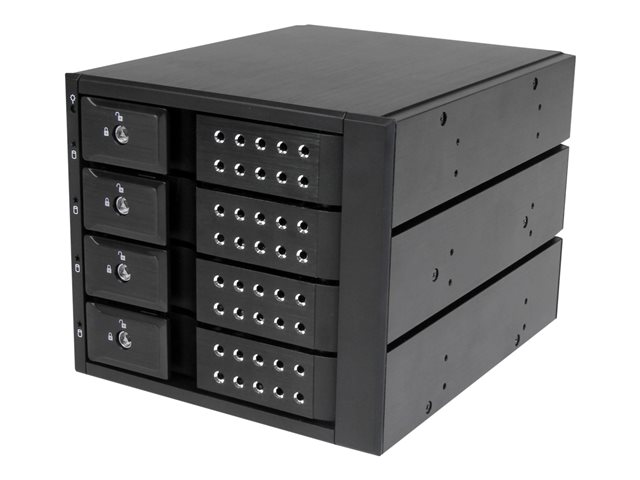

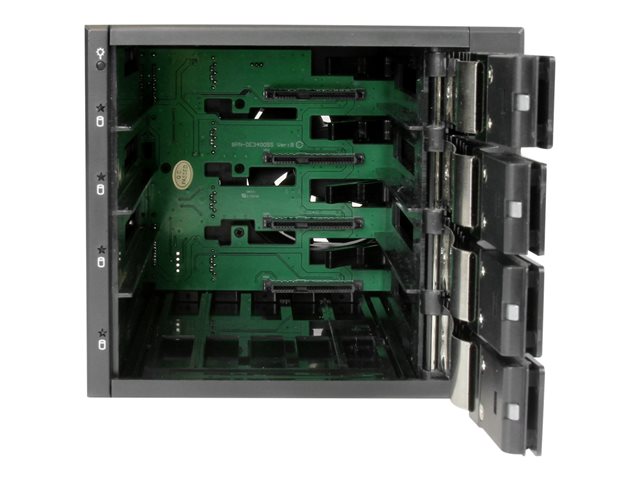

Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25" bays, with support for transfer speeds up to 6 Gbps. The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives - an ideal solution for enterprise system applications.

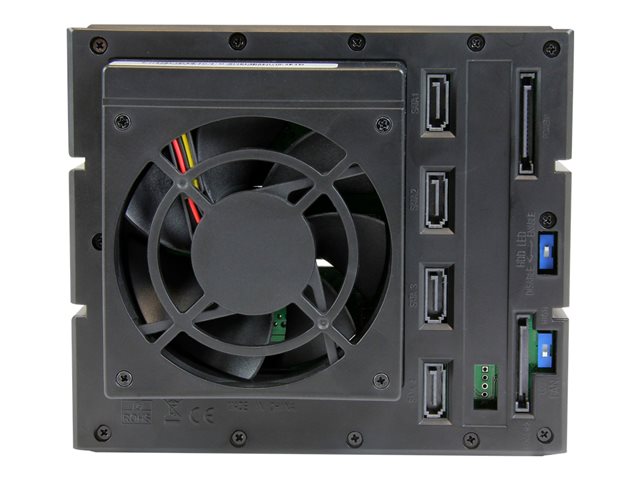

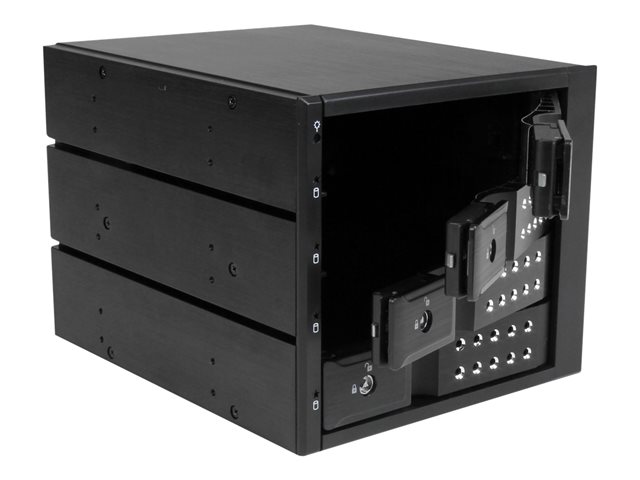

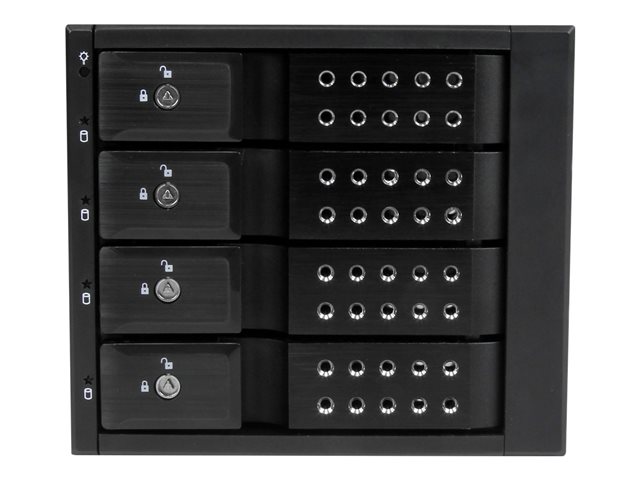

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

Specification Summary

Product Description

Startech 4-Bay Mobile Rack Backplane - Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD (HSB4SATSASBA) - storage mobile rack

Device Type

Storage mobile rack

Colour

Black

Expansion Bays

4 x hot-swap - 3.5"

Compatible Bay

3 5.25"

Hard Drive Form Factor Compatibility

2.5"

Supported Interface

SATA-600

Drive Connector

29 pin internal SAS (SFF-8482)

Features

Data indicator, power indicator, cooling fan

Product Material

Aluminium

Dimensions (WxDxH)

14.5 cm x 19.8 cm x 12.5 cm

Weight

120 g

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030859547

General

Device Type

Storage mobile rack

Hard Drive Form Factor Compatibility

2.5"

Product Material

Aluminium

Colour

Black

Supported Interface

SATA-600

Features

Data indicator, power indicator, cooling fan

Storage Controller

Processor

No CPU

Expansion / Connectivity

Bays

4 x hot-swap - 3.5"

Interfaces

4 x SATA 6Gb/s - 29 pin internal SAS (SFF-8482)

Connections

4 - 7 pin Serial ATA ¦ 2 - 15 pin Serial ATA power

Compatible Bay

3 x external 5.25"

Miscellaneous

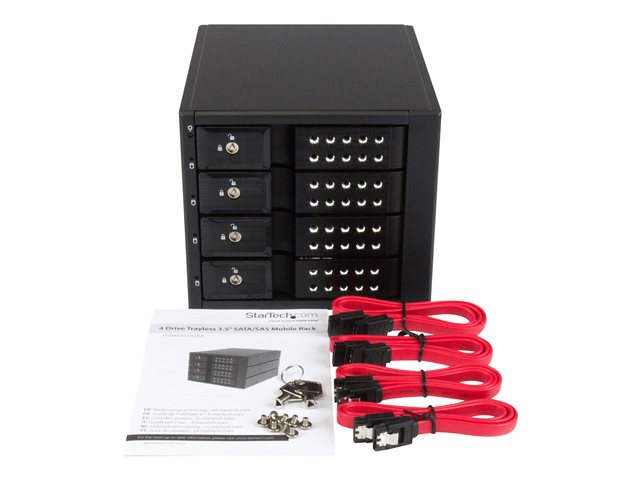

Included Accessories

2 security keys, 8 x screws

Cables Included

4 x Serial ATA cable

Compliant Standards

FCC, RoHS

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Dimensions & Weight

Width

14.5 cm

Depth

19.8 cm

Height

12.5 cm

Weight

120 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Humidity Range Operating

5 - 85%
