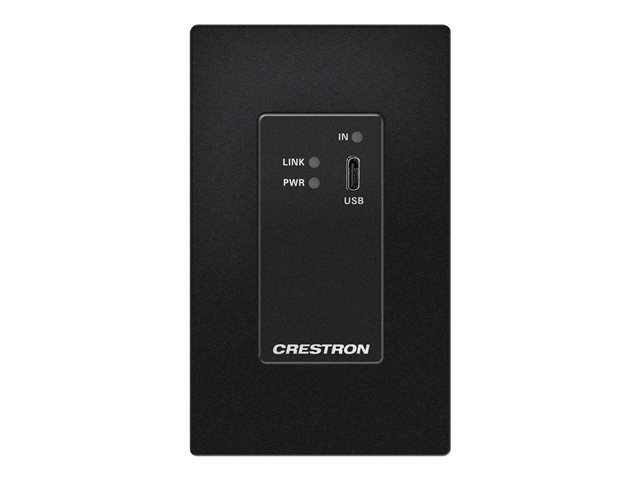

Crestron DM Lite HD-TX-4KZ-111-1G-B

View all CRESTRON ELECTRONICS Repeaters | Tranceivers - Visit the CRESTRON ELECTRONICS Store (HD-TX-4KZ-111-1G-B) - (MMECM52288)

Crestron DM Lite HD-TX-4KZ-111-1G-B - video/audio extender - USB-C, DM Lite

Interoperability with a DM Lite receiver or DMPS Lite switcher
4K60 4:4:4 and HDR support
One-gang wall plate design

FREE Delivery on orders over €250

6 Available to Ship
Order within 23Hrs 20Mins for: FREE Delivery (9 Jun or 10 Jun)

€389.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HD-TX-4KZ-111-1G is a DM Lite 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite receiver or DMPS Lite switcher. The HD-TX-4KZ-111-1G includes a USB-C input with DisplayPort Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

Features Summary

Interoperability with a DM Lite receiver or DMPS Lite switcher
The DM Lite output port of the HD-TX-4KZ-111-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher.
4K60 4:4:4 and HDR support
The HD-TX-4KZ-111-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision video formats are also supported.
One-gang wall plate design
The HD-TX-4KZ-111-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.

Specification Summary

Product Description

Crestron DM Lite HD-TX-4KZ-111-1G-B - video/audio extender - USB-C, DM Lite

Device Type

Video/audio extender (transmitter)

Form Factor

In-wall mountable

Data Link Protocol

USB-C, DM Lite

Max Transfer Distance

70 m

Power

AC 100-240 V

Dimensions (WxDxH)

4.4 cm x 5.6 cm x 10.5 cm

Weight

152 g

Specifications

General

Device Type

Video/audio extender (transmitter)

Form Factor

In-wall mountable

Colour

Black

Networking

Connectivity Technology

Wired

Data Link Protocol

USB-C, DM Lite

Max Resolution

4096 x 2160 / 3840 x 2160 @ 60 Hz

Max Transfer Distance

70 m

Status Indicators

Link, power, USB, DM Lite

Features

HDR10+ support, Dolby Vision HDR support, HDR10 support, EDID Pass-Through, CEC passthrough, 4K60 8-bit 4:4:4 compatible, DisplayPort Alternate mode, chassis ground lug, metal housing, Deep Colour support, Dolby Atmos support, Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, Dolby TrueHD support, DTS support, DTS:X support, DTS-HD Master Audio support, DTS-HD support, LPCM 7.1 support

Compliant Standards

HDCP 2.3

Expansion / Connectivity

Interfaces

1 x USB - Type C female ¦ 1 x network (output (pass-through)) - RJ-45 female ¦ 1 x power - terminal block

Miscellaneous

Included Accessories

Wall plate

Compliant Standards

FCC Part 15 B, IC

Power

Voltage Required

AC 100-240 V

Dimensions & Weight

Width

4.4 cm

Depth

5.6 cm

Height

10.5 cm

Weight

152 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 90% RH (non-condensing)
