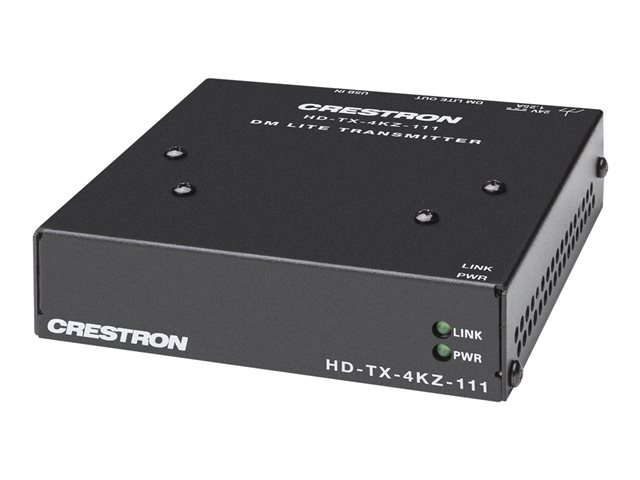

Crestron DM Lite HD-TX-4KZ-111

View all CRESTRON ELECTRONICS Repeaters | Tranceivers - Visit the CRESTRON ELECTRONICS Store (HD-TX-4KZ-111) - (MMECM52293)

Crestron DM Lite HD-TX-4KZ-111 - video/audio extender

Interoperability with a DM Lite receiver or DMPS Lite switcher
4K60 4:4:4 and HDR support
Compact, surface-mountable design

FREE Delivery on orders over €250

6 Available to Ship
Order within 7Hrs 21Mins for: FREE Delivery (12 Aug or 13 Aug)

€349.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HD-TX-4KZ-111 is a DM Lite 4K60 4:4:4 transmitter designed to interoperate with a DM Lite receiver or DMPS Lite switcher. The HD-TX-4KZ-111 includes a USB-C input with DisplayPort Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111 to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

Features Summary

Interoperability with a DM Lite receiver or DMPS Lite switcher
The DM Lite output port of the HD-TX-4KZ-111 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher.
4K60 4:4:4 and HDR support
The HD-TX-4KZ-111 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision video formats are also supported.
Compact, surface-mountable design
Compact in design, the HD-TX-4KZ-111 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TX-4KZ-111 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.

Specification Summary

Product Description

Crestron DM Lite HD-TX-4KZ-111 - video/audio extender

Device Type

Video/audio extender (transmitter)

Form Factor

Desktop / surface-mountable / rack mountable

Transmission Medium

CATx

Max Transfer Distance

70 m

Power

AC 100-240 V

Dimensions (WxDxH)

10.6 cm x 2.7 cm x 10.5 cm

Weight

339 g

Specifications

General

Device Type

Video/audio extender (transmitter)

Form Factor

Desktop / surface-mountable / rack mountable

Colour

Black

Networking

Connectivity Technology

Wired

Max Resolution

4096 x 2160 / 3840 x 2160 @ 60 Hz

Max Transfer Distance

70 m

Status Indicators

Link, power, USB, DM Lite

Features

DisplayPort Alternate mode, metal housing, vented sides, 4K60 8-bit 4:4:4 compatible, HDR10+ support, HDR10 support, Dolby Vision HDR support, Deep Colour support, Dolby Digital support, Dolby Digital EX support, Dolby Digital Plus support, Dolby TrueHD support, Dolby Atmos support, DTS support, DTS ES support, DTS-HD support, DTS-HD Master Audio support, DTS:X support, LPCM support, EDID Pass-Through, CEC passthrough

Compliant Standards

HDCP 2.3

Expansion / Connectivity

Interfaces

1 x DM Lite (output) - RJ-45 female ¦ 1 x USB (input) - Type C female

Miscellaneous

Included Accessories

2 mounting brackets

Compliant Standards

Intertek, IC, FCC Part 15 B

Power

Power Device

External power adapter

Voltage Required

AC 100-240 V

Dimensions & Weight

Width

10.6 cm

Depth

2.7 cm

Height

10.5 cm

Weight

339 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 90% RH (non-condensing)
