Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

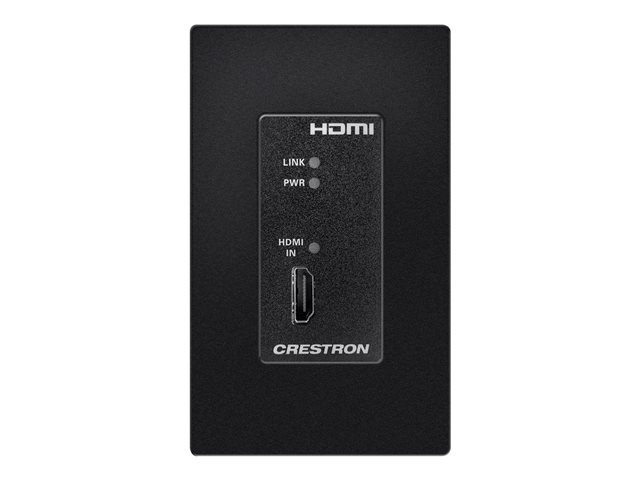

The HD-TX-4KZ-101-1G is a DM Lite 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite receiver or DMPS Lite switcher for the transmission of an HDMI signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-101-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.


Features Summary

  • Interoperability with a DM Lite receiver or DMPS Lite switcher
    The DM Lite output port of the HD-TX-4KZ-101-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher.
  • 4K60 4:4:4 and HDR support
    The HD-TX-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision video formats are also supported.
  • One-gang wall plate design
    The HD-TX-4KZ-101-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.

Specification Summary

Product Description
Crestron DM Lite HD-TX-4KZ-101-1G-B - video/audio extender - HDMI, DM Lite
Device Type
Video/audio extender (transmitter)
Form Factor
In-wall mountable
Data Link Protocol
HDMI, DM Lite
Max Transfer Distance
70 m
Power
AC 100-240 V
Dimensions (WxDxH)
4.4 cm x 5.6 cm x 10.5 cm
Weight
152 g

Specifications

General
Device Type
Video/audio extender (transmitter)
Form Factor
In-wall mountable
Colour
Black
Networking
Connectivity Technology
Wired
Data Link Protocol
HDMI, DM Lite
Max Resolution
4096 x 2160 / 3840 x 2160 @ 60 Hz
Max Transfer Distance
70 m
Status Indicators
Power, DM Lite, link, HDMI input
Features
EDID Pass-Through, metal housing, CEC passthrough, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, DTS support, DTS-HD support, Dolby Atmos support, DTS:X support, Dolby Digital EX support, chassis ground lug, Dolby Digital support, HDR10 support, Dolby Vision HDR support, HDR10+ support, Deep Colour support, 4K60 8-bit 4:4:4 compatible
Compliant Standards
HDCP 2.3
Expansion / Connectivity
Interfaces
1 x HDMI input - Type A female ¦ 1 x network (output (pass-through)) - RJ-45 ¦ 1 x power - terminal block
Miscellaneous
Included Accessories
Wall plate
Compliant Standards
FCC Part 15 B, IC
Power
Voltage Required
AC 100-240 V
Dimensions & Weight
Width
4.4 cm
Depth
5.6 cm
Height
10.5 cm
Weight
152 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 90% RH (non-condensing)
