NETGEAR Smart GS752TP - switch - 48 ports - smart

Images Manuals

Images for illustrative purposes

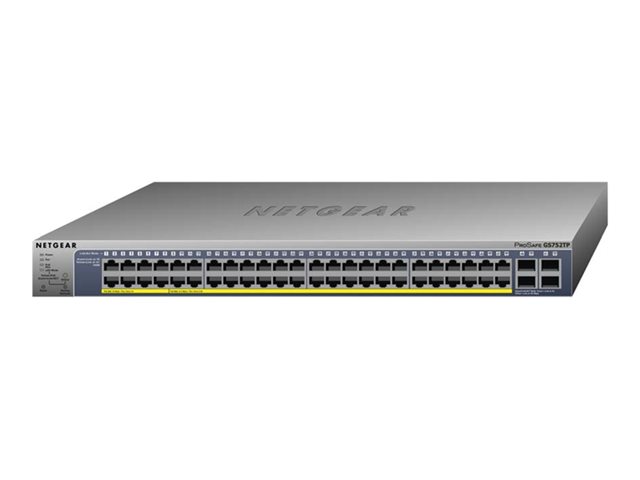

NETGEAR Smart GS752TP

Name: NETGEAR Smart GS752TP
Brand: NETGEAR
SKU: ECE8427038
Price: 689.75 EUR
Availability: InStock

View all NETGEAR Network Switches - Visit the NETGEAR Store (GS752TP-300EUS) - (ECE8427038)

Model: NETGEAR Smart

Smart GS752TP - Switch - L3 Lite - smart - 8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP - desktop, rack-mountable - PoE+ (384 W)

Designed for converged network, big or small
Build a future-proof network with NETGEAR
Network development made easy

FREE Delivery on orders over €250

50 Available to Ship
Order within 13Hrs 49Mins for: FREE Delivery (8 Jun or 9 Jun)

€689.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

GS752TP is Gigabit PoE/ PoE+ Smart Switche that comes with PoE capabilities on all ports and supports PoE+ with up to 30W of power budget on the first 8 ports, providing hardware investment protections so that the switch can support many more PoE powered devices and higher-powered devices down the road. There has also been an addition of high-powered PoE+ Smart Switch into the portfolio. It also comes with 4 dedicated Gigabit SFP ports for fiber connectivity.

Features Summary

Designed for converged network, big or small
Gigabit Speed with all ports capable of support either PoE or PoE+. Auto Voice VLAN for fast and reliable deployment of VoIP. Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system. Static routing, helps to route internal traffic for more efficient use of network resources. IGMP and MLD snooping, providing advanced multicast filtering.
Build a future-proof network with NETGEAR
Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups. Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network. PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network. 4 dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization. Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market. Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ). Dynamic VLAN assignment for easy user authentication and location-independent access to network.
Network development made easy
Auto Voice VLAN for easy development of VoIP. Auto Video for simple deployment of IP Surveillaince. ACL Wizard for a guided tour to set up your network access control. Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade. PoE Timer for scheduling on/off time of your PoE powered devices. With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.

Specification Summary

Product Description

NETGEAR Smart GS752TP - switch - 48 ports - smart - rack-mountable

Device Type

Switch - 48 ports - L3 Lite - smart

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

384 W

Performance

Bandwidth: 104 Gbps ¦ Packet buffer size: 8 MB

Capacity

Virtual interfaces (VLANs): 256 ¦ ACL entries: 480 ¦ Layer 2 multicast groups: 1024 ¦ Static routes: 32 ¦ Priority queues per port: 4

MAC Address Table Size

8K entries

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, HTTPS, TFTP, HTTP

Features

IGMP snooping, MLD snooping, VoIP support, 8MB packet buffer, static routing, QoS, 802.1x authentication, DHCP support, DHCP snooping, auto-sensing per device, flow control, full duplex mode, LLDP support, MSTP support, RSTP support, STP support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP client, ACL support, Port Security, DiffServ support, CoS, WRR queuing, ToS, DSCP support, port mirroring, SPQ, administrator's password, SNTP support, cable test, TFTP support, Syslog support, PoE timer, protected ports, DHCP filtering

Compliant Standards

IEEE 802.3at, IEEE 802.3af, IEEE 802.1x, IEEE 802.1p, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w

Dimensions (WxDxH)

44 cm x 31.6 cm x 4.3 cm

Weight

5.1 kg

Localisation

Europe

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

606449162462

General

Device Type

Switch - 48 ports - L3 Lite - smart

Enclosure Type

Desktop, rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

384 W

Performance

Bandwidth: 104 Gbps ¦ Packet buffer size: 8 MB

Capacity

Virtual interfaces (VLANs): 256 ¦ ACL entries: 480 ¦ Layer 2 multicast groups: 1024 ¦ Static routes: 32 ¦ Priority queues per port: 4

MAC Address Table Size

8K entries

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, HTTPS, TFTP, HTTP

Encryption Algorithm

SSL, TLS 1.0

Authentication Method

RADIUS, TACACS+

Features

Compliant Standards

Status Indicators

Power, PoE, link/activity, fan, port transmission speed, speed

Expansion / Connectivity

Interfaces

48 x 1000Base-T RJ-45 8 ports (PoE+) / 40 ports (PoE) ¦ 4 x 1000Base-X SFP

Power

Power Device

Internal power supply

Power Consumption Operational

512.8 Watt

Miscellaneous

Rack Mounting Kit

Included

MTBF

220,447 hours

Compliant Standards

TLS v1.0, CCC, CISPR 22, C-Tick Class A, EN50082-1, EN 55022 Class A, EN55024, VCCI Class A, FCC Part 15 A, CSA 22.2 No. 950, cUL, EN 60950, IEC 950, UL 1950, RoHS, WEEE

Localisation

Europe

Dimensions & Weight

Width

44 cm

Depth

31.6 cm

Height

4.3 cm

Weight

5.1 kg

Manufacturer Warranty
