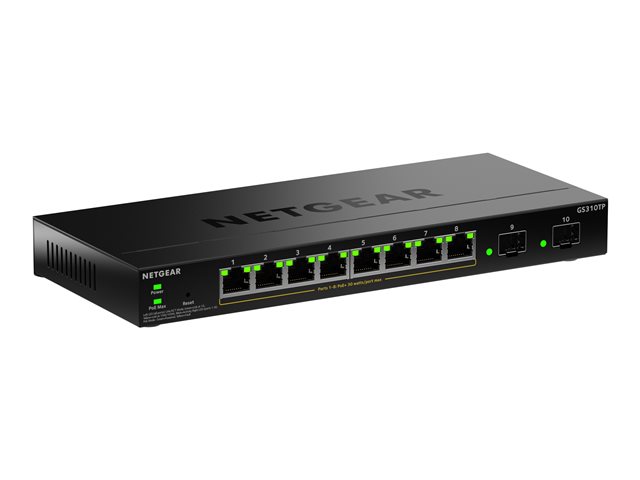

NETGEAR GS310TPv2

View all NETGEAR Network Switches - Visit the NETGEAR Store (GS310TP-200EUS) - (MMECQ73647)

GS310TPv2 - switch - 8 ports - smart

High capacity for network management
Efficient power delivery
Robust environmental resilience
Advanced network security
Flexible connectivity options

FREE Delivery on orders over €250

16 Available to Ship
Order within 16Hrs 20Mins for: Delivery (8 Jun or 9 Jun)

€177.08 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The NETGEAR GS310TPv2 is a versatile switch designed for both desktop and wall-mounted configurations. It supports up to 512 VLANs, 8 ARP entries, and 32 static IPv4 routes, making it suitable for small to medium-sized businesses that need to expand their network capabilities. Its Power over Ethernet (PoE+) support allows for powering devices efficiently, with a total PoE budget of 55 W. Features such as VLAN support, IGMP snooping, and advanced Quality of Service (QoS) ensure optimized performance and streamlined network management.

Ideal for various environments, the GS310TPv2 operates within a temperature range of 0°C to 40°C and withstands humidity levels up to 95% RH. The device is fanless, providing silent operation, and its compact design offers flexibility for various setups. Enhanced security features, including Access Control List (ACL) support and DoS attack prevention, are integrated within the switch, ensuring that your network remains secure and efficient.

Specification Summary

Product Description

NETGEAR GS310TPv2 - switch - 8 ports - smart

Device Type

Switch - 8 ports - 2+/L3 Lite - smart

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

55 W

Performance

Bandwidth: 20 Gbps ¦ Forwarding rate (64-byte packets): 14 Mpps

Capacity

Packet buffer memory: 512 KB ¦ Multicast groups: 256 ¦ VLANs supported: 64 ¦ DHCP snooping entries: 256 ¦ Priority queues: 8 ¦ IPv4 routes (static): 32 ¦ ARP entries: 512

MAC Address Table Size

8K entries

Jumbo Frame Support

10000 bytes

Routing Protocol

IGMPv2, IGMP, IGMPv3

Remote Management Protocol

SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, IPv4, Syslog, HTTP, HTTPS, TFTP

Features

Fanless, Auto VoIP, store and forward, WRR, SP, MAC based VLAN, Voice VLAN, auto voice VLAN, auto video VLAN, ICMP IRDP, RSTP support, MSTP support, STP support, DoS attack prevention, cable test, many-to-one port mirroring, port rate limiting, IGMP snooping, EEE, protected ports, DHCP snooping, dynamic VLAN assignment, dual firmware images, VLAN support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Syslog support, port mirroring, DiffServ support, QoS, CoS, ToS, Guest VLAN, MAC lockdown, SNTP client, DHCP client, ACL support, PoE on/off switch, PoE scheduling, 802.1x authentication

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)

Power

DC 54 V 1.25 A

Dimensions (WxDxH)

23.6 cm x 10.1 cm x 3 cm

Weight

610 g

Localisation

Europe

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0606449175929

General

Device Type

Switch - 8 ports - 2+/L3 Lite - smart

Enclosure Type

Desktop, wall-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

55 W

Performance

Bandwidth: 20 Gbps ¦ Forwarding rate (64-byte packets): 14 Mpps

Capacity

Packet buffer memory: 512 KB ¦ Multicast groups: 256 ¦ VLANs supported: 64 ¦ DHCP snooping entries: 256 ¦ Priority queues: 8 ¦ IPv4 routes (static): 32 ¦ ARP entries: 512

MAC Address Table Size

8K entries

Jumbo Frame Support

10000 bytes

Routing Protocol

IGMPv2, IGMP, IGMPv3

Remote Management Protocol

SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, IPv4, Syslog, HTTP, HTTPS, TFTP

Features

Compliant Standards

Processor

: 500 MHz

RAM

128 MB

Flash Memory

32 MB

Status Indicators

Link/activity/speed, PoE, PoE max

Expansion / Connectivity

Interfaces

8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP

Power

Power Device

External power adapter

Voltage Required

DC 54 V

Electric Current Required

1.25 A

Power Consumption Stand by

4.3 Watt

Miscellaneous

Included Accessories

Power cable (EU), rubber feet

MTBF

1,200,041 hours

Compliant Standards

AS/NZS CISPR32:2013 Class A, VCCI-CISPR 32:2016 Class A, FCC CFR47 Part 15 Class A, ANSI C63.4:2014, BSMI CNS 13438 Class A, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, AN/NZS 60950.1:2015, BSMI CNS 14336-1

Localisation

Europe

Dimensions & Weight

Width

23.6 cm

Depth

10.1 cm

Height

3 cm

Weight

610 g

Manufacturer Warranty
