Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The GS1920 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations future proofing your network to ensure easy growth down the road.


Specification Summary

Product Description

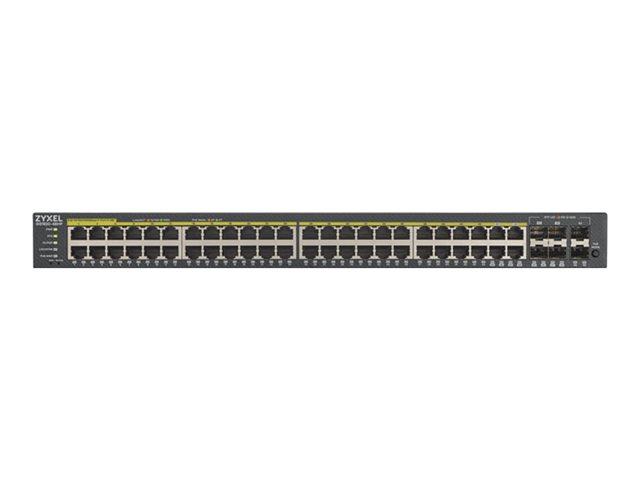

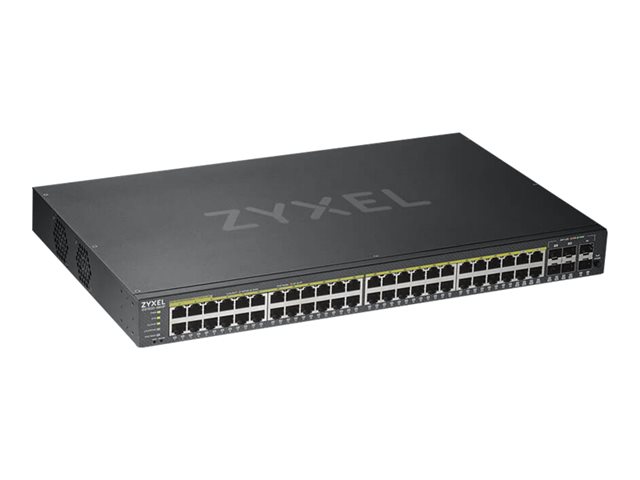

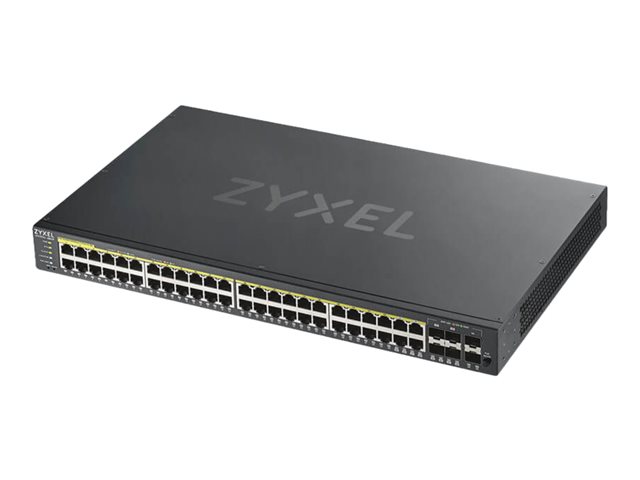

Zyxel GS1920-48HPv2 - switch - 48 ports - smart - rack-mountable
Device Type
Switch - 48 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Switching capacity: 100 Gbps ¦ Forwarding rate: 74 Mpps
Capacity
QoS hardware queues per port: 8
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Features
Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, QoS, RADIUS support, MLD snooping, DHCP relay, Port Security, SNMP trap, DHCP client, MIB, MVR, GVRP, dual firmware images, SPQ, NDP, port isolation, CoS, IGMP proxy, 802.1x authentication, Duplicated Address Detection, cloud managed, DSCP support, 1.5MB packet buffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, ICMP, VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, WRR, MAC based VLAN, VLAN Tagging, port-based VLAN, Unknown Storm Control, MRSTP, MAC freeze
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
44.1 cm x 27 cm x 4.4 cm
Weight
4.1 kg
Localisation
United Kingdom
Manufacturer Warranty
Limited lifetime warranty

Specifications

EAN / GTIN:
4718937601981
General
Device Type
Switch - 48 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Switching capacity: 100 Gbps ¦ Forwarding rate: 74 Mpps
Capacity
QoS hardware queues per port: 8
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+
Features
Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, QoS, RADIUS support, MLD snooping, DHCP relay, Port Security, SNMP trap, DHCP client, MIB, MVR, GVRP, dual firmware images, SPQ, NDP, port isolation, CoS, IGMP proxy, 802.1x authentication, Duplicated Address Detection, cloud managed, DSCP support, 1.5MB packet buffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, ICMP, VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, WRR, MAC based VLAN, VLAN Tagging, port-based VLAN, Unknown Storm Control, MRSTP, MAC freeze
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM
256 MB
Flash Memory
32 MB
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP ¦ 2 x 1000Base-X SFP
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
474.3 Watt
Miscellaneous
Rack Mounting Kit
Included
MTBF
502,509 hours
Compliant Standards
BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A
Localisation
United Kingdom
Dimensions & Weight
Width
44.1 cm
Depth
27 cm
Height
4.4 cm
Weight
4.1 kg
Dimensions & Weight (Shipping)
Shipping Width
61.6 cm
Shipping Depth
35.5 cm
Shipping Height
10.7 cm
Shipping Weight
5.25 kg
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
