EAN / GTIN:
4718937626830

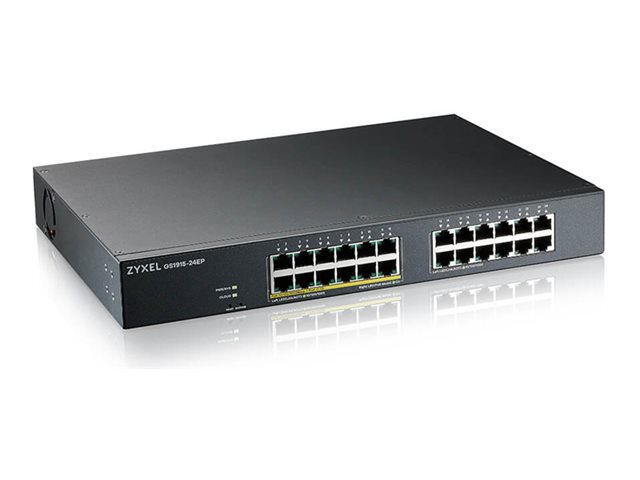

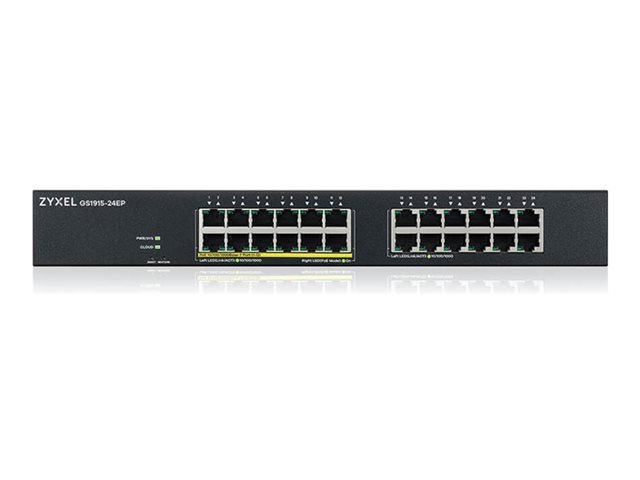

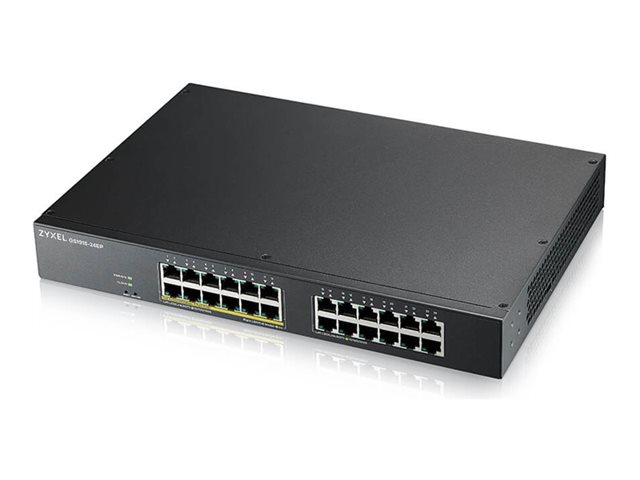

Device Type
Switch - 24 ports - smart
Enclosure Type
Desktop, wall-mountable
Ports
24 x 10/100/1000 (12 PoE)
Power Over Ethernet (PoE)
PoE
Performance
Switching capacity: 48 Gbps ¦ Forwarding performance: 35.7 Mpps
Capacity
Packet buffer size: 525000
MAC Address Table Size
8K entries
Routing Protocol
IGMP, IGMPv2, IGMPv3, STP, RSTP
Remote Management Protocol
SSH-2, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, Syslog
Authentication Method
RADIUS
Features
Fanless, flow control, STP support, RSTP support, Loop Guard, VLAN trunking, Voice VLAN, MAC address filtering, port isolation, Port Security, MAC freeze, DHCP snooping, SPQ, WRR queuing, WFQ, Storm Control, DLF, DSCP support, Syslog support, DHCP client, NTP support, port mirroring, schedule PoE, IGMP snooping, IPv6 support, firmware upgradable, QoS, LLDP support, LLDP-MED, CoS, ICMP, rate limit, LACP support, MIB support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP)
Interfaces
12 x 1000Base-T RJ-45 PoE+ ¦ 12 x 1000Base-T RJ-45

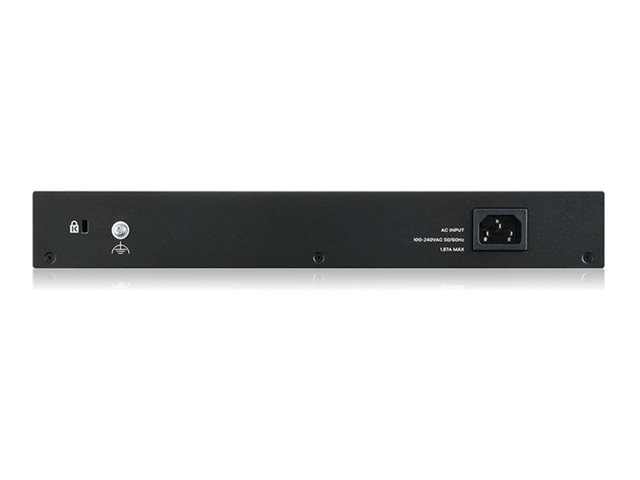

Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
166.1 Watt
Included Accessories
Rack mount kit
Compliant Standards
FCC, RCM, BSMI CNS 13438, LVD, EN 62368-1, BSMI CNS 14336-1, RoHS, EMC
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
