EAN / GTIN:
4718937604517

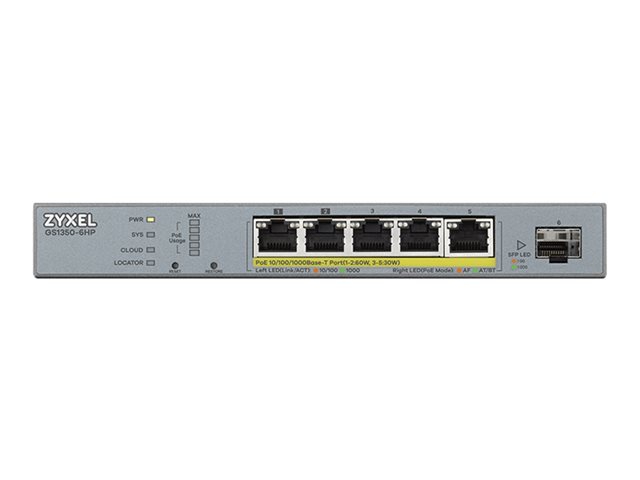

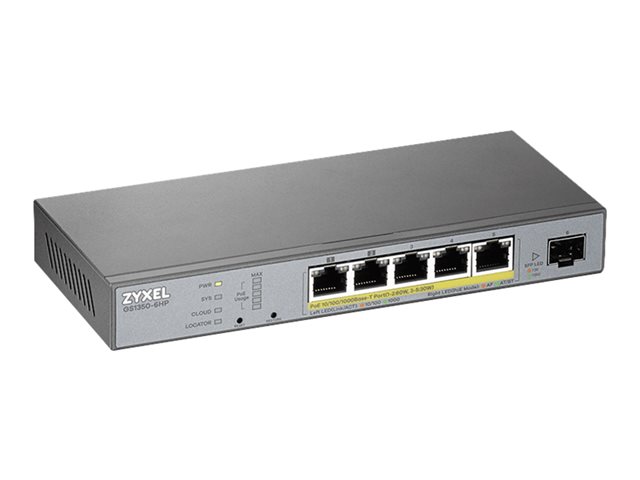

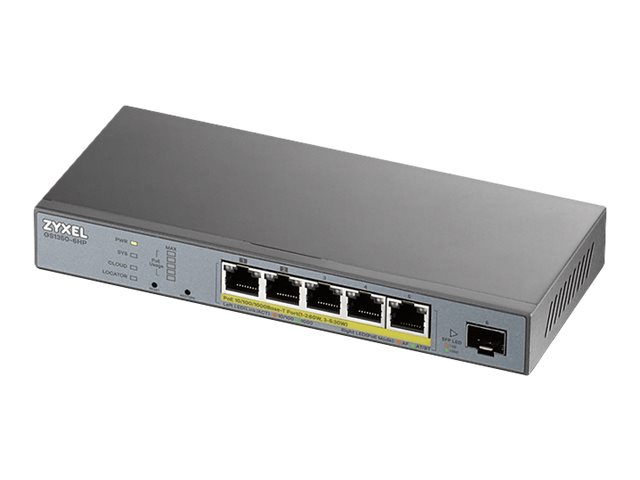

Device Type
Switch - 6 ports - smart
Ports
5 x 10/100/1000 (PoE+) + 1 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 12 Gbps ¦ Forwarding rate: 8.9 Mpps
MAC Address Table Size
8K entries
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
SSH-2, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, CLI, Telnet, NTP
Authentication Method
Secure Shell v.2 (SSH2), RADIUS
Features
525KB packet buffer, 4KV Surge protection, 8KV/15KV ESD Protector, flow control, Energy Efficient Ethernet, CoS, STP support, RSTP support, Loop Guard, dual image support, VLAN support, port-based VLAN, Voice VLAN, MAC based VLAN, VLAN trunking, MAC address filtering, port isolation, CPU protection, DHCP snooping, QoS, SPQ, WFQ, WRR, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, DLF, DSCP support, IGMP snooping, IGMP filtering, IGMP proxy, IGMP querier, IGMP throttling, SNMP trap, Syslog support, LLDP-MED, schedule PoE, IPv6 support, IPv4 and IPv6 dual stack, NDP, DHCP client, DHCP relay, port mirroring, security lock slot (cable lock sold separately), fanless
Compliant Standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3bt
Status Indicators
Power, system, PoE, cloud, locator, link/activity
Interfaces
5 x Gigabit LAN RJ-45 3 ports (PoE+) / 2 ports (PoE) - 60 W ¦ 1 x Gigabit LAN SFP uplink
Power Device
External power adapter
Power Provided
DC 52 - 57 V
Voltage Required
AC 120/230 V (50/60 Hz)
Included Accessories
Wall mounting kit
Compliant Standards
EMC, FCC Class A certified, C-Tick Class A, BSMI CNS 13438, LVD, EN 62368-1, BSMI CNS 14336-1, RoHS
Localisation
United Kingdom
Software / System Requirements
Software Included
Zyxel One Network Utility
Dimensions & Weight (Shipping)
Service & Support
Limited warranty - lifetime
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
