Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations.


Specification Summary

Product Description

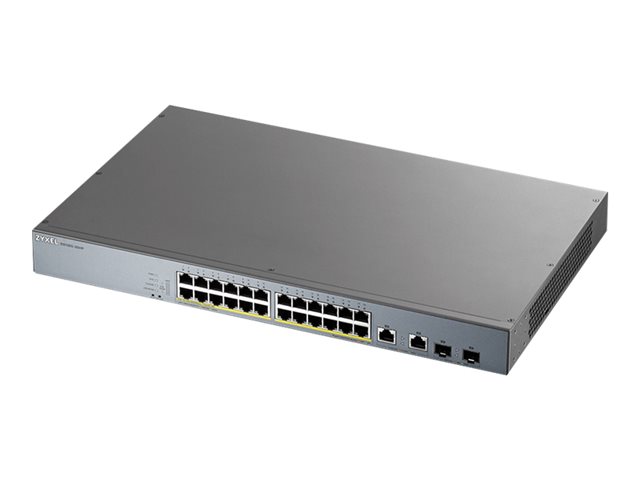

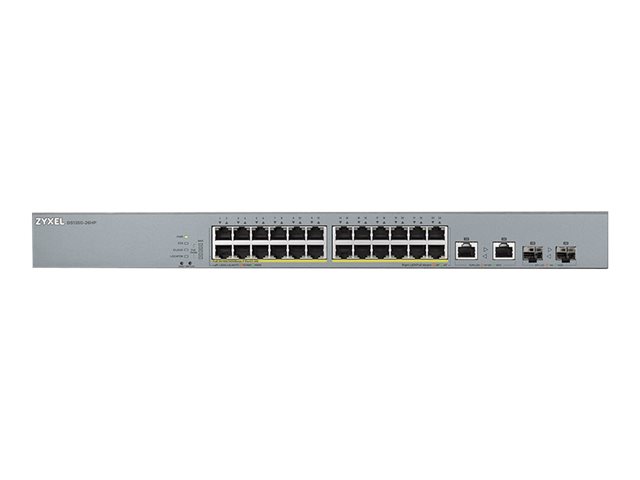

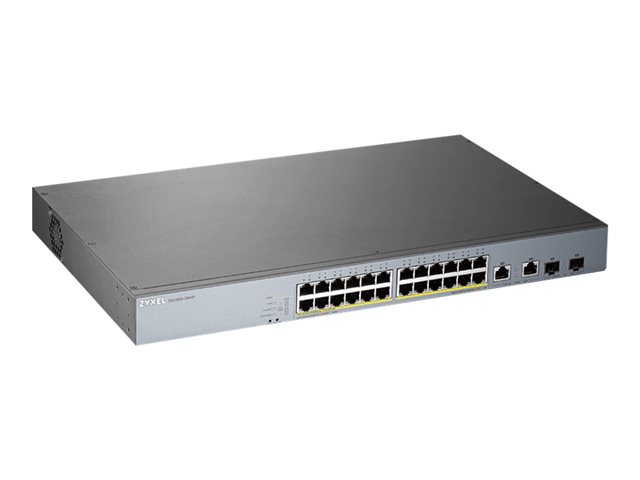

Zyxel GS1350-26HP - switch - 24 ports - smart - rack-mountable
Device Type
Switch - 24 ports - smart
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Switching capacity: 52 Gbps ¦ Forwarding rate: 38.7 Mpps ¦ Packet buffer size: 525 KB
MAC Address Table Size
8K entries
Routing Protocol
STP, RSTP, IGMP, IGMPv2, IGMPv3
Remote Management Protocol
RSTP, SSH-2, HTTPS, RADIUS, DHCP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, CLI, Telnet, NTP
Features
4KV Surge protection, 8KV/15KV ESD Protector, flow control, EEE, CoS, LACP, Loop Guard, dual firmware images, VLAN trunking, MAC address filtering, port isolation, CPU protection, DHCP snooping, SPQ, WRR, WFQ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DSCP support, IGMP snooping, IGMP filtering, Syslog support, LLDP-MED, LLDP support, NDP, DHCP client, DHCP relay, MIB, security slot (Kensington security lock compatible)
Compliant Standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP)
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
44.1 cm x 27 cm x 4.4 cm
Weight
3.58 kg
Localisation
United Kingdom

Specifications

EAN / GTIN:
4718937604470
General
Device Type
Switch - 24 ports - smart
Enclosure Type
Desktop, rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Switching capacity: 52 Gbps ¦ Forwarding rate: 38.7 Mpps ¦ Packet buffer size: 525 KB
MAC Address Table Size
8K entries
Routing Protocol
STP, RSTP, IGMP, IGMPv2, IGMPv3
Remote Management Protocol
RSTP, SSH-2, HTTPS, RADIUS, DHCP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, CLI, Telnet, NTP
Encryption Algorithm
SSL, SHA-2
Authentication Method
Secure Shell v.2 (SSH2), RADIUS
Features
4KV Surge protection, 8KV/15KV ESD Protector, flow control, EEE, CoS, LACP, Loop Guard, dual firmware images, VLAN trunking, MAC address filtering, port isolation, CPU protection, DHCP snooping, SPQ, WRR, WFQ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DSCP support, IGMP snooping, IGMP filtering, Syslog support, LLDP-MED, LLDP support, NDP, DHCP client, DHCP relay, MIB, security slot (Kensington security lock compatible)
Compliant Standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces
24 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
448.9 Watt
Miscellaneous
Rack Mounting Kit
Included
MTBF
888,495 hours
Compliant Standards
FCC, C-Tick Class A, BSMI CNS 13438, EN 62368-1, LVD, BSMI CNS 14336-1, RoHS
Localisation
United Kingdom
Dimensions & Weight
Width
44.1 cm
Depth
27 cm
Height
4.4 cm
Weight
3.58 kg
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
