Zyxel GS1350-12HP

View all ZYXEL Network Switches - Visit the ZYXEL Store (GS1350-12HP-GB0101F) - (MMEB777029)

GS1350-12HP - switch - 8 ports - smart - rack-mountable

New outlook
Easy for long-distance deployment

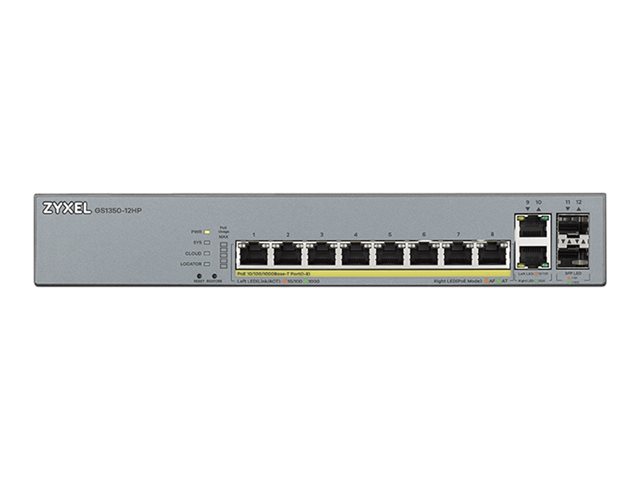

High power budget, intuitive front panel design

FREE Delivery on orders over €250

5 Available to Ship
Order within 23Hrs 32Mins for: FREE Delivery (9 Jun or 10 Jun)

€252.77 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations.

Features Summary

New outlook
Coated in titanium gray, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.
Easy for long-distance deployment
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.
High power budget, intuitive front panel design
The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations.

Specification Summary

Product Description

Zyxel GS1350-12HP - switch - 8 ports - smart - rack-mountable

Device Type

Switch - 8 ports - smart

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

130 W

Performance

Switching capacity: 24 Gbps ¦ Forwarding rate: 17.8 Mpps ¦ Packet buffer size: 525 KB

MAC Address Table Size

8K entries

Routing Protocol

STP, RSTP, IGMP, IGMPv2, IGMPv3

Remote Management Protocol

RSTP, SSH, HTTPS, RADIUS, DHCP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, CLI, Telnet, NTP

Features

4KV Surge protection, 8KV/15KV ESD Protector, flow control, EEE, CoS, LACP, Loop Guard, dual firmware images, VLAN trunking, MAC address filtering, port isolation, CPU protection, DHCP snooping, SPQ, WRR, WFQ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DSCP support, IGMP snooping, IGMP filtering, Syslog support, LLDP-MED, LLDP support, NDP, DHCP client, DHCP relay, MIB

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP)

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

26.7 cm x 16.2 cm x 4.4 cm

Weight

1.63 kg

Localisation

United Kingdom

Specifications

EAN / GTIN:

4718937604395

General

Device Type

Switch - 8 ports - smart

Enclosure Type

Desktop, rack-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

130 W

Performance

Switching capacity: 24 Gbps ¦ Forwarding rate: 17.8 Mpps ¦ Packet buffer size: 525 KB

MAC Address Table Size

8K entries

Routing Protocol

STP, RSTP, IGMP, IGMPv2, IGMPv3

Remote Management Protocol

RSTP, SSH, HTTPS, RADIUS, DHCP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, CLI, Telnet, NTP

Encryption Algorithm

SSL, SHA-2

Authentication Method

Secure Shell (SSH), RADIUS

Features

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP)

Expansion / Connectivity

Interfaces

8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T RJ-45 uplink ¦ 2 x 1000Base-X SFP uplink

Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

160.3 Watt

Miscellaneous

Rack Mounting Kit

Included

MTBF

1,065,025.45 hours

Compliant Standards

FCC, C-Tick Class A, BSMI CNS 13438, EN 62368-1, LVD, BSMI CNS 14336-1, RoHS

Localisation

United Kingdom

Dimensions & Weight

Width

26.7 cm

Depth

16.2 cm

Height

4.4 cm

Weight

1.63 kg

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 95% (non-condensing)
