Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ZyXEL GS1200 series Web Managed PoE Gigabit Switch is more than just a typical PoE switch. It comes with an easy-to-use Web configuration to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simple control functions for office network management.

The simple control functions include dividing a network into one or more smaller groups for security and resource planning. The ZyXEL GS1200 series' configurable QoS feature also enables better traffic management.

The ZyXEL GS1200 series optimizes media traffic delivery by supporting IGMP Snooping v1/v2 and v3 which is compatible with configurable IGMP router port selection.

The ZyXEL GS1200 series is firmware-upgradable for better support, and configuration can be backed up and restored to the system as well.


Features Summary

  • Smart features
    The ZyXEL GS1200 series Web Managed PoE Gigabit Switch provides simple control for better manageability. Unlike other advanced but complex managed switches, the ZyXEL GS1200 series is suitable for most users and provides an affordable solution with fundamental features.
  • Easy configuration
    The ZyXEL GS1200 series does not require any additional software. It is more visualized with an easy, friendly and intuitive Web GUI that helps configuration tasks to be completed in just simple clicks. It is much easier for small office users.
  • PoE support
    The ZyXEL GS1200-5HP delivers PoE capabilities of IEEE 802.3at (30 watts/per port with total PoE power budget 60 watts) to supply power to PoE-capable network devices such as wireless and Bluetooth APs, IP cameras and IP phones. Web GUI management enables you to monitor power status of each port and/or to reboot the network devices.
  • Energy saving for IEEE 802.3az
    The ZyXEL GS1200 series built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffics and adjusts power consumptions dynamically to reduce power consumption during the low link utilization periods.

Specification Summary

Product Description

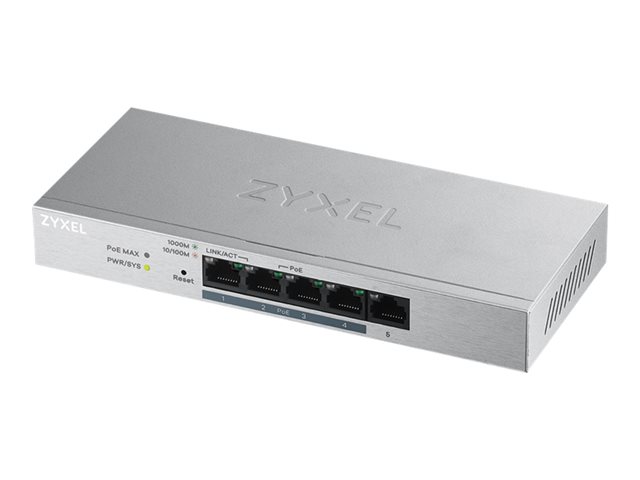

Zyxel GS1200-5HP v2 - switch - 5 ports - Managed
Device Type
Switch - 5 ports - Managed
Subtype
Gigabit Ethernet
Ports
1 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
60 W
Performance
Switching capacity: 10 Gbps
Capacity
Multicast groups: 128
MAC Address Table Size
2000 entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
HTTP
Features
Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, firmware upgradable, wall mountable, QoS, fanless, 128KB packet buffer, Energy Efficient Ethernet, CoS, tagged VLAN, metal housing, Link Aggregation, WRR, LDF support
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Dimensions (WxDxH)
19.3 cm x 8.4 cm x 2.6 cm
Weight
392 g
Localisation
United Kingdom

Specifications

EAN / GTIN:
4718937598724
General
Device Type
Switch - 5 ports - Managed
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
1 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
60 W
Performance
Switching capacity: 10 Gbps
Capacity
Multicast groups: 128
MAC Address Table Size
2000 entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
HTTP
Features
Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, firmware upgradable, wall mountable, QoS, fanless, 128KB packet buffer, Energy Efficient Ethernet, CoS, tagged VLAN, metal housing, Link Aggregation, WRR, LDF support
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Built-in Devices
Power on/off switch
Status Indicators
Port status, power, PoE
Expansion / Connectivity
Interfaces
4 x 1000Base-TX RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-TX RJ-45
Power
Power Device
External power adapter
Power Consumption Operational
72 Watt
Miscellaneous
Compliant Standards
BSMI, FCC, LVD, EMC Class B
Localisation
United Kingdom
Dimensions & Weight
Width
19.3 cm
Depth
8.4 cm
Height
2.6 cm
Weight
392 g
Dimensions & Weight (Shipping)
Shipping Width
21 cm
Shipping Depth
13.2 cm
Shipping Height
7.8 cm
Shipping Weight
950 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
