EAN / GTIN:
0606449174717
Device Type

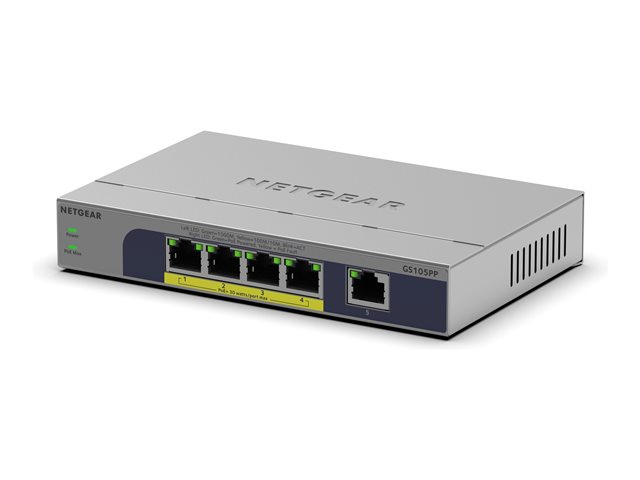

Switch - 5 ports - unmanaged
Enclosure Type
Desktop, wall-mountable
Ports
1 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
Performance
Packet buffer size: 128 KB ¦ Bandwidth: 10 Gbps
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Fanless, non-blocking architecture, EEE, security slot (Kensington security lock compatible), metal housing, Auto Power Down, QoS, WRR queuing, CoS, flow control, VoIP support, LED status indicators, store and forward, DSCP Marking
Compliant Standards
IEEE 802.3az, IEEE 802.3at, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3x, IEEE 802.3af
Status Indicators
Power, PoE max, link/activity/speed
Interfaces
4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45
Power Device
External power adapter
Electric Current Required
1.66 A
Power Consumption Stand by
0.9 Watt
Included Accessories
Power adapter, power cable, wall mounting kit
Compliant Standards
Plug and Play, FCC Class B certified, CAN, ICES, CB, LVD, CSA
Localisation
Europe, United Kingdom
Service & Support
Limited warranty - lifetime with product registration
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% RH (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% RH (non-condensing)
