Startech Cisco GLC-LH-SMD Compatible SFP Module, 1000BASE-LX/LH, 1GbE Single Mode (SMF) Fiber SMF Optic Transceiver, 1GE Gigabit Ethernet, LC Connecto

Images for illustrative purposes

Startech Cisco GLC-LH-SMD Compatible SFP Module, 1000BASE-LX/LH, 1GbE Single Mode (SMF) Fiber SMF Optic Transceiver, 1GE Gigabit Ethernet, LC Connecto

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (GLCLHSMD10ST) - (WCEGLCLHSMD10ST)

Startech Cisco GLC-LH-SMD Compatible SFP Module, 1000BASE-LX/LH, 1GbE Single Mode (SMF) Fiber SMF Optic Transceiver, 1GE Gigabit Ethernet, LC Connector, 10km 1310nm, Firepower, ASR920 (GLCLHSMD10ST) - SFP (mini-GBIC) transceiver module - 1GbE

Reliable connectivity
Versatile temperature range
Enhanced monitoring capabilities

FREE Delivery on orders over €250

5 Available to Ship
Order within 8Hrs 54Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€378.64~~

€339.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The GLCLHSMD10ST is a ten-pack of our Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

Wavelength: 1310 nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Single Mode / Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 200,000 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP (mini-GBIC) transceiver module - LC

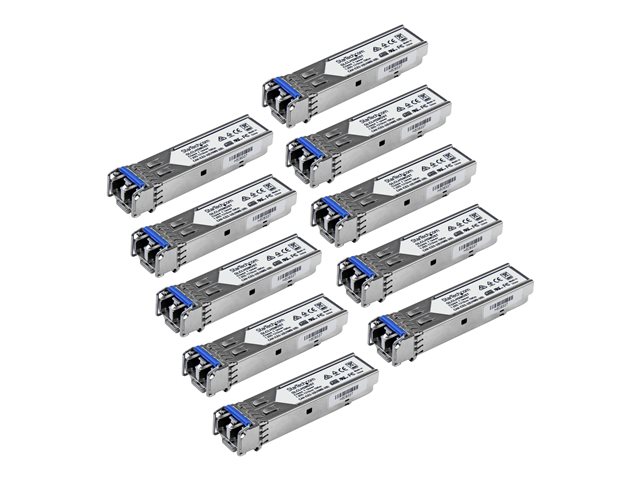

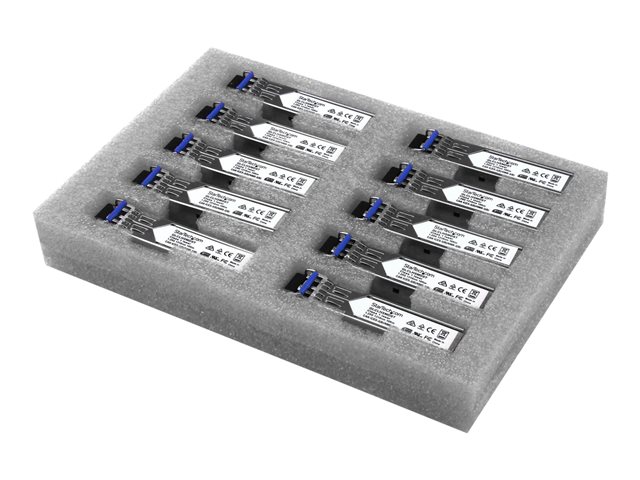

Packaged Quantity

10 (specifications are for single item)

Form Factor

Plug-in module

Cabling Type

1000Base-LX, 1000Base-LH

Data Transfer Rate

1.25 Gbps

Optical Wave Length

1310 nm

Data Link Protocol

1GbE

Max Transfer Distance

10 km

OEM Manufacturer Equivalent Part Number

Cisco GLC-LH-SMD

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0065030864336

General

Packaged Quantity

10 (specifications are for single item)

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Networking

Connectivity Technology

Wired

Cabling Type

1000Base-LX, 1000Base-LH

Data Link Protocol

1GbE

Data Transfer Rate

1.25 Gbps

Optical Wave Length

1310 nm

Max Transfer Distance

10 km

Features

Auto-uplink (auto MDI/MDI-X), full duplex mode, Digital Diagnostics Monitoring Interface (DDMI)

Compliant Standards

IEEE 802.3z

Expansion / Connectivity

Interfaces

1 x Ethernet 1000Base-LX/1000Base-LH - LC female x 2

Miscellaneous

Compliant Standards

UL, FCC, RoHS, MSA

OEM Manufacturer Equivalent Part Number

Cisco GLC-LH-SMD

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C
