EAN / GTIN:
0790069479878
Device Type
Wireless router - 4-port switch (integrated)
Connectivity Technology
Wired, wireless
Data Link Protocol
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Ethernet, Fast Ethernet, Gigabit Ethernet
Frequency Band
2.4 GHz / 5 GHz
Data Transfer Rate
7.2 Gbps
Performance
Maximum data rate (2.4 GHz): 1376 Mbps ¦ Maximum data rate (5 GHz): 5764 Mbps ¦ 5G SA downstream: 7.01 Gbps ¦ 5G NSA downstream: 5.67 Gbps ¦ 5G SA upstream: 2.5 Gbps ¦ 5G NSA upstream: 1.46 Gbps ¦ LTE downstream: 1.6 Gbps ¦ LTE upstream: 211 Mbps ¦ DC-HSPA downlink bandwidth: 42.2 Mbps ¦ DC-HSPA uplink bandwidth: 11.530 Mbps
Capacity
Connected devices: up to 256
Encryption Algorithm
WPA, WPA2, WPA3, WPS
Features
WPS button, reset button, WPS, anti-spoofing protection, DMZ support, IP address filtering, SPIF, MLO, automated failover, seamless switching
Compliant Standards
IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.3u, IEEE 802.3ab
Status Indicators
Power, status, WPS
Line Coding Format
4096 QAM
Mobile Communication Protocol
5G NR, DC-HSDPA, LTE
Cellular Band
5G n1, 5G n20, 5G n28, 5G n3, 5G n38, 5G n40, 5G n41, 5G n5, 5G n7, 5G n75, 5G n76, 5G n77, 5G n78, 5G n8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B5, LTE B7, LTE B8, WCDMA B1, WCDMA B5, WCDMA B8
Internet of Things (IoT) Compatible
Yes
Communications Technology
5G, Wi-Fi
Interfaces

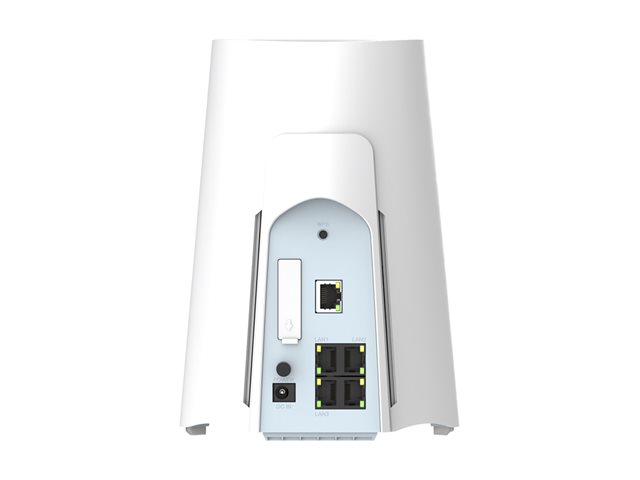

LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 ¦ Antenna: 2 x TS-9
Expansion Slots
1 (total) / 1 (free) x Nano-SIM
Power Device
External power adapter
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
