Startech Juniper EX-SFP-1GE-SX Compatible SFP Modu

Images Manuals

Startech Juniper EX-SFP-1GE-SX Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector,

Images for illustrative purposes

Startech Juniper EX-SFP-1GE-SX Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector,

Name: Startech Juniper EX-SFP-1GE-SX Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector,
Brand: STARTECH.COM
SKU: MMEV933899
Price: 47.64 EUR
Availability: InStock

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (EXSFP1GESXST) - (MMEV933899)

Startech Juniper EX-SFP-1GE-SX Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, Mini GBIC Module - Lifetime Warranty (EXSFP1GESXST)

FREE Delivery on orders over €250

9 Available to Ship
Order within 8Hrs 0Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€63.09~~

€47.64 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

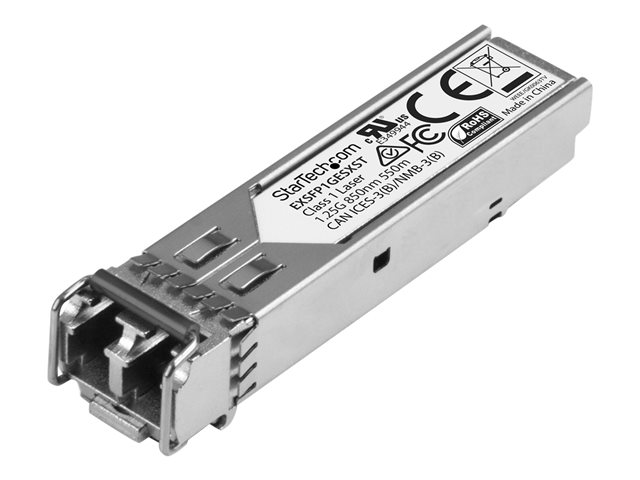

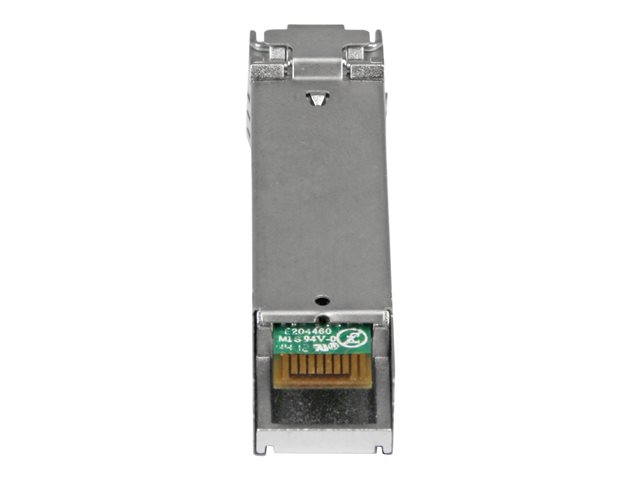

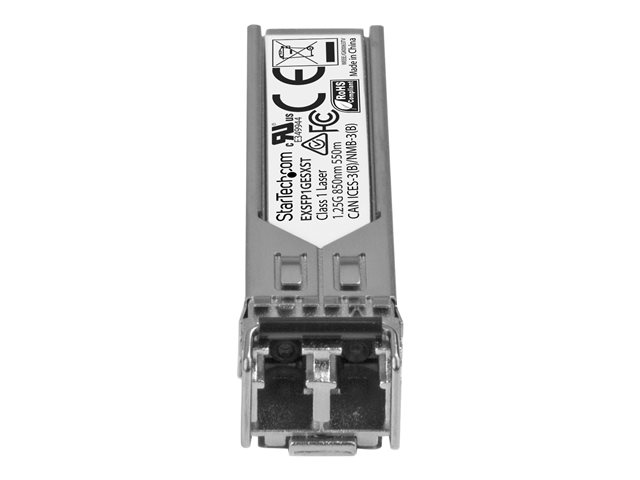

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty. The EXSFP1GESXST is a Juniper EX-SFP-1GE-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

Wavelength: 850 nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Multimode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 550 m (1804 ft)

MTBF: 3,381,761 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP (mini-GBIC) transceiver module - LC multi-mode

Form Factor

Plug-in module

Cabling Type

1000Base-SX

Data Transfer Rate

1.25 Gbps

Optical Wave Length

850 nm

Data Link Protocol

1GbE

Max Transfer Distance

550 m

OEM Manufacturer Equivalent Part Number

Juniper EX-SFP-1GE-SX

Dimensions (WxDxH)

1.37 cm x 5.66 cm x 1.25 cm

Weight

28 g

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0065030868631

General

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Colour

Silver

Networking

Connectivity Technology

Wired

Cabling Type

1000Base-SX

Data Link Protocol

1GbE

Data Transfer Rate

1.25 Gbps

Optical Wave Length

850 nm

Max Transfer Distance

550 m

Features

Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)

Compliant Standards

IEEE 802.3z

Expansion / Connectivity

Interfaces

1 x Ethernet 1000Base-SX - LC multi-mode female

Miscellaneous

Compliant Standards

UL, FCC, RoHS, MSA

OEM Manufacturer Equivalent Part Number

Juniper EX-SFP-1GE-SX

Dimensions & Weight

Width

1.37 cm

Depth

5.66 cm

Height

1.25 cm

Weight

28 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5 - 95%
