Startech Juniper EX-SFP-1GE-LX Compatible SFP Modu

Images Manuals

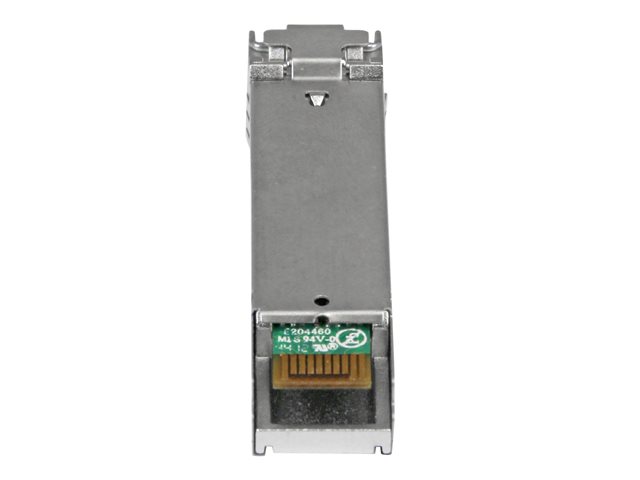

Startech Juniper EX-SFP-1GE-LX Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connec

Images for illustrative purposes

Startech Juniper EX-SFP-1GE-LX Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connec

Name: Startech Juniper EX-SFP-1GE-LX Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connec
Brand: STARTECH.COM
SKU: MMEV933887
Price: 49.91 EUR
Availability: InStock

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (EXSFP1GELXST) - (MMEV933887)

Startech Juniper EX-SFP-1GE-LX Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 10km, 1310nm, DDM, Mini GBIC - Lifetime Warranty (EXSFP1GELXST) -

FREE Delivery on orders over €250

SPO - THIS IS A SPECIAL ORDER ITEM AND CANNOT BE RETURNED AS UNWANTED OR CANCELLED.

5 Available to Ship
Order within 9Hrs 32Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€64.56~~

€49.91 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The EXSFP1GELXST is a Juniper EX-SFP-1GE-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

Wavelength: 1310 nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 3,092,408 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP (mini-GBIC) transceiver module - LC single-mode

Form Factor

Plug-in module

Cabling Type

1000Base-LX

Data Transfer Rate

1.25 Gbps

Optical Wave Length

1310 nm

Data Link Protocol

1GbE

Max Transfer Distance

10 km

OEM Manufacturer Equivalent Part Number

Juniper EX-SFP-1GE-LX

Dimensions (WxDxH)

1.37 cm x 5.66 cm x 1.25 cm

Weight

28 g

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0065030869294

General

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Colour

Silver

Networking

Connectivity Technology

Wired

Cabling Type

1000Base-LX

Data Link Protocol

1GbE

Data Transfer Rate

1.25 Gbps

Optical Wave Length

1310 nm

Max Transfer Distance

10 km

Features

Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)

Compliant Standards

IEEE 802.3z

Expansion / Connectivity

Interfaces

1 x Ethernet 1000Base-LX - LC single-mode female

Miscellaneous

Compliant Standards

UL, FCC, RoHS, MSA

OEM Manufacturer Equivalent Part Number

Juniper EX-SFP-1GE-LX

Dimensions & Weight

Width

1.37 cm

Depth

5.66 cm

Height

1.25 cm

Weight

28 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5 - 95%
