Intel Ethernet Converged Network Adapter X710-DA4

Images Manuals

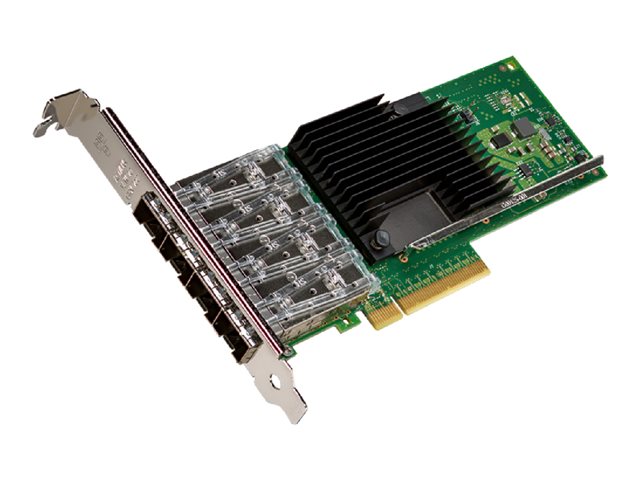

Images for illustrative purposes

Intel Ethernet Converged Network Adapter X710-DA4

View all INTEL PCI / M.2 Cards and Adapters - Visit the INTEL Store (EX710DA4G2P5) - (ECE9819251)

Ethernet Converged Network Adapter X710-DA4 - Network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 4

One adapter, one price
Network virtualization
Energy Efficient Ethernet (EEE)

FREE Delivery on orders over €250

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€863.79~~

€545.82 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

Features Summary

One adapter, one price
With the Intel's adapters, iSCSI and FCoE support are included in the price of an adapter. There is no need to purchase multiple adapters or additional licensing for an X710 adapter. It's simple and easy. Everything you need to unify your networking is included in a single SKU.
Network virtualization
Network virtualization is the next big trend in creating an agile data center. The family of X710 adapters are ready to help you take that next step.
Energy Efficient Ethernet (EEE)
Reduces power consumption during periods of low data activity. Energy is used to maintain the physical layer transmitters in a "ready state" to transmit data on the wire. During periods of low data traffic, EEE sends a low-power-idle signal to put the transmitters into a "low power state" saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance.

Specification Summary

Product Description

Intel Ethernet Converged Network Adapter X710-DA4 - network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 4

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 3.0 x8

Ports

10 Gigabit SFP+ x 4

Dimensions (WxDxH)

16.7 cm x 6.9 cm

Cabling Type

Twinaxial

Data Link Protocol

10GbE

Data Transfer Rate

10 Gbps

Network / Transport Protocol

TCP/IP, UDP/IP

Compliant Standards

IEEE 802.1as

System Requirements

Microsoft Windows 10 / 11, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, SUSE Linux Enterprise Desktop 12 SP5, SUSE Linux Enterprise Desktop 15 SP5, Debian 11, Ubuntu 20.04 LTS, Ubuntu 22.04 LTS, Red Hat Linux 8.8, Red Hat Linux 9.2, FreeBSD 12.4, FreeBSD 13.1

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

5054444616063

General

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 3.0 x8

Networking

Ports

10 Gigabit SFP+ x 4

Connectivity Technology

Wired

Cabling Type

Twinaxial

Data Link Protocol

10 Gigabit Ethernet

Data Transfer Rate

10 Gbps

Network / Transport Protocol

TCP/IP, UDP/IP

Remote Management Protocol

SNMP, RMON

Status Indicators

Port transmission speed, link/activity

Features

Flow control, VLAN support, packet filtering, IPv4 support, IPv6 support, TCP/IP offloading, QoS, VMDq, PXE support, RSS, SR-IOV, Energy Efficient Ethernet, TSO, checksum offload support, MSI-X, UDP/IP offloading, up to 10 m transmission distance

Compliant Standards

IEEE 802.1as

Expansion / Connectivity

Interfaces

4 x 10Gb Ethernet - SFP+

Miscellaneous

Compliant Standards

FCC Class A certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU

Software / System Requirements

OS Required

Dimensions & Weight

Depth

16.7 cm

Height

6.9 cm

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C
