Eaton G4 - Basic - power distribution unit - 3.7 k

Images Manuals

Images for illustrative purposes

Eaton G4

View all EATON Power Strips | Adapters - Visit the EATON Store (EVBAFC20A) - (MMECI84955)

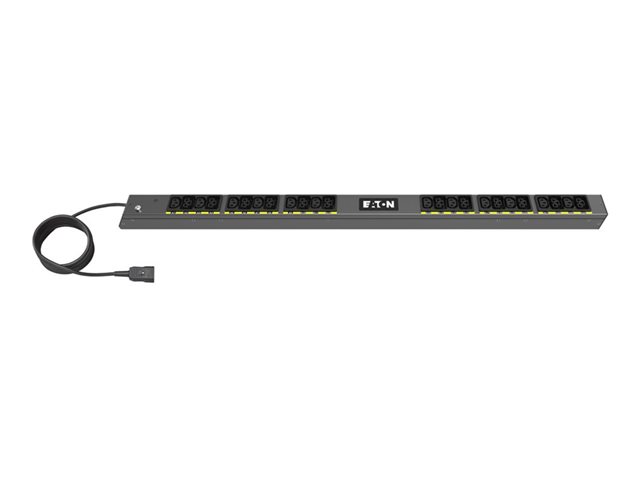

G4 - Basic - power distribution unit - 3.7 kW

Efficient power distribution
Versatile installation options
Comprehensive compliance
Durable and secure design

FREE Delivery on orders over €250

13 Available to Ship
Order within 7Hrs 16Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€553.87~~

€426.16 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Eaton's new rack PDU G4 delivers the highly secure power distribution and business continuity so critical in today's data centre space.

Eaton Power Distribution Units match solutions to needs with four rack PDU G4 technologies

Enable you to shape your PDU strategy to suit your data centre setting and requirements. We've designed the range to offer incremental features and benefits – each subsequent variant with increased capabilities.

Basic

Our basic G4 PDU provides cost-effective, reliable power distribution with a secure, built-in high retention system to firmly hold standard power cords and new type C39 outlet that combines C13 and C19 connectors.

Metered input

Our metered input G4 PDUstreamlines power management and promotes efficient operations by simplifying load balancing and preventing overloads.

Switched

Advanced control features at the outlet level combine with all the power quality measurement capabilities of the Metered Input PDU.

Managed

Our managed G4 PDU incorporates all the features of the switched model but goes a step further by actively monitoring and measuring crucial power quality factors such as voltage, current and power consumption at outlet level.

Specification Summary

Product Description

Eaton G4 - Basic - power distribution unit - 3.7 kW

Device Type

Power distribution unit - rack-mountable

Cord Length

3 m

Rack Size

Weight

2.2 kg

Input Wiring

1-phase

Input Voltage

AC 200-240 V

Output Voltage

AC 200-240 V

Power Capacity

3.7 kW

Input Connectors

1 x power IEC 60320 C20 16A

Output connectors

12 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C39

Colour

Black

Dimensions (WxDxH)

5.2 cm x 100 cm x 5.3 cm

Manufacturer Warranty

1-year warranty

Specifications

EAN / GTIN:

3553340697265

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

3 m

Colour

Black

Power Device

Input Voltage

AC 200-240 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C20 16A

Power Output Connectors Details

12 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C39

Output Voltage

AC 200-240 V 50/60 Hz

Max Electric Current

16 A

Power Capacity

3.7 kW

Miscellaneous

Cables Included

Power cable - external - 3 m

Rack Mounting Kit

Included

Features

Cascadable, vertical mount, P-lock power cord, aluminium enclosure

Compliant Standards

FCC Part 15 A, CAN ICES-3 Class A, CB, LVD, RoHS, WEEE, EMC, UL 62368-1, cTUVus, IEC 62368-1, IEC/EN 63000, EAC, UKCA, CM, UKR, IEC/EN 61000-6-2, IEC/EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, CISPR 35, EN 55035, UL 2900-1, IEC 62443-4-2

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

60 °C

Dimensions & Weight

Width

5.2 cm

Depth
