Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The TP-Link Omada ES224G V1.6 switch delivers reliable and efficient network performance with 24 ports offering speeds of 10/100/1000 Base-T. Capable of supporting up to 4000 VLANs and 32 priority queues, this switch is ideal for managing large networks. With a robust MTBF of over 400,000 hours, it is designed for continuous operation in various environments, maintaining functionality within a temperature range of -5°C to 50°C. Further enhancing its usability, the device supports features such as IGMP snooping, VLAN support, and Quality of Service (QoS) capabilities to optimize network traffic. Coupled with cloud management and a fanless design, this switch provides a quiet solution for data handling in any setting.


Specification Summary

Product Description

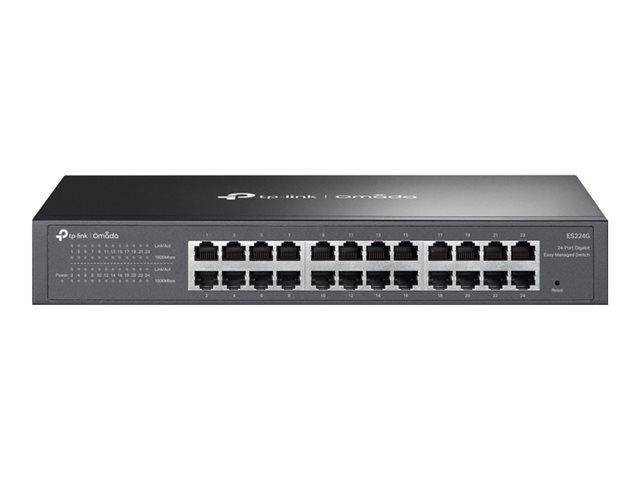

TP-Link Omada ES224G V1.6 - switch - 24 ports - Managed - rack-mountable
Device Type
Switch - 24 ports - Managed
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000Base-T
Performance
Switching capacity: 48 Gbps ¦ Packet forwarding rate: 35.7 Mpps ¦ Packet buffer size: 4 Mbit
Capacity
Priority queues: 8 ¦ VLAN groups: 32 ¦ VLANs supported: 4000
MAC Address Table Size
8K entries
Jumbo Frame Support
15KB
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
DHCP
Features
Reset button, cloud managed, VLAN support, port isolation, Cable Diagnostics Function, QoS, loop prevention, IGMP snooping, fanless, metal housing, traffic prioritisation, ZTP, security lock slot (cable lock sold separately), auto-negotiation, auto-uplink (auto MDI/MDI-X), 6KV Surge protection, DSCP based QoS, scheduler, WRR, bandwidth control, rate limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, fast leave, VLAN Tagging, store and forward, DHCP client, automatic device discovery, firmware upgradable, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge)
Compliant Standards
IEEE 802.1p, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Power
AC 100-240 V (50/60 Hz) 0.6 A
Dimensions (WxDxH)
29.4 cm x 14 cm x 4.4 cm

Specifications

EAN / GTIN:
1210002600712
General
Device Type
Switch - 24 ports - Managed
Enclosure Type
Rack-mountable, desktop
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000Base-T
Performance
Switching capacity: 48 Gbps ¦ Packet forwarding rate: 35.7 Mpps ¦ Packet buffer size: 4 Mbit
Capacity
Priority queues: 8 ¦ VLAN groups: 32 ¦ VLANs supported: 4000
MAC Address Table Size
8K entries
Jumbo Frame Support
15KB
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
DHCP
Features
Reset button, cloud managed, VLAN support, port isolation, Cable Diagnostics Function, QoS, loop prevention, IGMP snooping, fanless, metal housing, traffic prioritisation, ZTP, security lock slot (cable lock sold separately), auto-negotiation, auto-uplink (auto MDI/MDI-X), 6KV Surge protection, DSCP based QoS, scheduler, WRR, bandwidth control, rate limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, fast leave, VLAN Tagging, store and forward, DHCP client, automatic device discovery, firmware upgradable, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge)
Compliant Standards
IEEE 802.1p, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Flash Memory
64 MB
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Electric Current Required
0.6 A
Power Consumption Stand by
6 Watt
Miscellaneous
Included Accessories
4 rubber feet
Rack Mounting Kit
Included
MTBF
400,770 hours
Compliant Standards
Plug and Play, FCC, RoHS
Dimensions & Weight
Width
29.4 cm
Depth
14 cm
Height
4.4 cm
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
