Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The TP-Link Omada ES208GP V1 is designed to elevate network performance for any organization. With a robust capacity to support up to 4000 VLANs and 8 VLAN groups, it enables efficient network segmentation to enhance security and performance. The switch features 8 PoE+ ports, delivering up to 30 W per port, allowing for versatile device connectivity without the need for additional power sources, making deployment simpler and more efficient.

Built for durability, the ES208GP V1 operates in temperatures ranging from 0°C to 40°C and can withstand storage conditions as low as -40°C. It supports a variety of essential networking protocols and features like flow control, IGMP snooping, and Quality of Service (QoS), ensuring optimized data transmission and management. Enhanced with features like 6KV surge protection and an ESD/EMP protection design, this switch provides reliability for critical network environments.


Features Summary

  • Robust capacity
    With support for up to 4000 VLANs and 8 VLAN groups, the switch provides expansive options for network segmentation and management.
  • Versatile connectivity
    Equipped with 8 PoE+ ports, the device can power various network devices effectively, minimizing the need for areas with additional power supplies.
  • Environmental resilience
    This switch operates well within a range of temperatures from 0°C to 40°C and can be stored at temperatures as low as -40°C, making it suitable for various environments.
  • Advanced data management
    Features like IGMP snooping, flow control, and Quality of Service (QoS) allow for efficient data handling, enhancing overall network performance.
  • Enhanced protection
    With 6KV surge protection and ESD/EMP protection, this switch is designed to maintain reliability in critical networking situations.

Specification Summary

Product Description

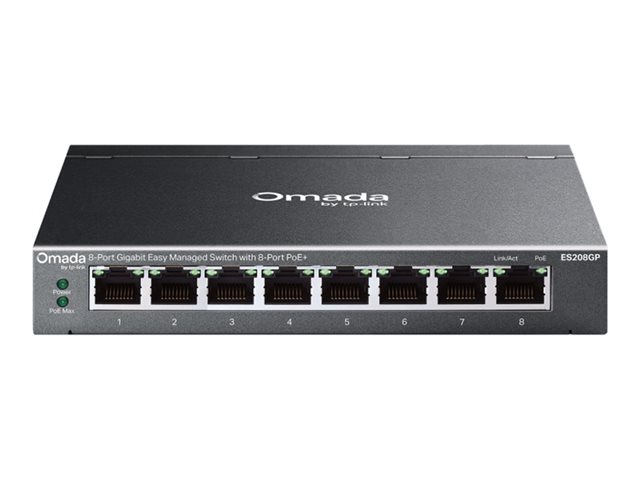

TP-Link Omada ES208GP V1 - switch - 8 ports - Managed
Device Type
Switch - 8 ports - Managed
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
64 W
Performance
Switching capacity: 16 Gbps ¦ Packet forwarding rate: 11.904 Mpps ¦ Packet buffer size: 4 Mbit
Capacity
Priority queues: 8 ¦ VLAN groups: 32 ¦ VLANs supported: 4000
MAC Address Table Size
8K entries
Jumbo Frame Support
15KB
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
DHCP
Features
Fanless, IGMP snooping, loop prevention, metal housing, VLAN support, store and forward, cloud managed, port isolation, 6KV Surge protection, ESD/EMP protection (Air: ± 8 kV, Contact: ± 4 kV), security lock slot (cable lock sold separately), firmware upgradable, automatic device discovery, Cable Diagnostics Function, DHCP client, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, VLAN Tagging, WRR, long range PoE+ up to 250m, IGMP fast leave, ZTP, QoS
Compliant Standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.1ab (LLDP), IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Dimensions (WxDxH)
15.8 cm x 10.07 cm x 2.54 cm

Specifications

EAN / GTIN:
1210002609715
General
Device Type
Switch - 8 ports - Managed
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
64 W
Performance
Switching capacity: 16 Gbps ¦ Packet forwarding rate: 11.904 Mpps ¦ Packet buffer size: 4 Mbit
Capacity
Priority queues: 8 ¦ VLAN groups: 32 ¦ VLANs supported: 4000
MAC Address Table Size
8K entries
Jumbo Frame Support
15KB
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
DHCP
Features
Fanless, IGMP snooping, loop prevention, metal housing, VLAN support, store and forward, cloud managed, port isolation, 6KV Surge protection, ESD/EMP protection (Air: ± 8 kV, Contact: ± 4 kV), security lock slot (cable lock sold separately), firmware upgradable, automatic device discovery, Cable Diagnostics Function, DHCP client, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, VLAN Tagging, WRR, long range PoE+ up to 250m, IGMP fast leave, ZTP, QoS
Compliant Standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.1ab (LLDP), IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Flash Memory
64 MB
Status Indicators
PoE max, power, link/activity
Expansion / Connectivity
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
Power
Power Device
External power adapter
Power Provided
DC 53.5 V - 1.31 A
Power Consumption Stand by
2.53 Watt
Miscellaneous
MTBF
663,168 hours
Compliant Standards
FCC, RoHS, Plug and Play
Dimensions & Weight
Width
15.8 cm
Depth
10.07 cm
Height
2.54 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% RH (non-condensing)
