Device Type

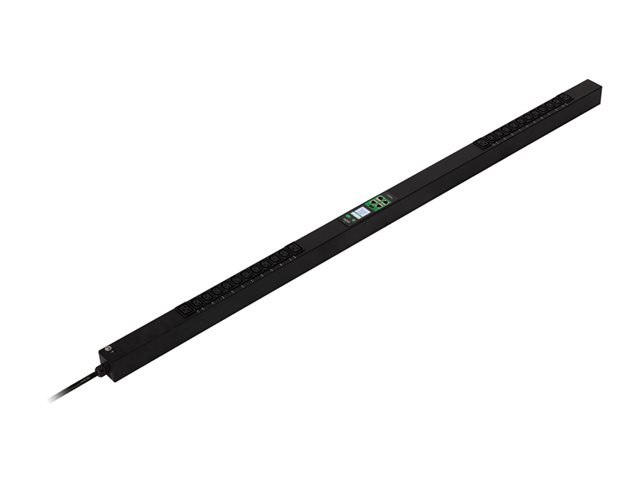

Power distribution unit - rack-mountable
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60309 2P+E 32A
Power Output Connectors Details
20 x power IEC 60320 C13 - 230 V ¦ 4 x power IEC 60320 C19 - 230 V
Max Electric Current
32 A
Circuit Protection
Circuit breaker
Remote Management Interface
Ethernet 10/100/1000, serial, USB
Remote Management Protocol
SNMP 1, CLI, HTTP, HTTPS, SNMP 2, SNMP 3, DHCP, IPv4, IPv6
Interfaces
1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x sharing input - RJ-45 ¦ 1 x sharing output - RJ-45
Expansion Slots
1 (total) / 0 (free) x Network Interface slot
Cables Included
Power cable - integrated - 3 m
Rack Mounting Kit
Included
Features
Vertical orientation, LCD display, Hydraulic-Magnetic breakers, steel enclosure, 2 x 16A single pole magnetic breakers
Compliant Standards
UKCA, REACH, EU RoHS, EN55035, EN 55032, EN55024, EMC, EN 62368-1, IEC 62368-1, TUV
Service & Support
Limited warranty - replace or repair - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
