APC Easy Switched PDU EPDU1016S - power distributi

Images Manuals

Images for illustrative purposes

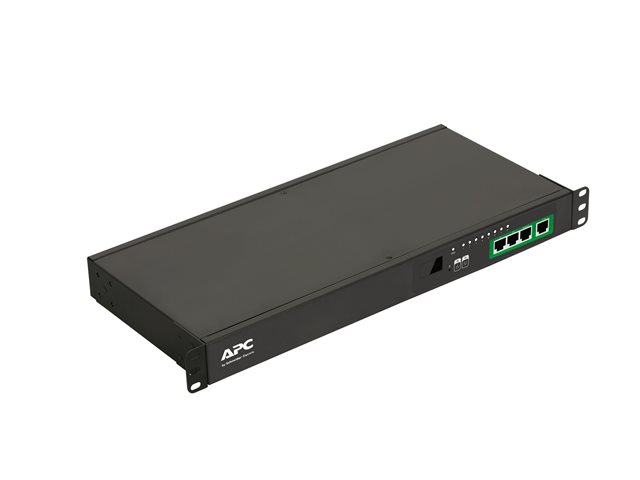

APC Easy Switched PDU EPDU1016S

Name: APC Easy Switched PDU EPDU1016S
Brand: APC
SKU: ECE5795324
Price: 769.75 EUR
Availability: OutOfStock

View all APC Power Strips | Adapters - Visit the APC Store (EPDU1016S) - (ECE5795324)

Easy Switched PDU EPDU1016S - Power distribution unit (rack-mountable) - AC 200/208/230 V - 3680 VA - Ethernet - input: IEC 60320 C20 - output connectors: 8 (8 x IEC 60320 C13) - 1U - 2.5 m cord - black - for P/N: SCL500RM1U, SCL500RMI1U, SMX1500RM2UC

No Marketing Data

FREE Delivery on orders over €250

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€921.27~~

€769.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

"APC Easy Switched Rack PDU EPDU1016S is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent." "This provides on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip." "EPDU1016S has IEC 320 C20 200-240V type inlet and eight IEC C13 type outlet sockets." "This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display." "Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment)" "Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface." "Allows users to access, configure, and manage units from remote locations to save valuable time." "Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released." "Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU" "Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released." "Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads" "Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly." "Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits." "The packaging includes cable, installation guide and horizontal mounting brackets for quick and easy mounting in the enclosure." "This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty." "The aggregate current draw per power distribution unit is displayed on the unit via a digital display." "The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip."

Specification Summary

Product Description

APC Easy Switched PDU EPDU1016S - power distribution unit - 3680 VA

Device Type

Power distribution unit - rack-mountable

Cord Length

2.5 m

Rack Size

Weight

2.8 kg

Input Voltage

AC 200/208/230 V

Output Voltage

AC 208/230 V

Power Capacity

3680 VA

Input Connectors

1 x power IEC 60320 C20

Output connectors

8 x power IEC 60320 C13

Networking

Ethernet

Remote Management Protocol

SNMP, Telnet

Included Accessories

Mounting bracket

Colour

Black

Dimensions (WxDxH)

48.2 cm x 20 cm x 4.4 cm

Manufacturer Warranty

1-year warranty

Designed For

P/N: SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SRT5KRMXLTUS

Specifications

EAN / GTIN:

731304405122

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

2.5 m

Colour

Black

Power Device

Input Voltage

AC 200/208/230 V

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

8 x power IEC 60320 C13

Output Voltage

AC 208/230 V

Max Electric Current

16 A

Power Capacity

3680 VA

Networking

Remote Management Interface

Ethernet

Remote Management Protocol

SNMP, Telnet

Expansion / Connectivity

Interfaces

Management (Ethernet)

Miscellaneous

Included Accessories

Mounting bracket

Cables Included

Power cable 2.5 m

Features

Current meter, firmware upgradable, LCD display, voltage monitoring, power factor metre

Compliant Standards

RoHS, REACH, TUV, EAC

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

5 - 95%

Dimensions & Weight

Width

48.2 cm

Depth

20 cm

Height

4.4 cm

Weight

2.8 kg

Dimensions & Weight (Shipping)

Shipping Width

56 cm

Shipping Depth

26 cm

Shipping Height

8 cm

Shipping Weight

3.6 kg

Compatibility Information

Designed For

P/N: SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SMT2200R2X658, SMT2200RM2UC, SMT3000RM2UC, SMT3000RMT2U, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2000RMLV2U, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLV2U, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX3000RMLV2U, SMX3000RMLV2UNC, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SRT1000RMXLA, SRT1000RMXLA-NC, SRT10KRMXLT-IEC, SRT10KXLI, SRT10KXLT-IEC, SRT1500RMXLA, SRT1500RMXLA-NC, SRT3000RMXLW-IEC, SRT3000XLW-IEC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT6KXLT-IEC, SRT8KRMXLT, SRT8KRMXLT-IEC, SRT8KXLT-IEC, SUA3000UXI, SUA5000R5TXFMR, SUA5000RMT5U, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT20KRMXLT, SURT20KRMXLT-1TF10K, SURT20KRMXLT-TF5, SURT5000XLIX438, SURTD5000RMXLP3U, SURTD6000RMXLP3U, SYA12K16RMP, SYA16K16RMP, SYA4K8RMP, SYA8K16RMP, SYA8K8RMI, SYA8K8RMP, SYAF16KBXRMT, SYAF16KRMT, SYAF8KRMT, SYAF8KRMTX424, SYH2K6RMT, SYH2K6RMT-P1, SYH2K6RMT-TF3, SYH4K6RMT, SYH4K6RMT-P1, SYH4K6RMT-TF3, SYH6K6RMT, SYH6K6RMT-P1, SYH6K6RMT-TF3
