Eaton Ellipse PRO 650 - UPS - 400 watt - 650 VA

Images Manuals

Images for illustrative purposes

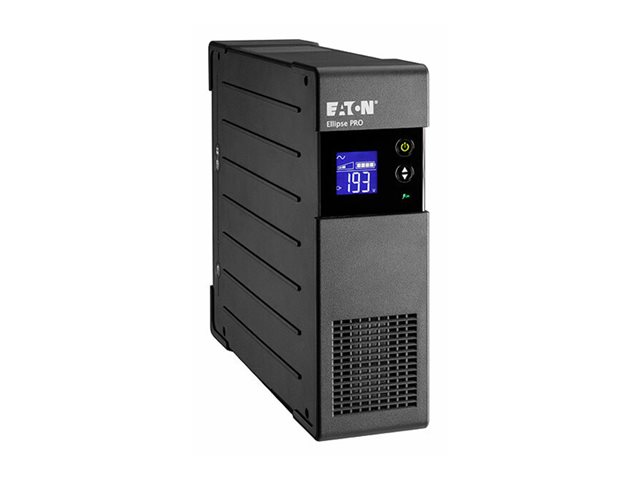

Eaton Ellipse PRO 650

Name: Eaton Ellipse PRO 650
Brand: EATON
SKU: MMEX770302
Price: 244.39 EUR
Availability: InStock

View all EATON Uninteruptable Power Supply - Visit the EATON Store (ELP650IEC) - (MMEX770302)

Model: Eaton Ellipse

Ellipse PRO 650 - UPS - 400 watt - 650 VA

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

5 Available to Ship
Order within 5Hrs 6Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€306.49~~

€244.39 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Eaton Ellipse PRO 650 650VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features a LCD display for real time status and measurements, 4 outlets ( 3 with battery backup and lightning protection and one with lightning protection.

This unit includes Eco Control power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.

Specification Summary

Product Description

Eaton Ellipse PRO 650 - UPS - 400 watt - 650 VA

Device Type

UPS - external

Rack Size

19" - 2U

Weight

6.6 kg

Input Voltage

AC 230 V

Output Voltage

AC 220/230/240 V + 15% / - 20%

Power Capacity

400 watt / 650 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

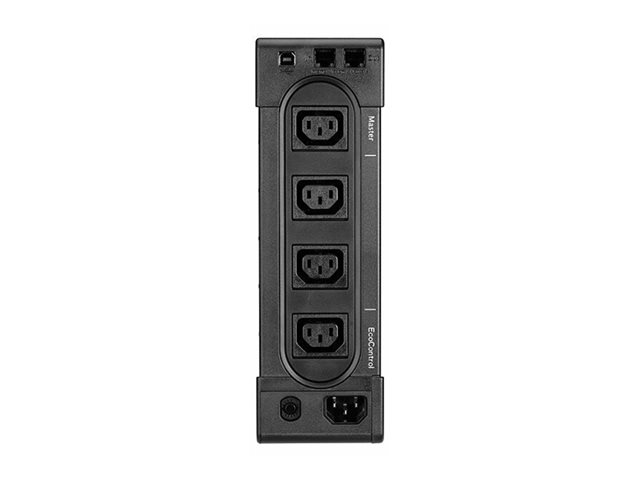

3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge)

Battery

Lead Acid - 7 Ah

Run Time (Up To)

9 min at half load

Networking

USB

Dimensions (WxDxH)

8.2 cm x 28.5 cm x 26 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0743172437334

General

Device Type

UPS - external

Height (Rack Units)

Rack Size

19"

Power Device

UPS Technology

Line interactive

Input Voltage

AC 230 V

Input Voltage Range

AC 165 - 285 V

Input Voltage Range (Adjustable)

AC 150 - 285 V

Frequency Provided

50/60 Hz

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge)

Output Voltage

AC 220/230/240 V + 15% / - 20% - 50/60 Hz

Power Capacity

400 watt / 650 VA

Dataline Surge Protection

Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line

Surge Suppression

Yes

Circuit Protection

Circuit breaker

Battery

Technology

Lead Acid

Capacity

7 Ah

Run Time (Up To)

9 min at half load ¦ 5 min at 70% load

Networking

Remote Management Interface

USB

Expansion / Connectivity

Interfaces

1 x management (USB) - 4 pin USB Type B

Miscellaneous

Cables Included

USB cable - external

Rack Mounting Kit

Optional

Features

Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets

Compliant Standards

CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2

Software / System Requirements

Software Included

Eaton UPS Companion

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

35 °C

Humidity Range Operating

0 - 85%

Dimensions & Weight

Width

8.2 cm

Depth

28.5 cm

Height

26 cm

Weight

6.6 kg
