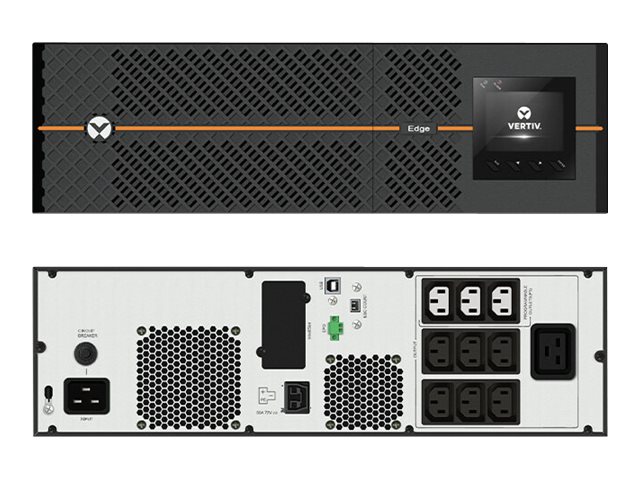

Vertiv EDGE

Name: Vertiv EDGE
Brand: VERTIV
SKU: MMEW895812
Price: 1219.75 EUR
Availability: InStock

View all VERTIV Uninteruptable Power Supply - Visit the VERTIV Store (EDGE-3000IRT3UXL) - (MMEW895812)

Model: Vertiv EDGE

EDGE - UPS - 2700 Watt - 3000 VA

High efficiency
Extended battery life
Configurable Green function
Easy to install, configure and operate
Remote emergency power off

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

3 Available to Ship
Order within 16Hrs 38Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€1559.06~~

€1219.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 3U convertible rack/tower format, this 3000VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.

Features Summary

High efficiency
Vertiv EDGE UPSs operate at up to 98% efficiency in normal operation mode, saving on electricity costs throughout their lifetime.
Extended battery life
Deep discharge protection prevents the potential damage that can occur when a UPS battery fully drains.
Configurable Green function
When in battery mode with only very small loads, the UPS will automatically shut itself down to protect batteries.
Easy to install, configure and operate
Auto-detect external battery modules and color LCD display help to make the UPS operation easier and the user interface more intuitive.
Remote emergency power off
Allows the UPS to be remotely shut down during an emergency.

Specification Summary

Product Description

Vertiv EDGE - UPS - 2700 Watt - 3000 VA

Device Type

UPS - rack-mountable / external

Rack Size

Weight

36 kg

Input Voltage

AC 230 V

Output Voltage

AC 200/208/220/230/240 V

Power Capacity

2700 Watt / 3000 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

9 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Battery

Lead Acid - 9 Ah

Batteries Qty

Run Time (Up To)

6 min at full load

Networking

USB

Included Accessories

4-post rail rack mounting kit, tower stand

Dimensions (WxDxH)

43.8 cm x 48.5 cm x 13.2 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0767041031430

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Power Device

UPS Technology

Line interactive

Input Voltage

AC 230 V

Input Voltage Range

AC 166 - 278 V

Frequency Required

55 - 65 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

9 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Output Voltage

AC 200/208/220/230/240 V

Power Capacity

2700 Watt / 3000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

624 Joules

Circuit Protection

Circuit breaker

Efficiency

98% line mode

Power Factor (PF)

0.9

Battery

Quantity

Technology

Lead Acid

Capacity

9 Ah

Run Time (Up To)

6 min at full load ¦ 10 min at 70% load ¦ 16 min at 50% load ¦ 43 min at 20% load

Recharge Time

3 hours

Transfer Time

6 ms

Features

Valve-regulated, spill-proof

Networking

Remote Management Interface

USB

Expansion / Connectivity

Interfaces

1 x USB

Expansion Slots

1 (total) / 1 (free) x Liebert IntelliSlot

Miscellaneous

Included Accessories

4-post rail rack mounting kit, tower stand

Cables Included

USB cable

Features

Programmable load outlets, Automatic Voltage Regulation (AVR), LCD display, emergency power off

Compliant Standards

CB, EN 60020-1:2008+A1:2013, ISTA 2A, RoHS, REACH

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 90%

Dimensions & Weight

Width

43.8 cm

Depth

48.5 cm

Height

13.2 cm

Weight

36 kg

Dimensions & Weight (Shipping)

Shipping Width

55 cm

Shipping Depth

65 cm

Shipping Height

28.2 cm

Shipping Weight

42 kg
