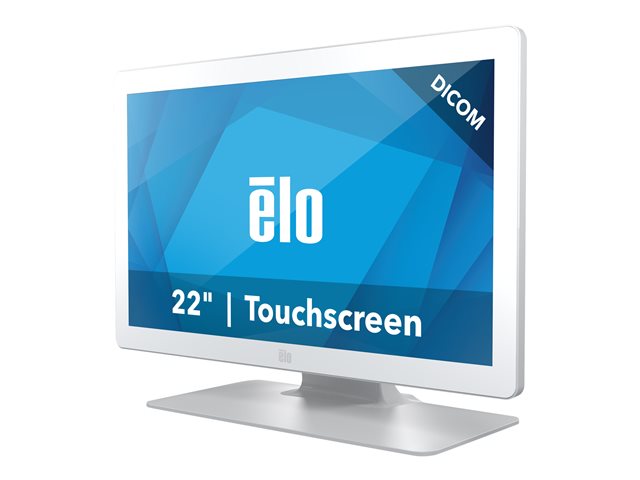

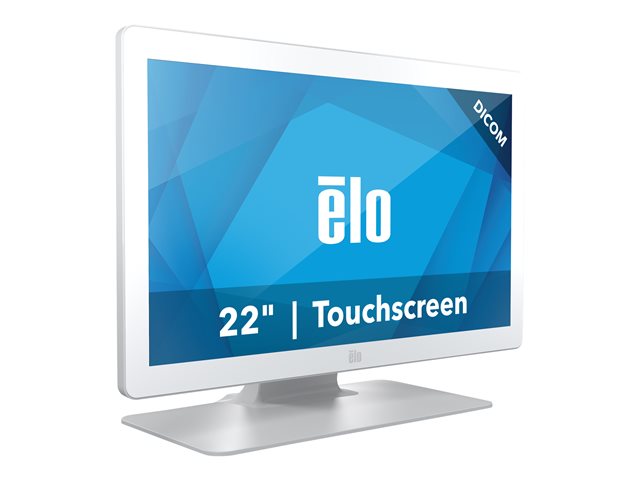

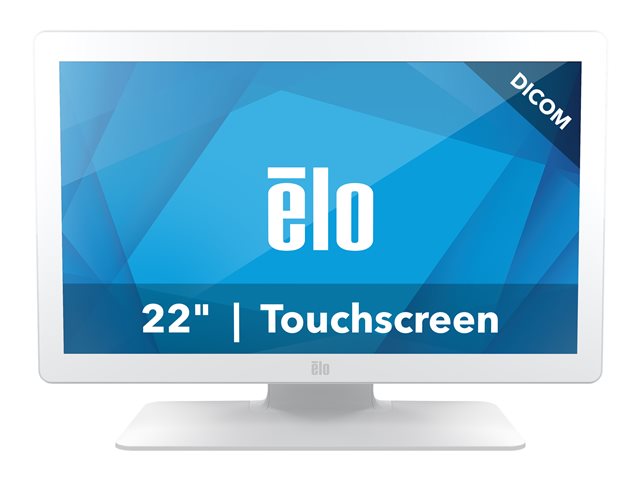

Elo 2203LM - Medical Grade - LCD monitor - Full HD

Images Manuals

Images for illustrative purposes

Elo 2203LM

Name: Elo 2203LM
Brand: ELO TOUCHSYSTEMS
SKU: MMECA69241
Price: 1016.13 EUR
Availability: InStock

View all ELO TOUCHSYSTEMS Monitors - Visit the ELO TOUCHSYSTEMS Store (E658992) - (MMECA69241)

Model: Elo

Elo 2203LM - Medical Grade - LCD monitor - Full HD (1080p) - 22"

High-definition display
Interactive touchscreen
Versatile connectivity options
Wide viewing angles
Compliance and reliability

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

5 Available to Ship
Order within 15Hrs 55Mins for: FREE Delivery (12 Aug or 13 Aug)

€1016.13 Incl Vat

Bulk Pricing from €1000.89

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Elo 2203LM 22-inch Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Features Summary

High-definition display
The monitor features a native resolution of 1920 x 1080, providing sharp and vivid images that enhance visual experiences.
Interactive touchscreen
The 10-point multi-touch capability allows for intuitive controls, suitable for applications requiring user interaction.
Versatile connectivity options
Equipped with HDMI, VGA, and USB ports, this monitor offers multiple ways to connect to various devices, ensuring flexibility in setups.
Wide viewing angles
With horizontal and vertical viewing angles of +89/-89 degrees, the monitor delivers consistent image quality from different positions.
Compliance and reliability
Meeting various compliance standards, the Elo 2203LM ensures performance and safety in demanding environments.

Specification Summary

Product Description

Elo 2203LM - Medical Grade - LCD monitor - Full HD (1080p) - 22"

Device Type

LCD monitor - 22" - touchscreen

Features

Touch-screen, USB Hub

Aspect Ratio

16:9

Native Resolution

Full HD (1080p) 1920 x 1080 at 60 Hz

Brightness

250 cd/m²

Contrast Ratio

3000:1

Response Time

25 ms (tr - tf)

Colour Support

16.7 million colours

Input Connectors

HDMI, VGA

Voltage

AC 120/230 V (50/60 Hz)

Colour

White

Dimensions (WxDxH) - with stand

52.69 cm x 19.34 cm x 38.38 cm

Weight

6.8 kg

Compliant Standards

UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0843173135458

General

Display Type

LCD monitor / TFT active matrix

Diagonal Size

22"

Viewable Size

21.5"

Built-in Devices

USB Hub

Aspect Ratio

16:9

Native Resolution

Full HD (1080p) 1920 x 1080 at 60 Hz

Brightness

250 cd/m²

Brightness w/touchscreen

240 cd/m²

Contrast Ratio

3000:1

Colour Support

16.7 million colours

Response Time

25 ms (tr - tf)

Vertical Refresh Rate

50 - 75 Hz

Horizontal Refresh Rate

30 - 82 kHz

Horizontal Viewing Angle

+89 / -89

Vertical Viewing Angle

+89 / -89

OSD Languages

Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean

Features

TouchPro technology, DICOM Compliant

Colour

White

Dimensions (WxDxH)

52.69 cm x 19.34 cm x 38.38 cm - with stand

Weight

6.8 kg

Audio

Type

Speakers - stereo

Output Power / Channel

2 watt

Input

Type

Touch-screen - touchscreen

Movement Detection Technology

Projected capacitive

Connectivity

Interfaces

HDMI ¦ VGA ¦ Audio line-out (mini-jack) ¦ USB (Type B) ¦ USB 2.0 (Type A) ¦ 4 x Micro-USB

Mechanical

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Cables Included

1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x audio cable

MTBF

50,000 hours

Compliant Standards

UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012

Power

Input Voltage

AC 120/230 V (50/60 Hz)

Power Consumption (Typical)

22.5 watt

Power Consumption Sleep

0.8 watt

Dimensions & Weight (Shipping)

Shipping Width

47.7 cm

Shipping Depth

26 cm

Shipping Height

61.7 cm

Shipping Weight

10.8 kg

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
