Elo 1590L - 90-Series - LED monitor - 15"

Images Manuals

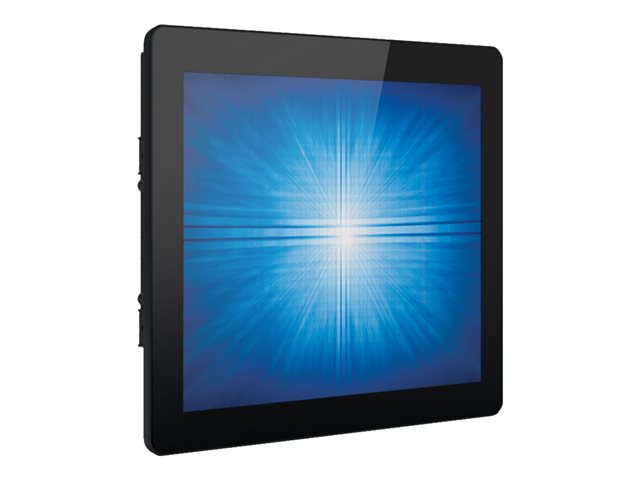

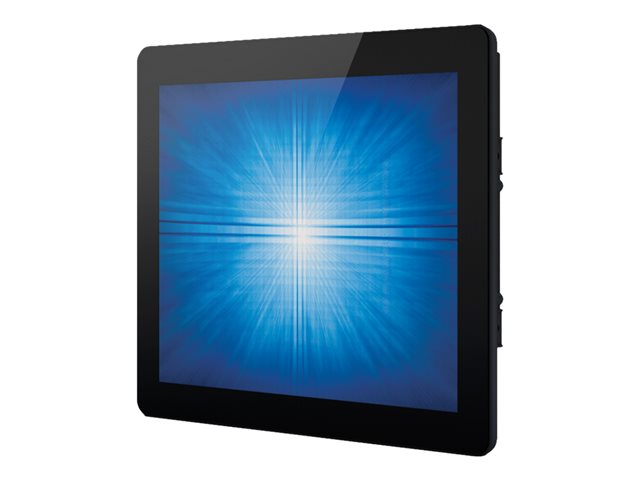

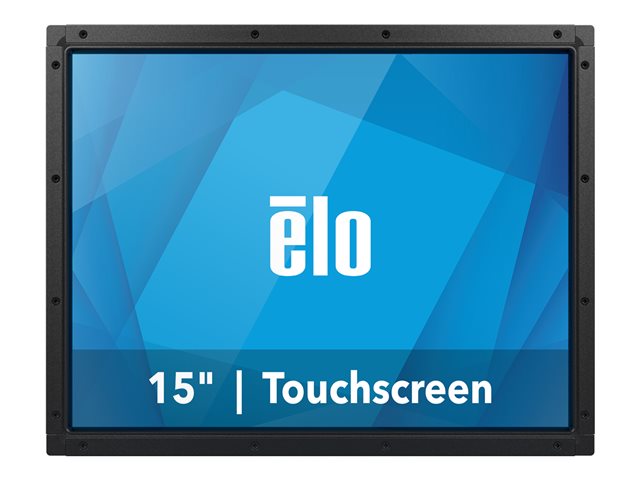

Images for illustrative purposes

Elo 1590L

Name: Elo 1590L
Brand: ELO TOUCHSYSTEMS
SKU: MMECP22705
Price: 576.40 EUR
Availability: InStock

View all ELO TOUCHSYSTEMS Monitors - Visit the ELO TOUCHSYSTEMS Store (E295927) - (MMECP22705)

Model: Elo

Elo 1590L - 90-Series - LED monitor - 15"

Versatile connectivity
Durable design
Optimal viewing experience
Efficient operation
Easy installation

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

9 Available to Ship
Order within 1Hrs 9Mins for: FREE Delivery (8 Jun or 9 Jun)

€576.40 Incl Vat

Bulk Pricing from €567.76

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Elo 1590L 15" open-frame LCD touch display is a great solution for kiosks, casino and amusement, self-service retail, and industrial floor automation. Featuring a slim design and narrow outside dimensions, the efficient LED backlight uses less electricity to operate and generates less heat. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure.

Features Summary

Versatile connectivity
With interfaces for VGA, DisplayPort, and USB, this monitor offers versatile connectivity options for a wide range of devices.
Durable design
Boasting a robust open frame form factor and a high MTBF of 50,000 hours, this monitor is designed for long-lasting reliability in various environments.
Optimal viewing experience
The 15-inch LED-backlit LCD monitor delivers vibrant images with 16.2 million colors, a 700:1 contrast ratio, and 250 cd/m2 brightness, ensuring clear and vivid visuals from any angle with its wide viewing angles.
Efficient operation
Supporting a wide range of operating temperatures from 0°C to 40°C and a non-condensing humidity range of 20 - 80%, this monitor is built to perform reliably in diverse conditions.
Easy installation
Comes with a mounting kit and supports both 100 x 100 mm and 75 x 75 mm VESA mount interfaces, facilitating easy installation in various setups.

Specification Summary

Product Description

Elo 1590L - 90-Series - LED monitor - 15"

Device Type

LED-backlit LCD monitor - 15" - touchscreen

Features

Touch-screen

Aspect Ratio

4:3

Native Resolution

1024 x 768 at 60 Hz

Brightness

300 cd/m²

Contrast Ratio

700:1

Response Time

23 ms (typical)

Colour Support

16.2 million colours

Input Connectors

HDMI, VGA, DisplayPort

Built-in Ethernet

Yes

Voltage

(50/60 Hz)

Colour

Black

Dimensions (WxDxH)

33.64 cm x 4.19 cm x 26.44 cm

Weight

2.9 kg

Localisation

Worldwide

Compliant Standards

RCM, cUL, IC, CCC, TUV, UKCA, VCCI, KCC, CoC, BSMI, UL, FCC, CB, EAC, RoHS, WEEE, China RoHS, UL 60950, IK07, IP65

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0843173150154

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Diagonal Size

15"

Aspect Ratio

4:3

Native Resolution

1024 x 768 at 60 Hz

Brightness

300 cd/m²

Brightness w/touchscreen

270 cd/m²

Contrast Ratio

700:1

Colour Support

16.2 million colours

Response Time

23 ms (typical)

Vertical Refresh Rate

50 - 75 Hz

Horizontal Refresh Rate

30 - 60 kHz

Horizontal Viewing Angle

160

Vertical Viewing Angle

150

Backlight Technology

LED backlight

OSD Languages

English, French, Italian, German, Spanish, Chinese (simplified), Chinese (traditional), Japanese

Features

TouchPro Pro Projected Capacitive (PCAP) technology, Touch Thru capability

Colour

Black

Dimensions (WxDxH)

33.64 cm x 4.19 cm x 26.44 cm

Weight

2.9 kg

Input

Type

Touch-screen - touchscreen

Movement Detection Technology

Projected capacitive

Connectivity

Interfaces

VGA ¦ DisplayPort ¦ Management (RJ-45) ¦ HDMI ¦ Serial

Mechanical

VESA Mounting Interface

100 x 100 mm, 75 x 75 mm

Miscellaneous

Features

VESA interface support

Cables Included

1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable

Mounting Kit

Included

MTBF

50,000 hours

Compliant Standards

RCM, cUL, IC, CCC, TUV, UKCA, VCCI, KCC, CoC, BSMI, UL, FCC, CB, EAC, RoHS, WEEE, China RoHS, UL 60950, IK07, IP65

Localisation

Worldwide

Power

Input Voltage

(50/60 Hz)

Power Consumption (Typical)

12.5 Watt

Power Consumption Sleep

1.5 Watt

Power Consumption (Off Mode)

0.5 Watt

Dimensions & Weight (Shipping)

Shipping Width

43.4 cm

Shipping Depth

17.5 cm

Shipping Height

37.5 cm

Shipping Weight

4.7 kg

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 80%
