Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

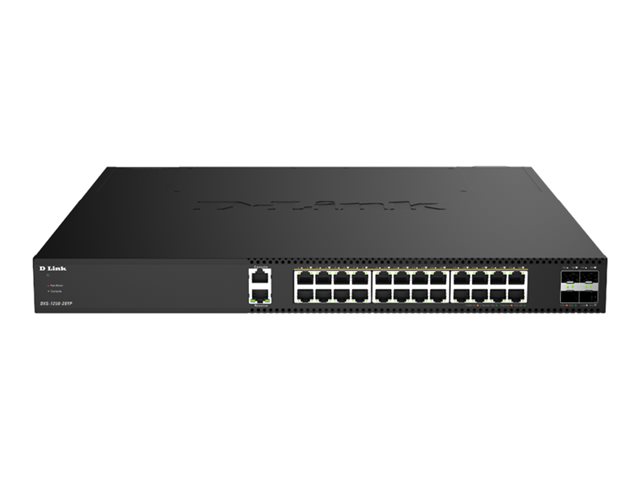

The D-Link DXS 1250-28YP is a robust switch designed to enhance network performance with efficient data handling capabilities. With a switching capacity of 680 Gbps and a forwarding rate of 505.92 Mpps, this device supports demanding network applications and ensures seamless connectivity. Featuring 28 ports, it includes 24 10GBase-T PoE ports and 4 10 Gigabit/25 Gigabit SFP28 uplink ports, providing flexibility and reliability for various network configurations.

Equipped with advanced features such as VLAN support, IGMP snooping, and Quality of Service (QoS), the DXS 1250-28YP effectively manages traffic flows, ensuring optimal data delivery throughout your network. Added security measures, including DoS attack prevention and Dynamic ARP Inspection, help safeguard your network against potential threats, allowing for a stable and secure operational environment. Its intelligent design, including built-in smart fans and support for both rack-mountable and desktop forms, makes it a versatile addition to any professional setting.


Features Summary

  • Efficient performance
    The D-Link DXS 1250-28YP delivers a forwarding rate of 505.92 Mpps, ensuring that even the most data-intensive applications run smoothly.
  • High port availability
    With 24 10GBase-T PoE ports, this switch provides ample connections for devices needing power, alongside 4 10 Gigabit/25 Gigabit SFP28 uplink ports for flexible network architecture.
  • Advanced network management
    Features such as VLAN support and IGMP snooping allow for refined control over data traffic, making it easier to optimize network performance.
  • Robust security features
    Incorporating measures like Dynamic ARP Inspection and DoS attack prevention, the DXS 1250-28YP safeguards the network against potential vulnerabilities.
  • Flexible installation options
    Designed for both desktop and rack-mountable applications, this switch adapts to diverse environmental needs while maintaining a compact footprint.

Specification Summary

Product Description
D-Link DXS 1250-28YP - switch - 28 ports - smart - rack-mountable
Device Type
Switch - 28 ports - L2+ - smart
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
24 x 10GBase-T (PoE) + 4 x 10 Gigabit / 25 Gigabit SFP28 (uplink)
Power Over Ethernet (PoE)
PoE
PoE Budget
470 W
Performance
Switching capacity: 680 Gbps ¦ Forwarding rate (64-byte packets): 505.92 Mpps
Capacity
VLAN groups: 4094 ¦ IP interfaces: 8 ¦ IPv4 routes (static): 768 ¦ IPv6 routes (static): 128 ¦ Queues per port: 8 ¦ Packet buffer memory: 4 MB ¦ Link aggregation groups: 8 ¦ Link aggregation ports per channel: 8 ¦ IGMP groups: 256 ¦ MLD groups: 256 ¦ ACL entries (ingress): 3072 ¦ MAC rules: 2304 ¦ IPv4 rules: 1152 ¦ IPv6 rules: 512 ¦ MAC addresses per port: up to 64 ¦ Maximum ARP Spoofing entries: 64 ¦ IPv4 routes (ARP entries): 768 ¦ IPv6 ND entries: 384
MAC Address Table Size
32000 entries
Jumbo Frame Support
12KB
Routing Protocol
Static IP routing, IGMPv2, IGMP, IGMPv3, MSTP, STP
Remote Management Protocol
Telnet, RMON, HTTPS, SNMP 1, SNMP 3, CLI, IPv6, IPv4, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 2c
Features
BOOTP support, DHCP client, TFTP client, DHCP relay, system log, ACL support, DHCP snooping, IP source guard, Safeguard Engine, DoS attack prevention, DAI, Broadcast Storm Control, loopback detection, Port Security, Multicast Storm Control, Unicast Storm Control, CoS, QoS, WDRR, WRR, ToS, MSTP support, RSTP support, STP support, ERPS, flow control, VLAN support, IGMP snooping, bandwidth control, LLDP support, port mirroring, IP-MAC binding, DHCP server, ARP support, AAA, 802.1x authentication, SNMP trap, LLDP-MED, HOL Blocking Prevention, perpetual PoE, fast PoE, 6KV Surge protection, static route
Compliant Standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Power
AC 100-240 V (50 - 60 Hz)
Dimensions (WxDxH)
47 cm x 44 cm x 4.4 cm
Weight
6.483 kg
Localisation
United Kingdom
Designed For
P/N: DEM-310GT, DEM-311GT, DEM-314GT, DEM-410T, DEM-431XT, DEM-432XT, DEM-CB300S, DGS-712

Specifications

General
Device Type
Switch - 28 ports - L2+ - smart
Enclosure Type
Rack-mountable, desktop
Subtype
10 Gigabit Ethernet
Ports
24 x 10GBase-T (PoE) + 4 x 10 Gigabit / 25 Gigabit SFP28 (uplink)
Power Over Ethernet (PoE)
PoE
PoE Budget
470 W
Performance
Switching capacity: 680 Gbps ¦ Forwarding rate (64-byte packets): 505.92 Mpps
Capacity
VLAN groups: 4094 ¦ IP interfaces: 8 ¦ IPv4 routes (static): 768 ¦ IPv6 routes (static): 128 ¦ Queues per port: 8 ¦ Packet buffer memory: 4 MB ¦ Link aggregation groups: 8 ¦ Link aggregation ports per channel: 8 ¦ IGMP groups: 256 ¦ MLD groups: 256 ¦ ACL entries (ingress): 3072 ¦ MAC rules: 2304 ¦ IPv4 rules: 1152 ¦ IPv6 rules: 512 ¦ MAC addresses per port: up to 64 ¦ Maximum ARP Spoofing entries: 64 ¦ IPv4 routes (ARP entries): 768 ¦ IPv6 ND entries: 384
MAC Address Table Size
32000 entries
Jumbo Frame Support
12KB
Routing Protocol
Static IP routing, IGMPv2, IGMP, IGMPv3, MSTP, STP
Remote Management Protocol
Telnet, RMON, HTTPS, SNMP 1, SNMP 3, CLI, IPv6, IPv4, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 2c
Encryption Algorithm
SSL, TLS 1.0, TLS 1.1, TLS 1.2
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, DHCP client, TFTP client, DHCP relay, system log, ACL support, DHCP snooping, IP source guard, Safeguard Engine, DoS attack prevention, DAI, Broadcast Storm Control, loopback detection, Port Security, Multicast Storm Control, Unicast Storm Control, CoS, QoS, WDRR, WRR, ToS, MSTP support, RSTP support, STP support, ERPS, flow control, VLAN support, IGMP snooping, bandwidth control, LLDP support, port mirroring, IP-MAC binding, DHCP server, ARP support, AAA, 802.1x authentication, SNMP trap, LLDP-MED, HOL Blocking Prevention, perpetual PoE, fast PoE, 6KV Surge protection, static route
Compliant Standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Built-in Devices
2 x smart fans
Status Indicators
Console, fan failure, link/activity
Expansion / Connectivity
Interfaces
24 x 10GBase-T RJ-45 PoE - 60 W ¦ 4 x 10/25GBase-T SFP28 uplink ¦ 1 x console RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Power Consumption Stand by
49.033 Watt
Miscellaneous
MTBF
240,231.32 hours
Compliant Standards
EMI FCC Class A, VCCI Class A, IC, RCM, BSMI, CB, cUL, IEEE 61000-4-5
Localisation
United Kingdom
Dimensions & Weight
Width
47 cm
Depth
44 cm
Height
4.4 cm
Weight
6.483 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% RH
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% RH
Compatibility Information
Designed For
P/N: DEM-310GT, DEM-311GT, DEM-314GT, DEM-410T, DEM-431XT, DEM-432XT, DEM-CB300S, DGS-712
