EAN / GTIN:
0790069471810

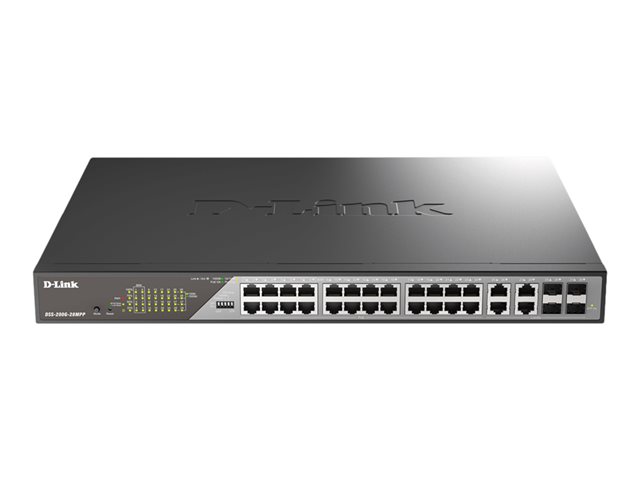

Device Type
Switch - 24 ports - Managed
Enclosure Type
Rack-mountable 1U
Ports
24 x 10/100/1000 (PoE) + 4 x combo SFP
Power Over Ethernet (PoE)
PoE
Performance
Switching bandwidth: 56 Gbps ¦ Forwarding bandwidth: 41.67 Mbps
Capacity
Packet buffer size: 4.1 Mbit ¦ Virtual interfaces (VLANs): 4094 ¦ VLAN groups: 128 ¦ QoS priority queues per port: 4
MAC Address Table Size
8000 entries
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, IGMPv2, STP, RSTP
Remote Management Protocol
SNMP, SNMP 2, MIB, ICMP
Features
6KV Surge protection, 2 fans, ONVIF support, VLAN support, built-in DIP switch, QoS, isolate mode, PD-Alive, flow control, full duplex mode, half duplex mode, auto-uplink (auto MDI/MDI-X), auto-negotiation, port-based VLAN, Auto Surveillance VLAN, tagged VLAN, Voice VLAN, VLAN management, Asymmetric VLAN, HOL Blocking Prevention, IGMP snooping, ERPS, loopback detection, Cable Diagnostics Function, LLDP support, port mirroring, MLD snooping, WRR, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, DoS attack prevention, Green Technology, EEE, UDP support, TCP support, ARP support, BOOTP support, DHCP client, reset button
Compliant Standards
IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1Q, ITU-T G.8032, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p
Status Indicators
Alarm, PoE, power, link/activity/speed
Interfaces
24 x 10/100/1000 Base-T RJ-45 PoE - 90 W ¦ 4 x 1000Base-T SFP ¦ 1 x alarm input RJ-45
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Power Consumption Stand by
15.19 Watt
Included Accessories
Rack mounting brackets
Rack Mounting Kit
Included
Compliant Standards
FCC, IC, BSMI, cUL, UL, LVD, CB
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% (non-condensing)
