Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Zebra DS5502 from the DS55 Series combines performance with a variety of features to meet barcode scanning needs. With the ability to read multiple barcode formats, including QR codes, UPC/EAN, and PDF417, this handheld barcode scanner offers flexibility and reliability in any setting. Built with a robust design, it can withstand drops of up to 1.5 m, ensuring durability in demanding environments. The scanner is equipped with advanced ESD protection, making it suitable for handling sensitive electronics safely. Designed for ease of use, the scanner features a green LED light source and beeper notifications for successful scans. Its RS-232 and USB interfaces facilitate seamless connectivity and integration into existing systems. Operating efficiently in temperatures ranging from -20°C to 50°C and supporting high humidity levels, the Zebra DS5502 delivers consistent performance regardless of the environment. This scanner is compliant with multiple standards, assuring safe operation and reliable performance, making it a choice for businesses seeking quality and efficiency.


Features Summary

  • Versatile barcode scanning capabilities
    The Zebra DS5502 can read a wide range of barcode types, including Code 39, Code 128, and Data Matrix. This versatility makes it suitable for various applications across different industries.
  • Robust and durable design
    With a drop specification of 1.5 m onto concrete, this scanner is built to endure rigorous use in industrial settings, ensuring longevity and reliability.
  • Enhanced electrical safety features
    The scanner is equipped with 15 kV ESD protection for air discharge and 8 kV for direct and indirect discharge, ensuring safe operation around sensitive electronic devices.
  • Reliable performance in diverse conditions
    Designed to operate effectively in a temperature range of -20°C to 50°C and humidity levels from 5% to 95% RH, the Zebra DS5502 is capable of handling various challenging environments.
  • User-friendly notifications
    Built with a beeper and an LED indicator, the scanner provides clear notifications for successful scans, enhancing user experience and operational efficiency.

Specification Summary

Product Description

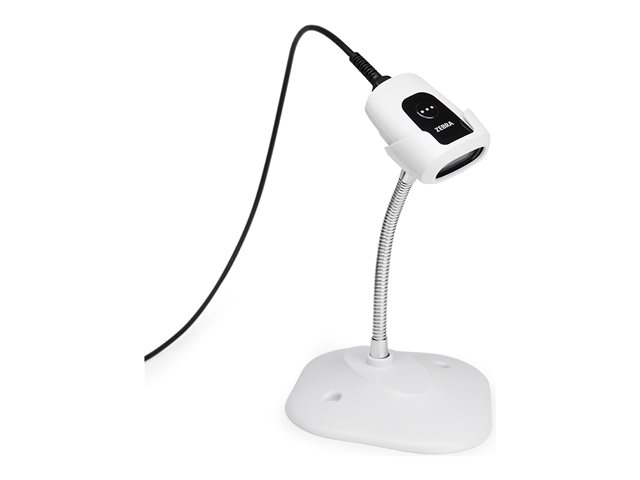

Zebra DS55 Series DS5502 - barcode scanner
Type
Barcode scanner - desktop - USB, RS-232 - decoded
Colour
White
Localisation
Global
Minimum Bar Width
3 mil
Scan Engine Focus Range
Standard Range (SR)
Scan Element Type
2D imager - green LED
Sensor Resolution
1280 x 800
Connectivity Technology
Wired
Power
4.75 - 5.25 V
Dimensions (WxDxH)
5.6 cm x 7.2 cm x 3 cm
Weight
65.2 g

Specifications

General
Type
Barcode scanner - desktop
Colour
White
Localisation
Global
Barcode
Interface Type
USB, RS-232
Minimum Bar Width
3 mil
Scan Engine Focus Range
Standard Range (SR)
Scan Element Type
2D imager - green LED
Sensor Resolution
1280 x 800
Light Source Wave Length
525 nm
Scan Mode
Single-pass
Max Working Distance
91.2 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, IATA 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge)
Expansion / Connectivity
Interfaces
1 x RS-232 - DB-9 ¦ 1 x USB - Type A
Miscellaneous
Included Accessories
3-in-1 mount
Compliant Standards
EN 61000-4-2, EN/IEC 63000:2018, RoHS 2015/863, WEEE 2012/19/EU, REACH 2006/1907/EC, EN 62368-1:2014/AC:2015, ANSI/UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, EN 62368-1:2014/A11:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC62368-1:2014, EN 55032, EN 55035, EN60601-1-2, EN61000-6-2, FCC 47 CFR Part 15 Subpart B, ICES-003, IEC 60601-1-2, IEC/EN 62471, SABS, VCCI, IP54
Power
Power Device
Power adapter
Voltage
4.75 - 5.25 V
Electric Current Required
360 mA (typical)
Dimensions & Weight
Width
5.6 cm
Depth
7.2 cm
Height
3 cm
Weight
65.2 g
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
Drop Specification
1.5 m to concrete
