EAN / GTIN:
0790069477829

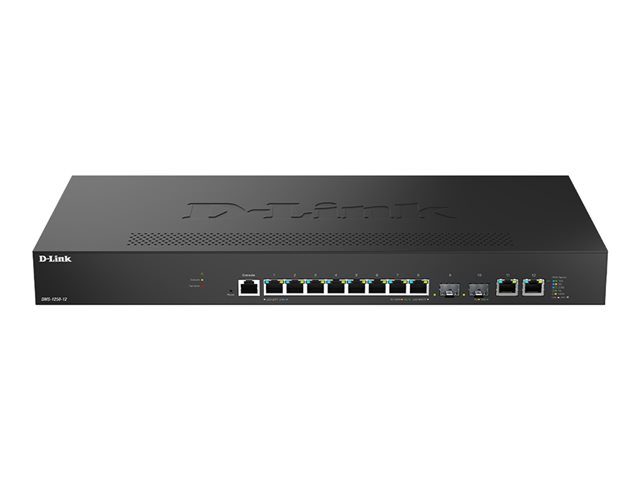

Device Type
Switch - 12 ports - L2+ - smart
Subtype
2.5 Gigabit Ethernet
Ports
8 x 2.5GBase-T + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Performance
Switching capacity: 120 Gbps ¦ Packet forwarding rate: 89.29 Mpps
Capacity
MAC addresses per port: 64 ¦ Static MAC entries: 256 ¦ Packet buffer size: 12 Mbit ¦ IGMP groups: 256 ¦ MLD groups: 256 ¦ Link aggregation groups: 8 ¦ Link aggregation ports per channel: 8 ¦ VLAN groups: 4094 ¦ Queues per port: 8 ¦ IPv4 routes (static): 128 ¦ IPv6 routes (static): 64 ¦ Port security entries: 64 ¦ ARP entries: 64
MAC Address Table Size
16K entries
Routing Protocol
Static IP routing, STP, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Remote Management Protocol
IPv6, IPv4, DHCP, Telnet, TFTP, SNMP, SNMP 2c, SNMP 3, CLI, BOOTP, ICMP, RMON, MIB
Encryption Algorithm
TLS 1.3, TTLS, PEAP, MD5
Authentication Method
RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Features
6KV Surge protection, QoS, port mirroring, IGMP snooping, MLD snooping, 1 fan, ACL support, Flooding Storm Control, Port Security, Voice VLAN, DSCP Marking, auto-uplink (auto MDI/MDI-X), store and forward, loopback detection, LLDP support, LLDP-MED, flow control, EEE, HOL Blocking Prevention, Multicast filtering function, PD-Alive, DDM, WRR, bandwidth control, VLAN support, NDP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS attack prevention, DHCP server, ARP inspection, IPMB, ARP support, AAA, 802.1x authentication, OTP, Cable Diagnostics Function, SNMP trap, TFTP client, Telnet server, firmware upgradable, SNTP support
Compliant Standards
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Status Indicators
Power, link/activity/speed
Interfaces
8 x 10/100/1000/2.5G RJ-45 ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Compliant Standards
CB, UL, BSMI, VCCI Class A, FCC Class A certified, RCM, IC, IEEE 61000-4-5
Localisation
United Kingdom
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% RH
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% RH
Compatibility Information
Designed For
P/N: DEM-310GT, DEM-311GT, DEM-314GT, DEM-410T, DEM-431XT, DEM-432XT, DEM-CB300S, DGS-712
