Startech USB C Multiport Adapter, USB C to 4K 60Hz HDMI 2.0, 2-Port 10Gbps USB Hub, 100W Power Delivery Pass-through, GbE, SD/MicroSD, USB Type-C Mini

Images for illustrative purposes

Startech USB C Multiport Adapter, USB C to 4K 60Hz HDMI 2.0, 2-Port 10Gbps USB Hub, 100W Power Delivery Pass-through, GbE, SD/MicroSD, USB Type-C Mini

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DKT31CSDHPD3) - (MMECD52946)

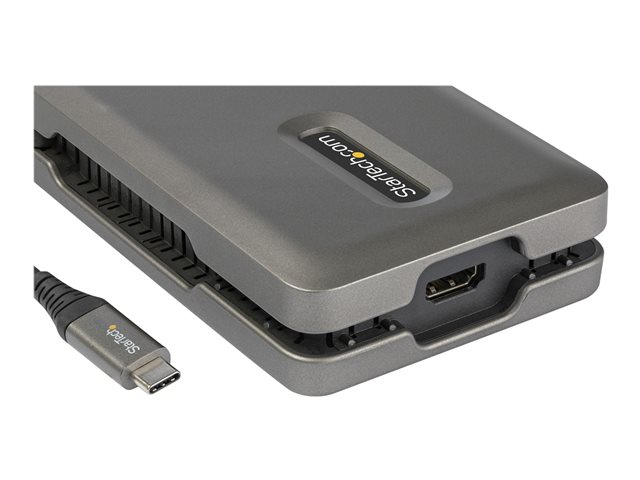

Startech USB C Multiport Adapter, USB C to 4K 60Hz HDMI 2.0, 2-Port 10Gbps USB Hub, 100W Power Delivery Pass-through, GbE, SD/MicroSD, USB Type-C Mini Dock, 10"/25cm Attached Cable - USB C Docking Station - docking station - USB-C - HDMI

Enhance Productivity
Connect Your Devices
Easy Portability
Built-In SD Card Reader
Charge Your Laptop and Peripherals

FREE Delivery on orders over €250

21 Available to Ship
Order within 19Hrs 40Mins for: Delivery (11 Aug or 12 Aug)

RRP ~~€47.59~~

€36.95 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI (HDR) and turns your MacBook Pro, Dell XPS, or other USB-C laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.1 Gen 2 Type-A (10Gbps) ports, an SD card reader and a Gigabit Ethernet port all through one connection to your laptop's USB-C or Thunderbolt 3/4 port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility. USB 3.1 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2x1 (10Gbps). Enhance Productivity The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor. DP Alt Mode Required Maximum Resolution DP 1.2 Alternate Mode Up to 4K 30Hz DP 1.4 Alternate Mode Up to 4K 60Hz

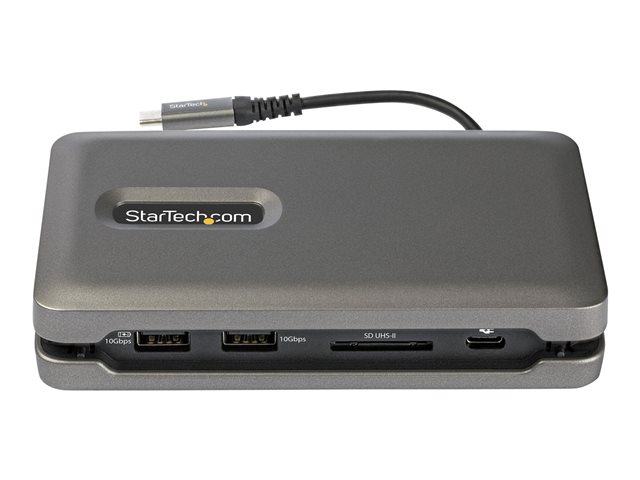

Connect Your Devices The USB-C to USB 3.1 Gen 2 hub gives you two USB-A (10Gbps) ports to connect your USB devices. Easy Portability For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable. Built-In SD Card Reader Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC and SDXC memory cards or microSD (uSD) cards. Charge Your Laptop and Peripherals With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power). Reliable Network Connectivity The Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility : To setup and save custom windows layouts. Mac Address Pass-Through Utility : To improve network security. USB Event Monitoring Utility : To track and log connected USB devices Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Features Summary

Enhance Productivity

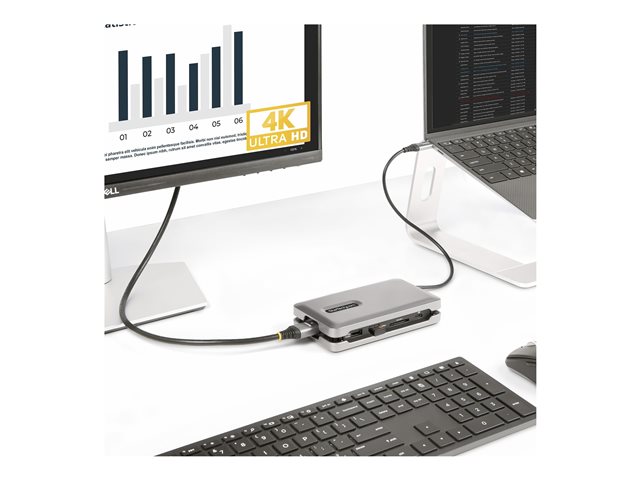

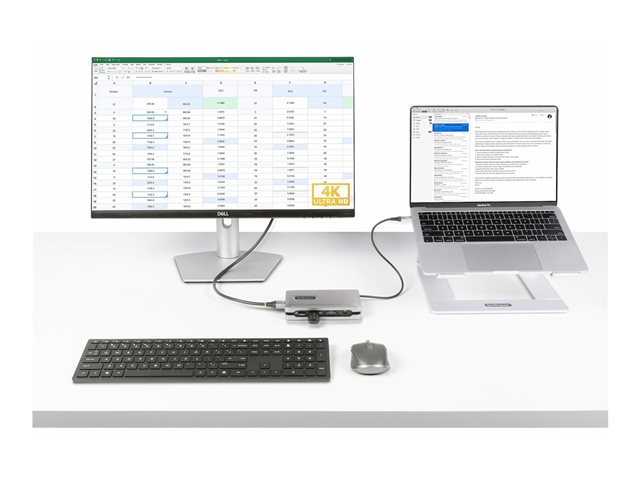

The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you two USB-A (10Gbps) ports to connect your USB devices.
Easy Portability

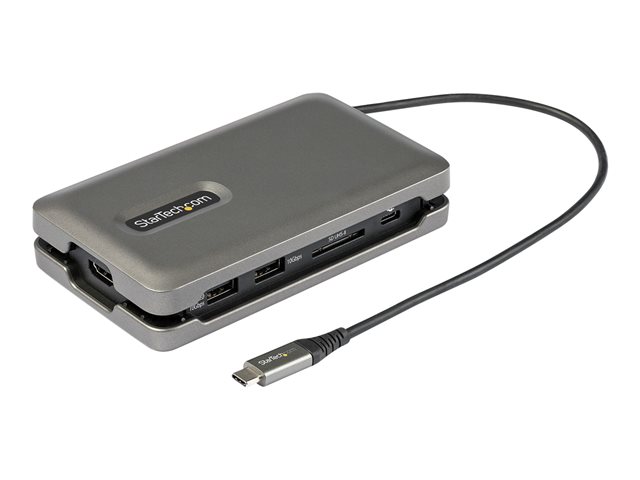

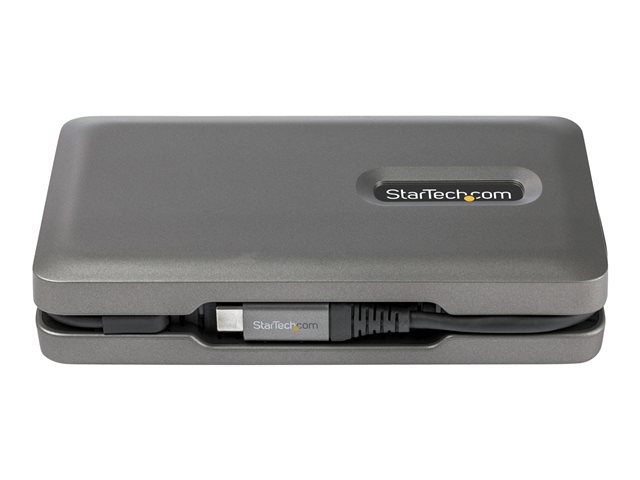

For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC and SDXC memory cards or microSD (uSD) cards.
Charge Your Laptop and Peripherals

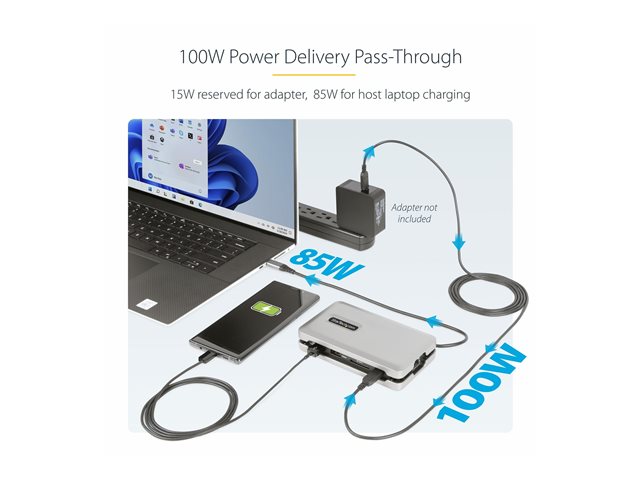

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

USB-C

Video Interfaces

HDMI

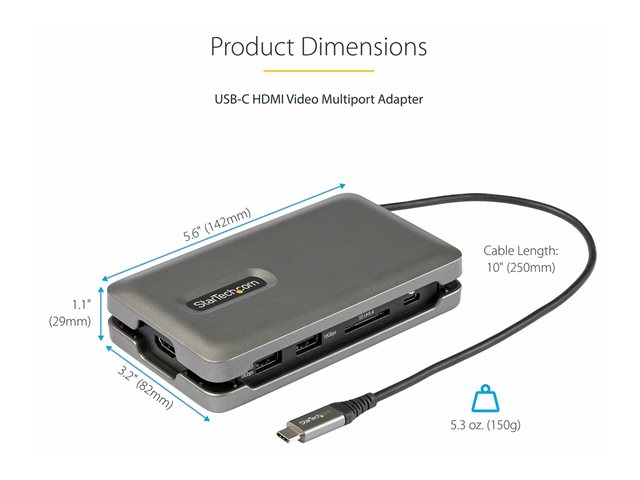

Dimensions (WxDxH)

14.2 cm x 8.2 cm x 2.9 cm

Weight

150 g

Colour

Space grey

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030880749

General

Product Type

Docking station

Width

14.2 cm

Depth

8.2 cm

Height

2.9 cm

Weight

150 g

Enclosure Colour

Space grey

Video

Max Resolution Details

4096 x 2160 - 60 Hz

Networking

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x SD / MMC Memory Card

Interfaces

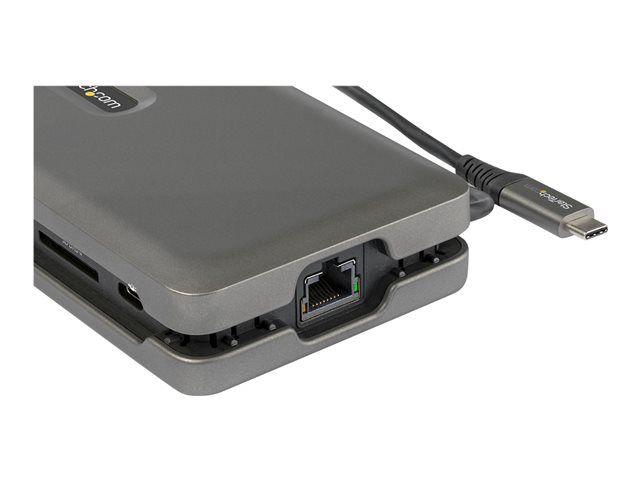

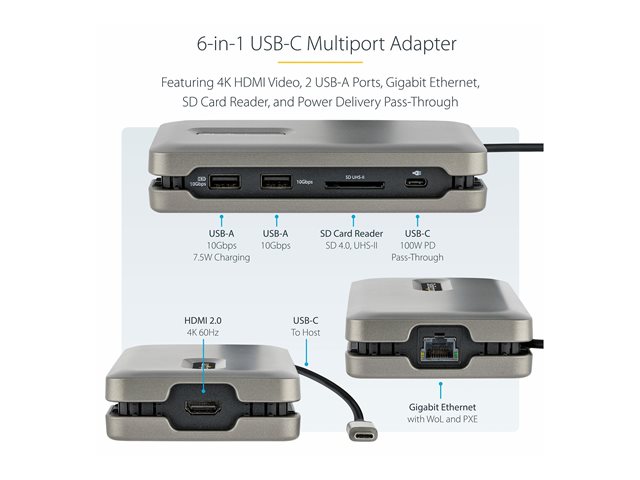

2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.1 Gen 2 with Fast Charging - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (100 W) (power only) - 24 pin USB-C ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

Miscellaneous

Input Device

SD card reader

Cables Included

1 x USB-C cable - integrated - 25 cm

Features

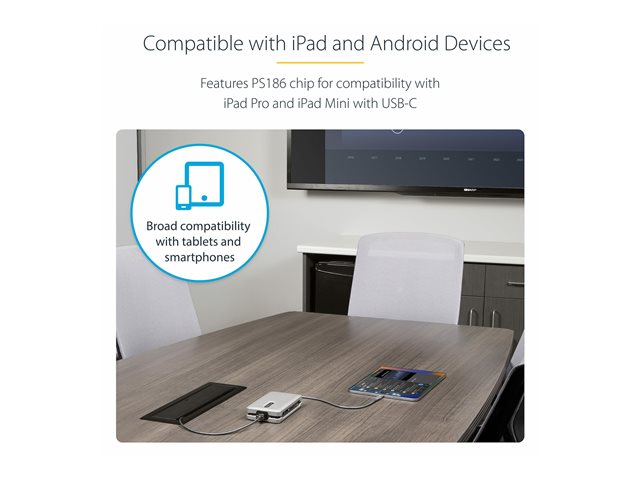

Preboot Execution Environment (PXE) support, full duplex support, DisplayPort Alt Mode, plastic housing, Parade PS186 chipset, HDR10 support

Compliant Standards

FCC, RoHS, WEEE, RCM, DisplayPort 1.2, DisplayPort 1.4, USB Power Delivery 3.0, IEEE 802.3

System Requirements

OS Required

Google Chrome OS, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Android 9.0 (Pie), Apple macOS Catalina 10.15, Apple iPadOS, Android 10, Apple macOS Big Sur 11.0, Android 11, Apple macOS Monterey 12.0, Windows 8 / 10 / 11, Apple macOS Ventura 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

21 cm

Shipping Depth

14.4 cm

Shipping Height

4 cm

Shipping Weight

270 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C
