Startech USB-C Docking Station

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DK31C3MNCRUE) - (ECE7807340)

Startech USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock - 3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio - Works With Chromebook certified - Docking station - USB-C / Thunderbolt 3 / Thunderbolt 4 - 2 x H

Works With Chromebook (WWCB) certified

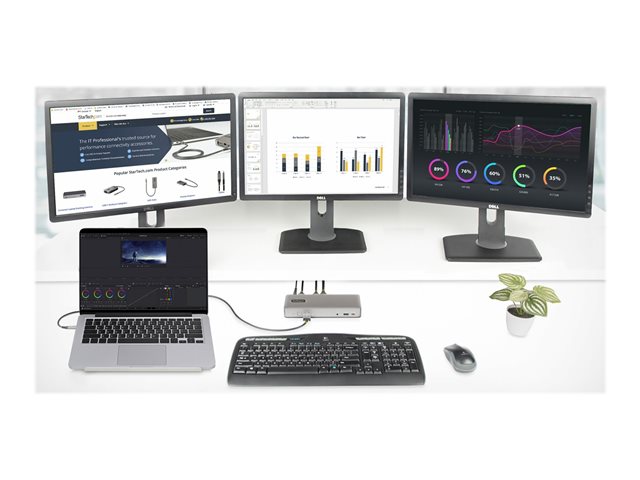

Enhance Productivity with Triple-4K Video
Works With Chromebook Docking Station Features
60W USB Power Delivery 3.0

FREE Delivery on orders over €250

5 Available to Ship
Order within 14Hrs 49Mins for: Delivery (12 Aug or 13 Aug)

€203.01 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Connect a USB Type-C/Thunderbolt 4 enabled Chromebook and a combination of DisplayPort and HDMI monitors to this USB-C Docking Station. This dock supports Chromebooks and Ultra HD 4K monitors. The 3.3ft (1m) USB-C Screw Lock to USB-C Cable ensures a secure connection to the dock and host device.

Specification Summary

Product Description

Startech USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock - 3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio - Works With Chromebook certified - docking station - USB-C / Thunderbolt 3 / Thunderbolt 4 - 2 x HDMI, 2 x DP, USB-C - 1GbE

Product Type

Docking station

Docking Interface

USB-C / Thunderbolt 3 / Thunderbolt 4

Video Interfaces

2 x HDMI, 2 x DP, USB-C

Dimensions (WxDxH)

21 cm x 8 cm x 3.2 cm

Networking

Gigabit Ethernet

Power

Power adapter AC 100-240 V 60 Watt Power Provided

Works With Chromebook

Yes

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030898133

General

Product Type

Docking station

Width

21 cm

Depth

8 cm

Height

3.2 cm

Video

Max Resolution Details

4096 x 2160 - 60 Hz ¦ 5K - 60 Hz (Single Display (DisplayPort 1.4 HBR3 with DSC)) ¦ 4K - 60 Hz (Dual Display) ¦ 4K - 30 Hz (Triple Display)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

USB 2.0, USB 3.1, USB 3.2 Gen 2

Expansion / Connectivity

Interfaces

2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 2 x display / video - DisplayPort output - 20 pin DisplayPort ¦ 1 x USB-C 3.2 Gen 2/DisplayPort - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB 3.2 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm 4-pole ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery 3.0 - 24 pin USB-C

Miscellaneous

Cables Included

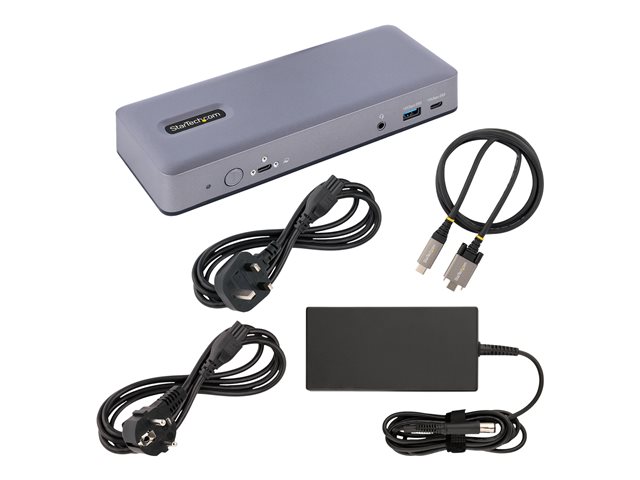

1 x USB-C screw-lock cable - detachable - 1 m

Features

Firmware upgradable, Preboot Execution Environment (PXE) support, mounting holes, 4K Ultra HD, MST (multi-stream transport), DisplayPort Alt Mode, one-touch power button, triple display support, power LED status

Security Slot Type

Kensington nano security slot / Kensington security slot

Works With Chromebook

Yes

Compliant Standards

FCC Part 15, FCC, RoHS, WEEE, RCM, DisplayPort 1.4, USB Power Delivery 3.0, UKCA, Works With Chromebook (WWCB) certified

Power

Power Device

Power adapter

Voltage Required

AC 100-240 V

Power Provided
