Startech USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Eth

Images for illustrative purposes

Startech USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Eth

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DK31C3HDPDUE) - (MMEV935100)

Startech USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Ethernet, Audio, USB 3.1 Gen 2 10Gbps - Multi-Monitor Dock (DK31C3HDPDUE)

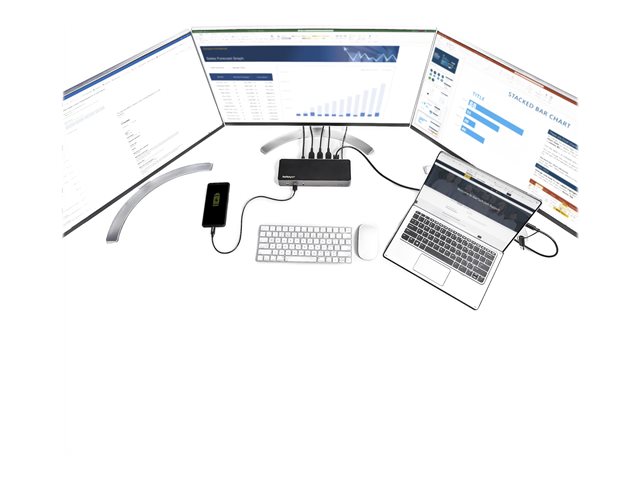

HDMI & DisplayPort for Triple Monitor Outputs
Power & Charge with 85W Power Delivery
Plenty of Downstream USB Ports
Additional Security Features
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

HOT

FREE Delivery on orders over €250

20 Available to Ship
Order within 6Hrs 6Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€271.50~~

€246.28 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This USB-C Gen 2 10Gbps docking station turns your USB-C or Thunderbolt 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery. Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included. HDMI & DisplayPort for Triple Monitor Outputs This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup. Power & Charge with 85W Power Delivery Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD

Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected. Plenty of Downstream USB Ports This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals. 1x USB-C 3.2 Gen 2 (10 Gbps) 1x USB-A 3.2 Gen 2 (10 Gbps) 1x USB-C 3.2 Gen 1 (5 Gbps) 3x USB-A 3.2 Gen 1 (5 Gbps)

Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port. Additional Security Features This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock. For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need. Connected Device Transparency with the StarTech.com MAC Address Changer Utility The DK31C3HDPDUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat , or e-mail .

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

USB-C

Video Interfaces

3 x HDMI, 3 x DP

Dimensions (WxDxH)

8.4 cm x 23.3 cm x 3.7 cm

Weight

365 g

Colour

Grey, black

Networking

Gigabit Ethernet

Power

Power adapter AC 100/240 V 85 Watt Power Provided

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030881944

General

Product Type

Docking station

Width

8.4 cm

Depth

23.3 cm

Height

3.7 cm

Weight

365 g

Enclosure Colour

Grey, black

Video

Max Resolution Details

4096 x 2160 - 60 Hz

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

Interfaces

3 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB-C 3.1 Gen 2 - 24 pin USB-C ¦ 1 x USB-C 3.1 Gen 1 (data only) - 10 pin USB-C ¦ 3 x display / video - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 3 x display / video - 20 pin DisplayPort ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm ¦ 1 x USB-C 3.0 - 24 pin USB-C ¦ 1 x SuperSpeed USB 3.0 - 9 pin USB Type A

Miscellaneous

Cables Included

1 x USB-C/USB-A screw-lock cable - external - 1 m

Features

Security lock slot (cable lock sold separately), USB pass-through connector, UASP transfer protocol, Preboot Execution Environment (PXE) support, full duplex support, up to 3 monitors support, HDR support

Security Slot Type

Kensington security slot

Compliant Standards

FCC, RoHS, USB Battery Charging Specification Rev. 1.2, DisplayPort 1.2, DisplayPort 1.4, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0

Power

Power Device

Power adapter

Voltage Required

AC 100/240 V

Power Provided

85 Watt

System Requirements

OS Required

Google Chrome OS, Apple MacOS X 10.6 - 10.12, Ubuntu 18.04, Ubuntu 20.04, Apple macOS 10.14 - 11.0, Apple macOS 12.0, Windows 8 / 8.1 / 10 / 11, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

9 cm

Shipping Depth

25 cm

Shipping Height

17.1 cm

Shipping Weight

1.7 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C
