Startech USB C Dock, Dual Monitor HDMI & DisplayPo

Images Manuals

Startech USB C Dock, Dual Monitor HDMI & DisplayPort 4K 30Hz, USB Type-C Laptop Docking Station 60W Power Delivery (PD), SD, 4-port USB-A 3.0 Hub, GbE

Images for illustrative purposes

Startech USB C Dock, Dual Monitor HDMI & DisplayPort 4K 30Hz, USB Type-C Laptop Docking Station 60W Power Delivery (PD), SD, 4-port USB-A 3.0 Hub, GbE

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DK30CHDPPDUE) - (MMEV934357)

Startech USB C Dock, Dual Monitor HDMI & DisplayPort 4K 30Hz, USB Type-C Laptop Docking Station 60W Power Delivery (PD), SD, 4-port USB-A 3.0 Hub, GbE, Audio, Thunderbolt 3 Compatible - USB 3.1 Gen 1 Dock (DK30CHDPPDUE)

Create a dual-4K video workstation
SD card reader
Ample connections
Universal support
Connected Device Transparency with the StarTech.com MAC Address Changer Utility

FREE Delivery on orders over €250

13 Available to Ship
Order within 10Hrs 55Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€192.38~~

€171.84 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This USB C dock transforms your MacBook or Windows laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors.

The USB C docking station features USB Power Delivery 2.0 (60W), for charging your laptop as you work. It's the perfect companion for your MacBook Pro or other Thunderbolt 3 equipped laptop.

Create a dual-4K video workstation

The dual monitor docking station expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors.

With the universal docking station, you can connect 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz and 1x 4K HDMI display at 3840 x 2160 resolution @ 30Hz.

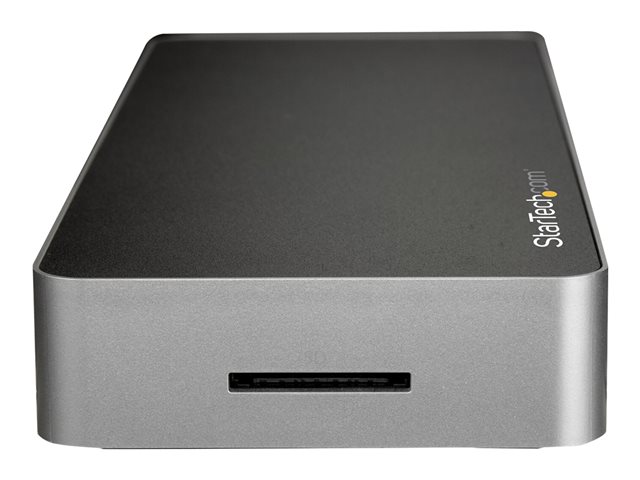

SD Card Reader

The USB C to USB dock provides direct access to your SD memory cards or microSD cards (with adapter). The SD card reader slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.

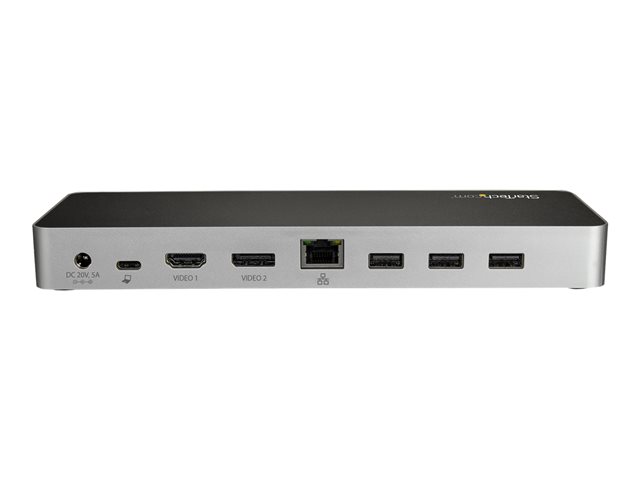

Ample Connections

The USB Type C dock and port replicator provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and a combined 3.5mm audio and microphone port.

The USB 3.1 Type C dock is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

USB-C

Video Interfaces

HDMI, DP

Dimensions (WxDxH)

8 cm x 22 cm x 2.5 cm

Weight

385 g

Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter AC 120/230 V 60 Watt Power Provided

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030872683

General

Product Type

Docking station

Width

8 cm

Depth

22 cm

Height

2.5 cm

Weight

385 g

Enclosure Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0, USB 3.1

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x SD / MMC Memory Card

Interfaces

1 x USB-C - input - 24 pin USB-C ¦ 4 x SuperSpeed USB 3.0 - output - 9 pin USB Type A ¦ 1 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x display / video - DisplayPort output - 20 pin DisplayPort ¦ 1 x audio - output - mini-phone 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

Compatible Slots

1 x SD / MMC Memory Card

Miscellaneous

Cables Included

1 x USB-C cable - external

Features

Dual monitor support, UASP transfer protocol, 1 USB 3.0 fast charging port, DisplayLink DL-5700 chipset, Genesys Logic GL3515 chipset, VLI VL813 chipset, Texas Instruments TPS65983 chipset

Power

Power Device

Power adapter

Voltage Required

AC 120/230 V

Power Provided

60 Watt

System Requirements

OS Required

Apple MacOS X 10.9 - 10.12, Google Chrome OS 55 or later, Ubuntu 18.04, Ubuntu 20.04, Apple macOS 11.0, Apple macOS 10.14 - 10.15, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Weight

1.4 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

60 °C
