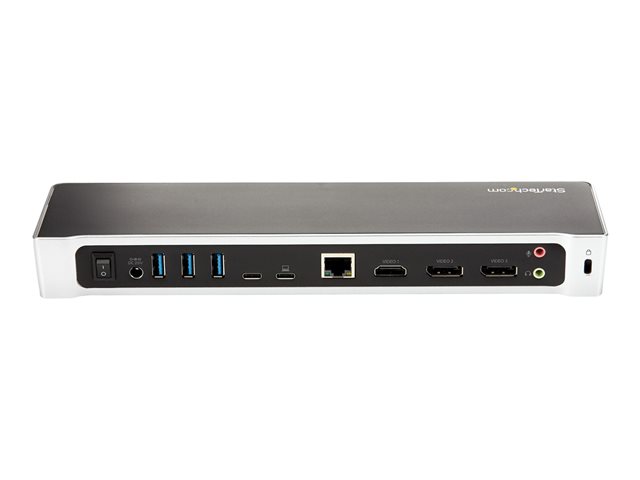

Startech 4K USB-C Dock

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DK30CH2DPPDU) - (MMEV934132)

Startech 4K USB-C Dock - Triple Monitor - Mac & Windows - 60W USB PD (DK30CH2DPPDU) - docking station - USB-C - HDMI, 2 x DP - 1GbE

Enhance Productivity
Powerful Connections
60W Power Delivery

HOT

FREE Delivery on orders over €250

27 Available to Ship
Order within 3Hrs 59Mins for: Delivery (10 Aug or 11 Aug)

RRP ~~€126.94~~

€107.28 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

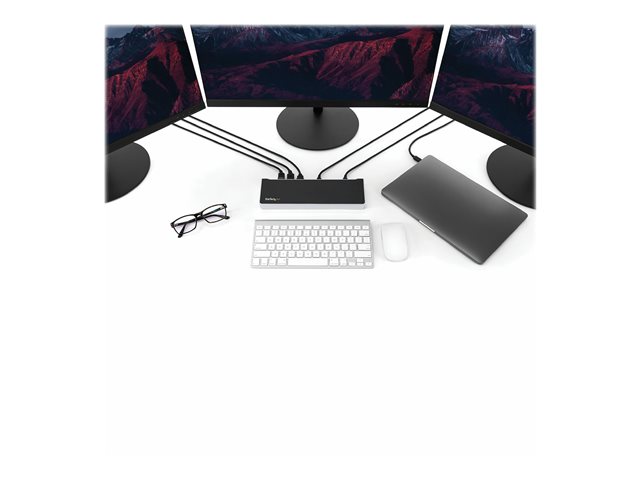

This TAA compliant USB-C dock for Mac and Windows laptops takes productivity to a whole new level, with support for triple 4K monitors, a first in the market. The 4K USB C Dock provides 60W charging power and 5x USB 3.0 (3.1) ports to connect your peripheral devices. It's ideal for Dell XPS or other USB-C enabled laptops. Enhance Productivity The 4K USB-C Dock lets you create a three-monitor Ultra HD workstation. Connect: - 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and - 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz For high-resolution applications, the universal laptop docking station connects to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display. Powerful Connections This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports. 60W Power Delivery Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop and power your peripherals with its 120W power adapter. The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specification Summary

Product Description

Startech 4K USB-C Dock - Triple Monitor - Mac & Windows - 60W USB PD (DK30CH2DPPDU) - docking station - USB-C - HDMI, 2 x DP - 1GbE

Product Type

Docking station

Docking Interface

USB-C

Video Interfaces

HDMI, 2 x DP

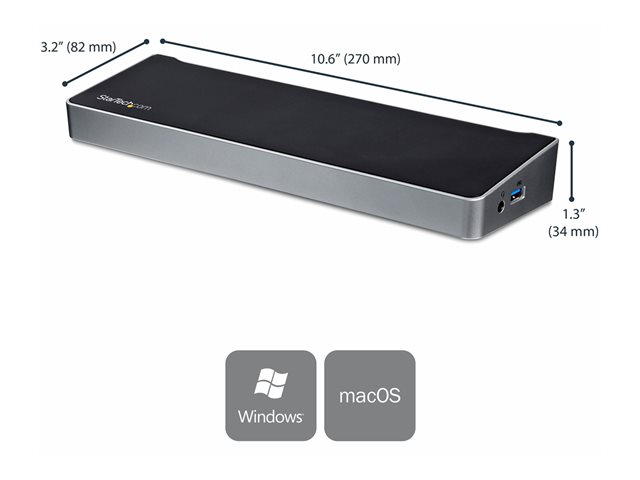

Dimensions (WxDxH)

8.2 cm x 27 cm x 3.4 cm

Weight

385 g

Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter AC 120/230 V 60 Watt Power Provided

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030871143

General

Product Type

Docking station

Width

8.2 cm

Depth

27 cm

Height

3.4 cm

Weight

385 g

Enclosure Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0

Expansion / Connectivity

Interfaces

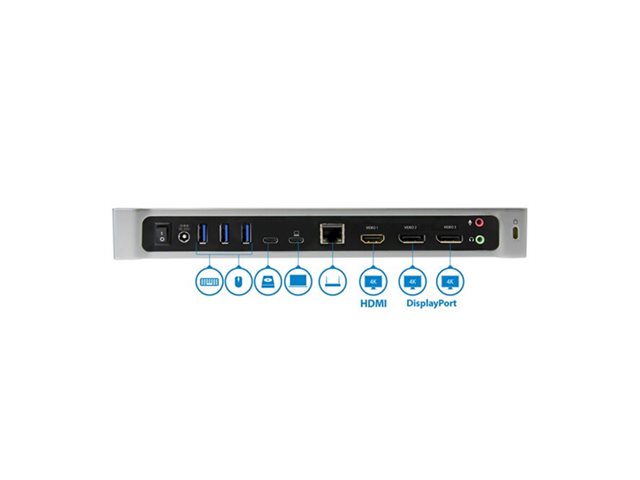

2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphones - mini-phone 3.5 mm ¦ 1 x microphone - mini-phone 3.5 mm ¦ 1 x headset - mini-phone 3.5 mm 4-pole

Miscellaneous

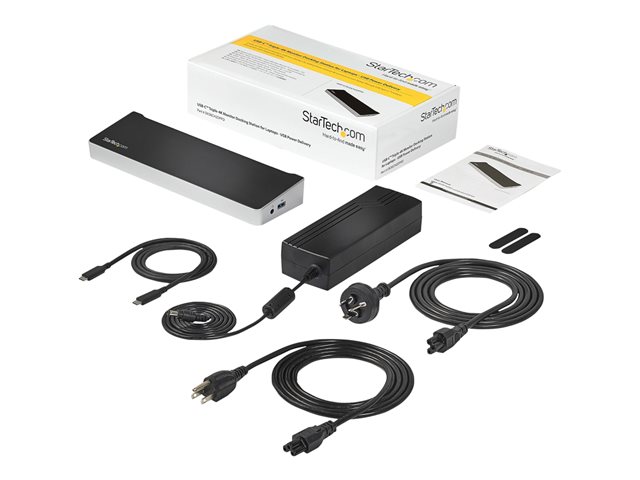

Cables Included

1 x USB-C cable - external

Features

Security lock slot (cable lock sold separately), 1 USB 3.0 fast charging port, full duplex support

Compliant Standards

FCC, RoHS, WEEE, RCM, USB Battery Charging Specification Rev. 1.2, USB Power Delivery 2.0, DisplayPort 1.2, UASP (USB Attached SCSI Protocol)

Power

Power Device

Power adapter

Voltage Required

AC 120/230 V

Power Provided

60 Watt

System Requirements

OS Required

Apple MacOS X 10.9 - 10.12, Google Chrome OS 55 or later, Ubuntu 18.04, Ubuntu 20.04, Apple macOS 11.0, Apple macOS 10.14 - 10.15, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

60 °C
